Chapter 2: Jumpers and Connectors

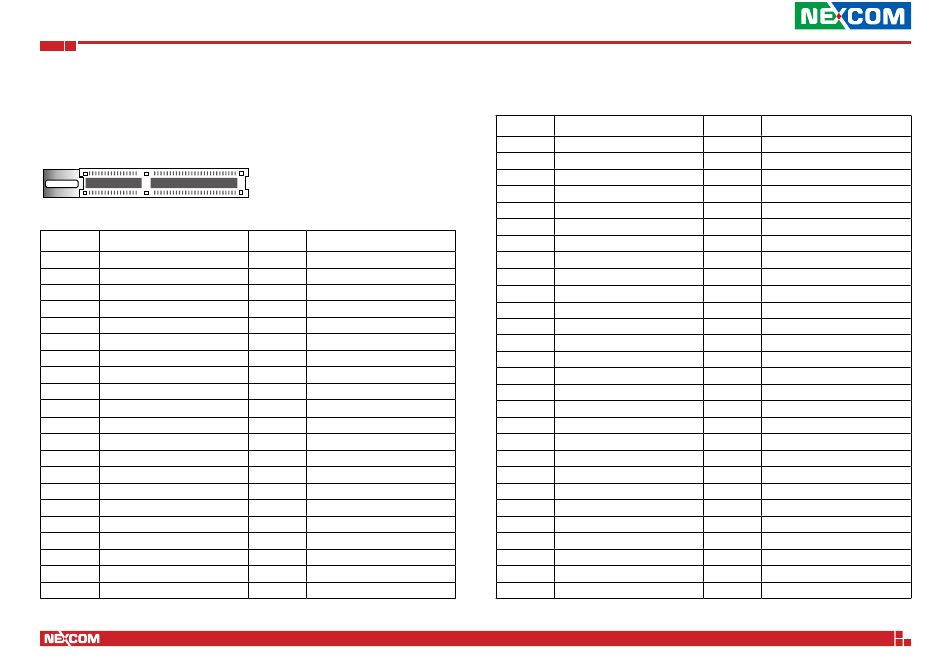

PCIe x8 Slot (For Non-standard PCIe)

Connector type: PCIe x8 Slot
Connector location: PCIE2
A1 A11 A12 A49
B1 B11 B12 B49
Pin Definition
A1 GND
A2 12V
A3 12V
A4 GND
A5 PCIExSATA Detect
A6 NC
A7 NC
A8 NC
A9 3.3V
A10 3.3V
A11 reset
A12 GND
A13 CLK
A14 CLK
A15 GND
A16 RXP
A17 RXN
A18 GND
A19 NC
A20 GND
A21 RXP
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
B1 12V
B2 12V
B3 12V
B4 GND
B5 SMBCLK
B6 SMBDAT
B7 GND
B8 3.3V
B9 NC
B10 3.3V AUX
B11 wake
B12 NC
B13 GND
B14 TXP
B15 TXN
B16 GND
B17 NC
B18 GND
B19 TXP
B20 TXN
B21 GND
Pin Definition
A22 RXN
A23 GND
A24 GND
A25 RXP
A26 RXN
A27 GND
A28 GND
A29 RXP
A30 RXN
A31 GND
A32 NC
A33 NC
A34 GND
A35 RXP
A36 RXN
A37 GND
A38 GND
A39 RXP
A40 RXN
A41 GND
A42 GND
A43 RXP
A44 RXN
A45 GND
A46 GND
A47 RXP
A48 RXN
A49 GND
19
Pin Definition
B22 GND
B23 TXP
B24 TXN
B25 GND
B26 GND
B27 TXP
B28 TXN
B29 GND
B30 NC
B31 NC
B32 GND
B33 TXP
B34 TXN
B35 GND
B36 GND
B37 TXP
B38 TXN
B39 GND
B40 GND
B41 TXP
B42 TXN
B43 GND
B44 GND
B45 TXP
B46 TXN
B47 GND
B48 NC
B49 GND
