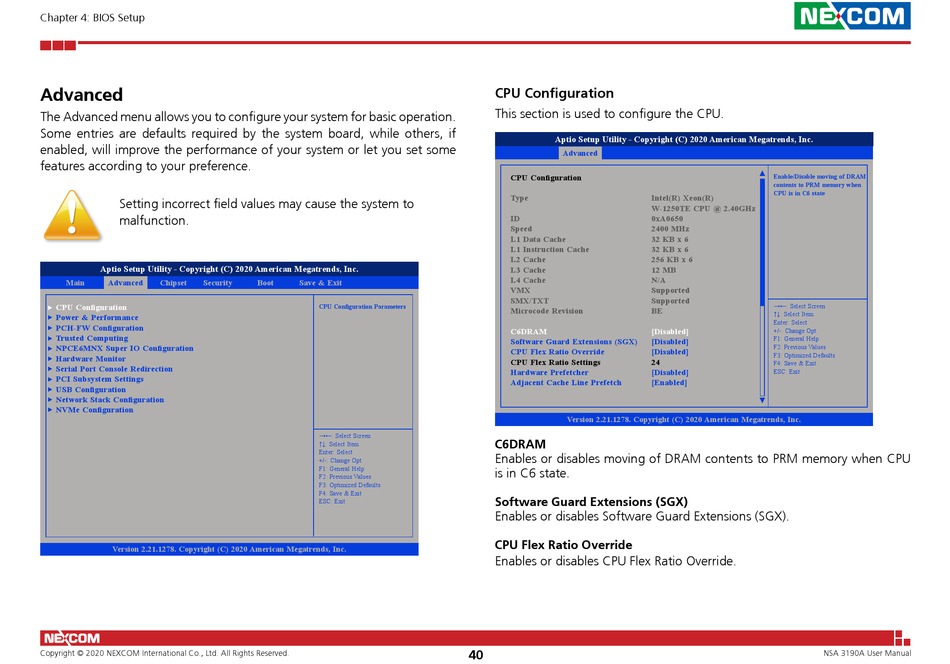

Chapter 4: BIOS Setup
Advanced
The Advanced menu allows you to configure your system for basic operation.
Some entries are defaults required by the system board, while others, if
enabled, will improve the performance of your system or let you set some
features according to your preference.
Setting incorrect field values may cause the system to
malfunction.
Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc.
Main
Advanced
Chipset
Security
CPU Configuration
Power & Performance
PCH-FW Configuration
Trusted Computing
NPCE6MNX Super IO Configuration
Hardware Monitor
Serial Port Console Redirection
PCI Subsystem Settings
USB Configuration
Network Stack Configuration
NVMe Configuration
Version 2.21.1278. Copyright (C) 2020 American Megatrends, Inc.
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Boot
Save & Exit
CPU Configuration Parameters
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
CPU Configuration
This section is used to configure the CPU.
Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc.
Advanced
CPU Configuration
Type
ID
Speed
L1 Data Cache
L1 Instruction Cache
L2 Cache
L3 Cache
L4 Cache
VMX
SMX/TXT
Microcode Revision
C6DRAM
Software Guard Extensions (SGX)
CPU Flex Ratio Override
CPU Flex Ratio Settings
Hardware Prefetcher
Adjacent Cache Line Prefetch
Version 2.21.1278. Copyright (C) 2020 American Megatrends, Inc.
C6DRAM
Enables or disables moving of DRAM contents to PRM memory when CPU
is in C6 state.
Software Guard Extensions (SGX)
Enables or disables Software Guard Extensions (SGX).
CPU Flex Ratio Override
Enables or disables CPU Flex Ratio Override.
40
▲
Enable/Disable moving of DRAM
contents to PRM memory when
CPU is in C6 state
Intel(R) Xeon(R)
W-1250TE CPU @ 2.40GHz
0xA0650
2400 MHz
32 KB x 6
32 KB x 6
256 KB x 6
12 MB
N/A
Supported
Supported
→←: Select Screen
BE
↑↓: Select Item
Enter: Select
[Disabled]
+/-: Change Opt.
F1: General Help
[Disabled]
F2: Previous Values
[Disabled]
F3: Optimized Defaults
24
F4: Save & Exit
[Disabled]
ESC: Exit
[Enabled]
▼
NSA 3190A User Manual
