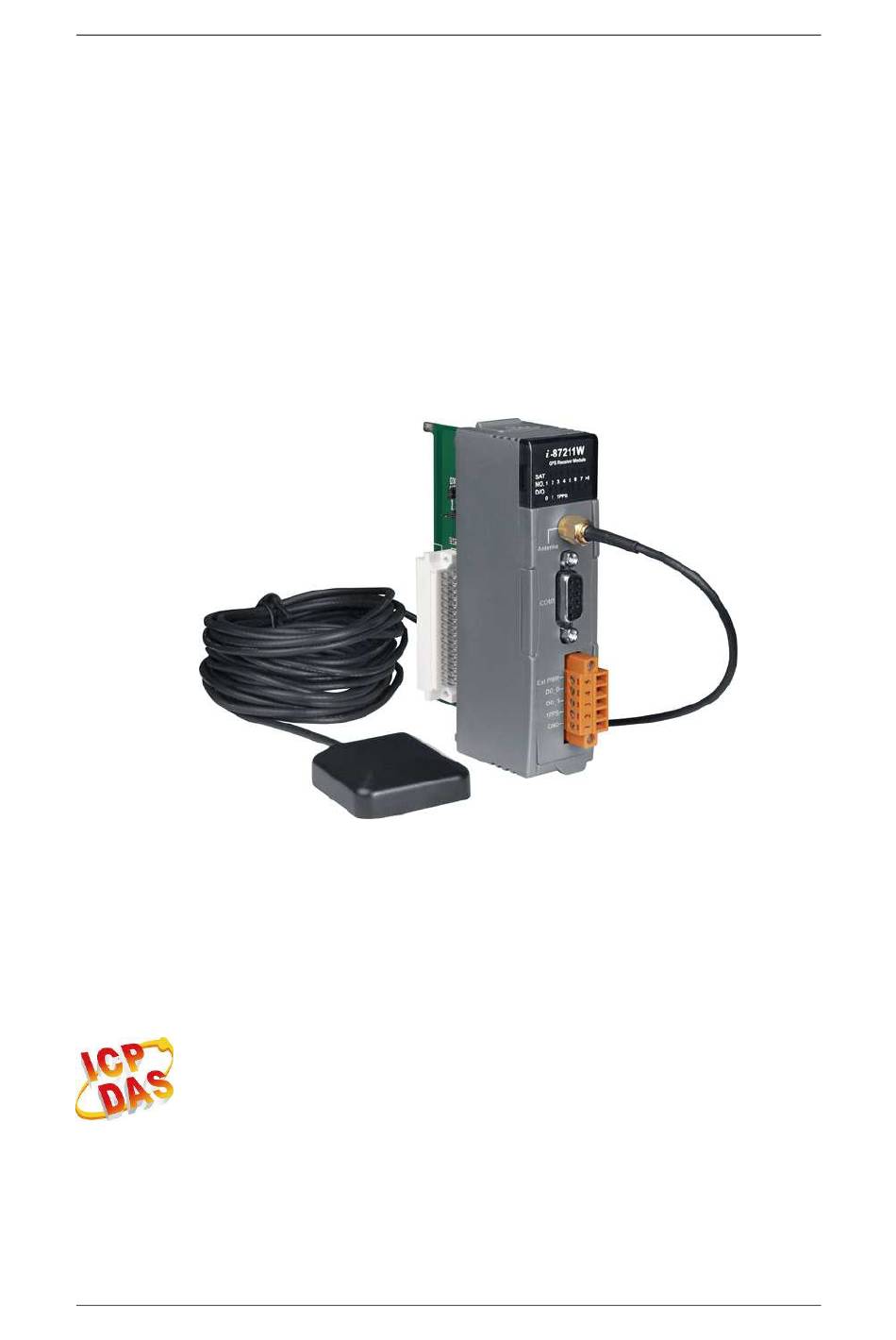

I-87211W User Manual
I-87211W
User Manual v2.5
High Quality, Industrial Data Acquisition, and Control Products
1/93 I-87211W User Manual V2.5, Oct. 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I-87211W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP DAS USA I-87211W

Summary of Contents for ICP DAS USA I-87211W

  • Page 1 I-87211W User Manual I-87211W User Manual v2.5 High Quality, Industrial Data Acquisition, and Control Products 1/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 2 Copyright 2010 by ICP DAS CO., LTD. All rights reserved worldwide. Trademark The names used for identification only may be registered trademarks of their respective companies. Version Date Author Description 2010/2/1 Anold Release version 2/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 3: Table Of Contents

    #AA00(Data)....................41 #AA0A(Data)...................43 #AA1cDD ....................45 #AAAcDD ....................47 $AA2......................49 2.10 $AA4......................51 2.11 $AA5......................53 2.12 $AA6......................55 2.13 $AAC .......................57 2.14 $AAD.......................59 2.15 $AAF......................61 2.16 $AAM ......................62 2.17 $AALS .....................63 2.18 @AA ......................65 2.19 @AA(Data)....................67 2.20 ~AAO(Name)...................69 3/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 4 ~AAD.......................71 2.22 ~AADVV ....................73 2.23 ~AAI ......................75 2.24 ~AATnn ....................77 2.25 ~** ......................80 2.26 ~AA0......................81 2.27 ~AA1......................83 2.28 ~AA2 .......................85 2.29 ~AA3EVV ....................87 2.30 ~AA4V ....................89 2.31 ~AA5V ....................91 Appendix1 Dual Watchdog Operation.................93 4/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 5: Introduction

    Except for the GPS data, I-87211W includes a 2-channel DO and a 1-channel PPS for user applications. The Pulse Per Second (PPS) is an electrical signal that very precisely indicates the start of a second, and can be used for precise timekeeping and time measurement.
  • Page 6 Precise timekeeping and time measurement T T T T ransfer Passenger’s Image ransfer Passenger’s Image ransfer Passenger’s Image ransfer Passenger’s Image Administrative Administrative Administrative Administrative Center Center Center Center Passenger Passenger Passenger Passenger 6/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 7 I-87211W User Manual Time Calibration for PACs 7/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 8: Features

    ICP DAS provides a series of PAC (Programmable Automation Controller) units that are especially suited for industrial control systems in harsh environments. The I-87211W can be inserted into these PACs for applications such as vehicle navigation, Marine navigation and Satellite time correction system, etc. For detailed information regarding PACs, please visit: http://www.icpdas.com/products/Products-list.htm#P1...
  • Page 9 HMI application, a USB port to connect with a Keyboard, Mouse, a USB device for storage or touch monitor, and micro SD/microSDHC memory for storage of programs and data. Linux OS 9/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 10 OS: Windows CE 5.0, MiniOS7 ViewPAC The iPAC-8000 is a new family of compact, modular, intelligent and rugged, distributed I/O (input/output) systems, designed for data acquisition and control in manufacturing, research and education. OS: MiniOS7 iPAC 10/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 11 Remote I/O Expansion Units ICP DAS provide remote I/O Expansion Units to enable users to extend I/O applications using RS-485, Ethernet or USB interfaces. The I-87211W can also be installed in these units. For more details, please visit: http://www.icpdas.com/products/io_expansion_unit/IO_Expan sion_Unit.htm...
  • Page 12 This unit can be used to expand I-87K series I/O ET-87Pn modules via an Ethernet interface. It is equipped with a single power module, 2 Ethernet ports, 1 CPU module and several I/O slots. 12/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 13: Package List

    RS-232 Cable (CA-0915) Product CD Quick Start Guide Please check that the items above are contained in the package after receiving your I-87211W. If there are any problems, contact the supplier of the module. 13/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 14: Hardware

    I-87211W User Manual Hardware 14/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 15: Specifications

    Power Protection Power reverse polarity protection Frame Ground for ESD Protection Power Consumption 0.6 W Mechanical Dimensions (W x H x D) 30 mm x 102 mm x 115 mm Weight 200 g 15/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 16 -40° C ~ +80° C Humidity 5 ~ 95% RH, non-condensing I/O specifications Digital Output Output Channel 2 (Sink) Output Type Non-isolated Open Collector Output Current 100 mA per channel Load Voltage +10 VC ~ +30 VC 16/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 17: Block Diagram For The I-87211W

    I-87211W User Manual Block Diagram for the I-87211W 17/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 18: Pin Assignments And Led Indicators

    Digital Output 0 is active. (green) Digital Output 0 is off. Digital Output 1 is active. (green) Digital Output 1 is off. 1 PPS The PPS is on. (green) The PPS is off. 18/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 19: Operation Modes

    I-87211W in INIT or normal modes. 2. When plugging the I-87211W module into a PAC, the module is always in INIT mode. A description of each mode and a diagram are below.
  • Page 20 I-87211W User Manual 20/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 21: Wiring Recommendations

    Use 26-12 AWG wires for signal connections. Strip the wire to a length of 7±0.5mm. Use a crimp terminal for wiring. Avoid high-voltage cables and power equipment as much as possible. Wiring DO wiring PPS wiring 21/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 22 PPS functionality can be combined with another time source that provides the full date and time in order to accurately and precisely ascertain the correct time. 22/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 23: Dimensions

    I-87211W User Manual Dimensions 23/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 24: Installation

    I-87211W User Manual Installation Use the figures below as a guide to installing your I-87211W in a PAC. Note: If the I-87211W is not able to receive GPS signals, check the position of the antenna or install the GPS antenna in an open environment.

  • Page 25: Configuration Table

    Baud Rate Setting (CC) Code Baud 1200 2400 4800 9600 19200 38400 57600 115200 Rate Type Code Setting (TT) Note: The Type Code is fixed at 40. Data Format Setting (FF) Description Checksum Disabled Enabled 25/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 26: Technical Support

    I-87211W User Manual Technical Support Should you encounter any problems while using your I-87211W module, and are unable to find help in this manual or on our website, please contact ICP DAS Product Support. Email: service@icpdas.com Website: http://www.icpdas.com/sevices/support.htm When requesting technical support, be prepared to provide the following information about your system: 1.

  • Page 27: Dcon Protocol

    [CHKSUM] Character Address CHKSUM A 2-character checksum which is present when the checksum setting is enabled. See Sections 1.10 (Data Format Setting) and 2.1 for details. End of command character, carriage return (0x0D) 27/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 28 1. Sum of the string = “!”+”0”+”1”+”2”+”0”+”0”+”6”+”0”+”0” = 21h+30h+31h+32h+30h+30h+36h+30h+30h = 1AAh 2. Therefore the checksum is AAh, and so CHKSUM = “AA” 3. The response string with the checksum = !01200600AA(CR) Note: All characters should be in upper case. 28/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 29 Save the current date $AAD 2.14 temporarily Reads the Firmware $AAF !AA(Data) 2.15 Version $AAM !AA(Data) Reads the Module Name 2.16 Reads the Latched DO $AALS !AA(Data) 2.17 Status Reads the Digital I/O >(Data) 2.18 Status 29/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 30 2.27 ~AA1 Resets the Status 2.28 ~AA2 !AAVV Reads the Timeout Settings 2.29 ~AA3EVV Sets the Timeout Settings Reads the Power On/Safe 2.30 ~AA4V !AA(Data) Value Sets the Power On/Safe 2.31 ~AA5V Value 30/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 31: Aannttccff

    The BaudRate is not set when the modules is not in Init mode Response: Valid Command: !AA[CHKSUM](CR) Invalid Command: ?AA[CHKSUM](CR) Delimiter for a valid command Delimiter for an invalid command Address of the module in hexadecimal format (00 to FF) 31/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 32 The module returns an invalid command because it is not in INIT* mode. Command: %0905400940 Response: !05 Changes the Baud Rate of module 01 to 57600bps and the module returns a valid response. 32/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 33 Send command ~AATnn (Refer to Section 2.27) II. Send command ~AAI (Refer to Section 2.26_ III. Send command %AANNTTCCFF If these commands are valid, the Baud Rate, checksum or others will take effect after the module responds with “!AA”. 33/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 34 Sends a command to read the synchronized data. The status byte of the response is 1, which means that it is the first time the synchronized data has been read after the previous #** command. Digital Output: 0x06 34/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 35 The status byte of the response is 0, which means that it is NOT the first time the synchronized data has been read after the previous #** command. Digital Output: 0x06。 Related Commands: Refer to Section 2.10 $AA4 35/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 36 (00 to FF) TTTTTT.TTT UTC Time LLLL.LLLL Latitude N or S (North or South) NNNNN.NNNN Longitude E or W (East or West) P=Position Fix Indicator 0=No fix, invalid 1=GPS SPS Mode, fix valid 36/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 37 Sends a command to read the following information and the module replies with a valid response. UTC Time: 035035.000 Latitude, Longitude: 2451.7056, N,12100.9903, E Position Fix Indicator: 1 Satellites in view: 9 Related Commands: Section2.4 #AAN 37/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 38: Aan

    N=1： !AATTTTTT.TTT N=2： !AALLLL.LLLL,C,NNNNN.NNNN,C N=3： !AAS N=4： !AADDMMYY Delimiter for a valid command Delimiter for an invalid command Address of the module in hexadecimal format (00 to FF) TTTTTT.TTT UTC time LLLL.LLLL Latitude 38/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 39 Response: !012451.7057,N,12100.9904,E Reads the Latitude and longitude for module 01. Latitude, Longitude: 2451.7056,N,12100.9903,E。 Command: #013 Response: !019 Reads the number of satellites in view for module 01 and indicates that there are 9. 39/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 40 Command: #014 Response: !01280308 Indicates that the current date is 3/28/2008. The $AAD command needs to be sent to update the date before using this command. Related Commands: Section 2.3 #AA, Section 2.13 $AAD 40/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 41: Aa00(Data)

    Valid Command: >[CHKSUM](CR) Invalid Command: ?AA[CHKSUM](CR) Ignored Command: ![CHKSUM](CR) > Delimiter for a valid command Delimiter for an invalid command Delimiter for an ignored command: If a Host WatchDog Timeout occurs, the module 41/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 42 A Host WatchDog Timeout was occurred and so the DO output command is ignored. Related Commands: Section 2.6 #AA0A (Data) Section 2.12 $AA6 Section 2.7 #AA1cDD Section 2.18 @AA Section 2.8 #AAAcDD Section 2.19 @AA(Data) 42/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 43: Aa0A(Data)

    > Delimiter for a valid command Delimiter for an invalid command Delimiter for an ignored command: If a Host WatchDog Timeout occurs, the module will reset to safe mode and the DO output 43/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 44 A Host WatchDog Timeout has occurred and so the DO output command is ignored. Related Commands: Section 2.5 #AA00(Data) Section 2.12 $AA6 Section 2.7 #AA1cDD Section 2.18 @AA Section 2.8 #AAAcDD Section 2.19 @AA(Data) 44/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 45: Aa1Cdd

    > Delimiter for a valid command Delimiter for an invalid command Delimiter for an ignored command: If a Host WatchDog Timeout occurs, the module will reset to safe mode and the DO output 45/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 46 A Host WatchDog Timeout has occurred and so the DO output command is ignored. Related Commands: Section 2.5 #AA00(Data) Section 2.12 $AA6 Section 2.6 #AA0A(Data) Section 2.18 @AA Section 2.8 #AAAcDD Section 2.19 @AA(Data) 46/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 47: Aaacdd

    > Delimiter for a valid command Delimiter for an invalid command Delimiter for an ignored command: If a Host WatchDog Timeout occurs, the module will reset to safe mode and the DO output 47/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 48 A Host WatchDog Timeout has occurred and so the DO output command is ignored. Related Commands: Section 2.5 #AA00(Data) Section 2.12 $AA6 Section 2.6 #AA0A(Data) Section 2.18 @AA Section 2.7 #AA1cDD Section 2.19 @AA(Data) 48/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 49 40 indicates a DO Module The BaudRate code for the module. See Section 1.9 for details Setting for the checksum and the direction of the counter update for the module. See Section 1.9 for details 49/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 50 Reads the configuration of module 01. BaudRate: 115200, Checksum: Disabled. Command: $052 Response: !05400940 Reads the configuration of module 05. BaudRate: 57600, Checksum: Enabled. Related Commands: Section 1.9 Configuration Table Section 2.1 %AANNTTCCFF 50/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 51 Address of the module in hexadecimal format (00 to FF) Status of the synchronized data 1: First read 0: Not the first read (Data) Synchronized data. See Section 1.9 for details of the data format 51/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 52 Reads the synchronized data for module 01. The module returns the synchronized data and sets the status byte to 0 to indicate that the synchronized data has been read. The Digital Output status is Related Commands: Section 2.2 #** 52/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 53 0: This is not the first time the command has been sent since the module was powered on, which denotes that there has been no module reset since the last $AA5 command was sent 53/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 54 Command: $035 Response: !030 Reads the reset status of module 03.The response shows that there has been no module reset since the last $AA5 command was sent. 54/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 55 The status of the digital input/output channels, a four digit hexadecimal value followed by 00 There will be no response if the command syntax is incorrect, there is a communication error, or there is no module with the specified address. 55/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 56 07.The command is invalid became no module with the specified address exits Related Commands: Section 2.5 #AA00(Data) Section 2.8 #AAAcDD Section 2.6 #AA0A(Data) Section 2.18 @AA Section 2.7 #AA1cDD Section 2.19 @AA(Data) 56/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 57: Aac

    Address of the module in hexadecimal format (00 to FF) There will be no response if the command syntax is incorrect, there is a communication error, or there is no module with the specified address. 57/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 58 01 and return 0. Command: $01L1 Response: !011 Sends a command to read the status of the high latched digital output channel of module 01 and return 0. Related Commands: Section 2.17 $AALS 58/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 59: Aad

    Address of the module in hexadecimal format (00 to FF) There will be no response if the command syntax is incorrect, there is a communication error, or there is no module with the specified address. 59/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 60 I-87211W User Manual Examples: Command: $01D Response: !01 Updates the current date and temporarily saves the date in the module. Command: #014 Response: !0199,99,9999 Reads the current date. Related Commands: Section 2.4 #AAN 60/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 61: Aaf

    Example: Command: $01F Response: !0101.20 Reads the firmware version of module 01, and shows that it is version 1.2. 61/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 62: Aam

    There will be no response if the command syntax is incorrect, there is a communication error, or there is no module with the specified address. Example: Command: $01M Response: !01GPS721 Reads the module name of module 01 and returns the name “GPS721”. 62/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 63: Aals

    Status of the latched digital output channel as a single digit hexadecimal value followed by 0 There will be no response if the command syntax is incorrect, there is a communication error, or there is no module with the specified address. 63/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 64 01 and return 0. Command: $01L1 Response: !011 Sends a command to read the status of the high latched digital output channel of module 01 and return 0. Related Commands: Section 2.13 $AAC 64/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 65 The highest byte represents Digital Output and the last byte is reserved There will be no response if the command syntax is incorrect, there is a communication error, or there is no module with the specified address. 65/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 66 01. Response: >0100, where 01 is the status of the DO channel. Related Commands: Section 2.5 #AA00(Data) Section 2.8 #AAAcDD Section 2.6 #AA0A(Data) Section 2.12 $AA6 Section 2.7 #AA1cDD Section 2.19 @AA(Data) 66/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 67: Aa(Data)

    > Delimiter for a valid command Delimiter for an invalid command Delimiter for an ignored command: If a Host WatchDog Timeout occurs, the module will reset to safe mode and the DO output 67/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 68 Response: ?01 The output value is not valid because the DO channel doesn’t exit. Related Commands: Section 2.5 #AA00(Data) Section 2.8 #AAAcDD Section 2.6 #AA0A(Data) Section 2.12 $AA6、 Section 2.7 #AA1cDD Section 2.18 @AA 68/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 69: Aao(Name)

    Address of the module in hexadecimal format (00 to FF) There will be no response if the command syntax is incorrect, there is a communication error, or there is no module with the specified address. 69/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 70 “GPS721”. Command: ~01O87000 Response: !01 Sets the name of module 01 to “87000” and returns a valid response. Command: $01M Response: !0187000 Reads the name of module 01 and returns the name “87000”. 70/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 71: Aad

    ?AA[CHKSUM](CR) Delimiter for a valid command Delimiter for an invalid command Address of the module in hexadecimal format (00 to FF) Two hexadecimal digits that represent the miscellaneous settings, shown below (00,02) Reserved 71/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 72 Response: !0102 Sets the DO active status of module 01 and returns a valid response. Command: ~01D Response: !0102 Reads the miscellaneous settings of module 01 and returns 02. Related Commands: Section 2.22 ~AADVV 72/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 73: Aadvv

    (00,02) Response: Valid Command: !AA[CHKSUM](CR) Invalid Command: ?AA[CHKSUM](CR) Delimiter for a valid command Delimiter for an invalid command Address of the module in hexadecimal format (00 to FF) Reserved 73/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 74 Response: !0100 Sets the DO active status of module 01 and returns a valid response. Command: ~01D Response: !0100 Reads the miscellaneous settings of module 01 and returns 00. Related Commands: Section 2.21 ~AAD 74/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 75: Aai

    Address of the module in hexadecimal format (00 to FF) There will be no response if the command syntax is incorrect, there is a communication error, or there is no module with the specified address. 75/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 76 Sets the “Soft INIT” function on module 01 to enable. The module returns a valid response. Command: %0107400740 Response: !01 Sends a command to change the BaudRate and checksum. The module returns a valid response. Related Commands: Section 2.26 ~AATnn 76/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 77: Aatnn

    Example: a value of 10 = 16 seconds Response: Valid Command: !AA[CHKSUM](CR) Invalid Command: ?AA[CHKSUM](CR) Delimiter for a valid command Delimiter for an invalid command Address of the module in hexadecimal format (00 to FF) 77/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 78 Sends the “~AATnn” command to set the Soft INIT duration to 16 seconds and the module returns a valid response. Command: ~01I Response: !01 Command to set module 01 to Soft INIT mode and the module returns a valid response. 78/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 79 I-87211W User Manual Command: %0107400740 Response: !01 After sending “~AATnn” “~AAI” commands, this command can be used to change the BaudRate and checksum. The module returns a valid response. Related Commands: Section 2.23 ~AAI 79/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 80 Read the Host WatchDog status of module 01 and it returns a valid response. It shows WatchDog is enabled and no Host WatchDog timeout is occurred. Related Commands: Section 2.28 ~AA0、2.29 ~AA1、2.30 ~AA2 2.31 ~AA3EVV、2.32 ~AA4V、 2.33 ~AA5V。 80/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 81 Bit 7: 0 indicates that the Host WatchDog is disabled, and 1 indicates that the Host WatchDog is enabled. Bit 2: 1 indicates that a Host WatchDog timeout has occurred, and 0 indicates that no Host 81/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 82 Host WatchDog on the module is disabled and timeout has not occurred. Related Commands: Section 2.27 ~** Section 2.31 ~AA3EVV Section 2.29 ~AA1 Section 2.32 ~AA4V Section 2.33 ~AA5V Section 2.30 ~AA2 82/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 83 Address of the module in hexadecimal format (00 to FF) There will be no response if the command syntax is incorrect, there is a communication error, or there is no module with the specified address. Examples: Command: ~070 83/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 84 Resets the Host WatchDog timeout status of module 07 and the module returns a valid response. Related Commands: Section 2.27 ~** Section 2.31 ~AA3EVV Section 2.28 ~AA0 Section 2.32 ~AA4V Section 2.30 ~AA2 Section 2.33 ~AA5V 84/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 85 0: the Host WatchDog is disabled 1: the Host WatchDog is enabled Two hexadecimal digits to represent the timeout value in tenths of a second, for example, 01 denotes 0.1 seconds and FF denotes 25.5 seconds 85/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 86 Host WatchDog is enabled and the Host WatchDog timeout value is 25.5 seconds. Related Commands: Section 2.27 ~** Section 2.31 ~AA3EVV Section 2.28 ~AA0 Section 2.32 ~AA4V Section 2.29 ~AA1 Section 2.33 ~AA5V 86/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 87: Aa3Evv

    0.1 seconds and FF denotes 25.5 seconds Response: Valid Command: !AA[CHKSUM](CR) Invalid Command: ?AA[CHKSUM](CR) Delimiter for a valid command Delimiter for an invalid command Address of the module in hexadecimal format (00 to 87/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 88 Reads the Host WatchDog status of module 01 and shows that a Host WatchDog is enabled. Related Commands: Section 2.27 ~** Section 2.30 ~AA2 Section 2.28 ~AA0 Section 2.32 ~AA4V Section 2.29 ~AA1 Section 2.33 ~AA5V 88/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 89: Aa4V

    (Data) Power-on DO Value or Safe DO Value There will be no response if the command syntax is incorrect, there is a communication error, or there is no module with the specified address. 89/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 90 Reads the power-on DO value of module 01 and the module returns a value of 1. Command: ~014S Response: !010 Reads the safe DO value of module 01 and the module returns 0. Related Commands: Section 2.33 ~AA5V 90/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 91: Aa5V

    Address of the module in hexadecimal format (00 to FF) There will be no response if the command syntax is incorrect, there is a communication error, or there is no module with the specified address. 91/93 I-87211W User Manual V2.5, Oct. 2010...
  • Page 92 Command: ~014S Response: !010 Reads the safe DO value of module 01. The module returns 5500, which denotes that the safe DO value is 0. Related Commands: Section 2.32 ~AA4V 92/93 I-87211W User Manual V2.5, Oct. 2010...

  • Page 93: Appendix1 Dual Watchdog Operation

    Watchdog, making the control system more reliable and stable. For more information regarding the Dual WatchDog system, please refer to Chapter 5 of the “Getting Started For I-7000 Series Modules” manual that can be downloaded from the ICP DAS website http://www.icpdas.com. 93/93 I-87211W User Manual V2.5, Oct. 2010...
