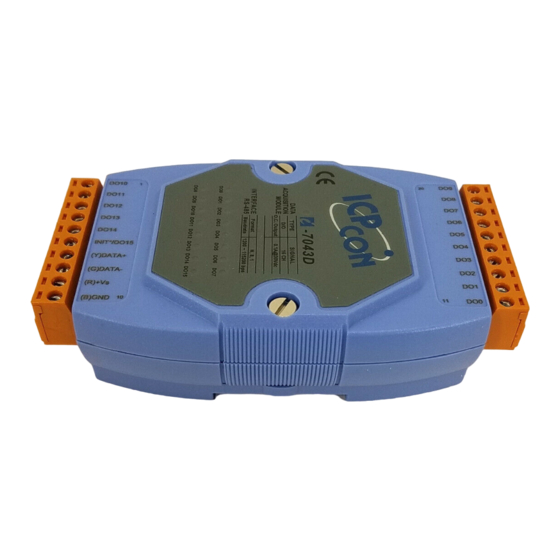

I-7043D
16 Channel Digital Output Data Acquisition
Module
Quick Start Guide
Product Website:
https://www.icpdas-usa.com/i_7043_d.html
http://www.icpdas-usa.com/dcon_utility_pro.html
1. Introduction
The I-7043D offers 16 digital output channels, each of which are non-
isolated and support sink-type output using an open collector. There are
also options to enable both power-on and safe values. The I-7043DD has
16 LED indicators that can be used to monitor the status of DO channels.
The hardware specifications for the M-7043D are the same as the I-7043D,
and both support the Modbus RTU and DCON protocols, which can be
configured via software.

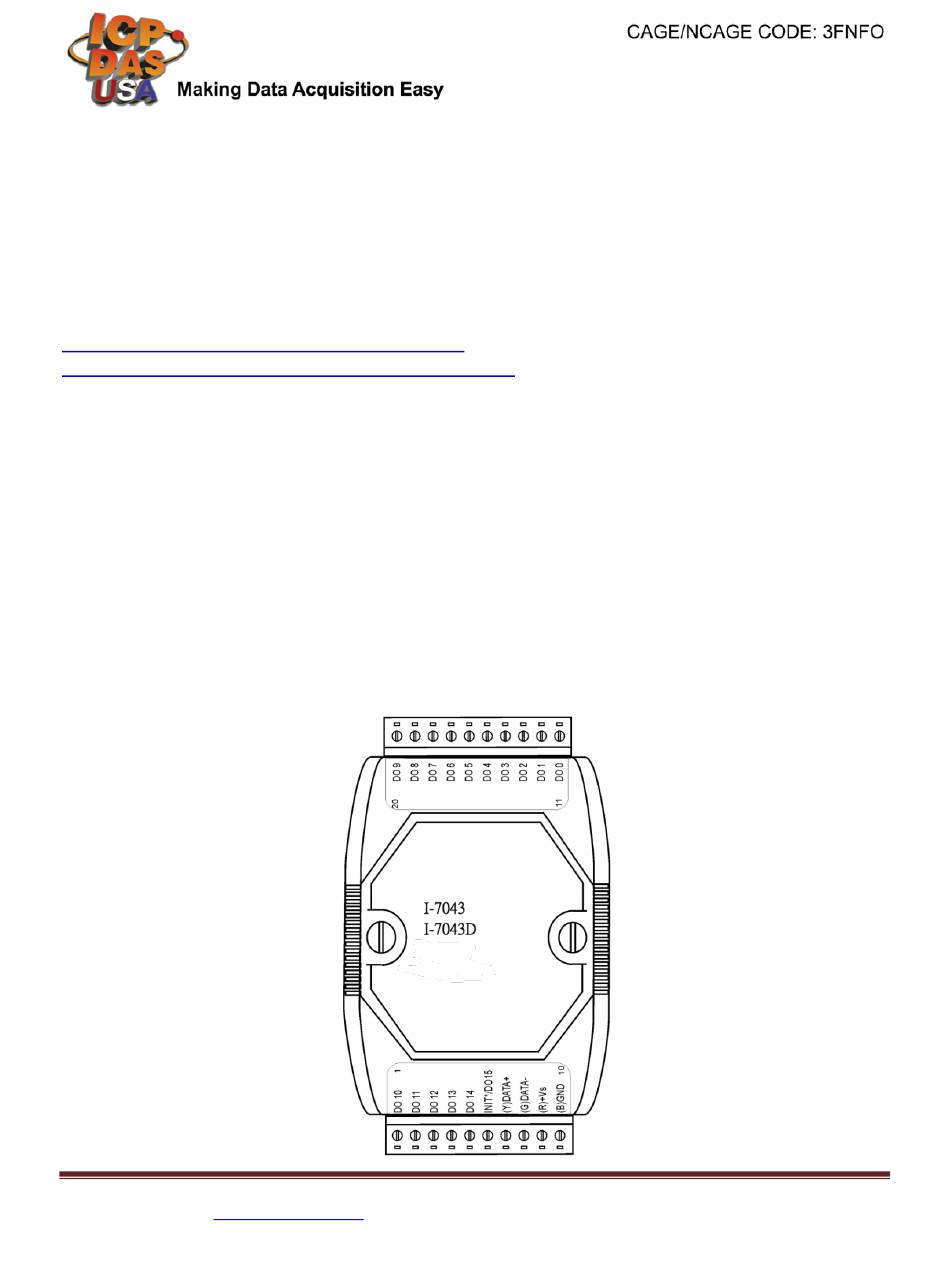

2. Terminal Assignment
I-7043D
16 Ch DO DAQ Module- QuickStart (Jul/2018)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA I-7043D
Summary of Contents for ICP DAS USA I-7043D
- Page 1 1. Introduction The I-7043D offers 16 digital output channels, each of which are non- isolated and support sink-type output using an open collector. There are also options to enable both power-on and safe values. The I-7043DD has 16 LED indicators that can be used to monitor the status of DO channels.
- Page 2 Block/ Wiring Diagram 4. Default Settings Default settings for the I-7043D DIO modules are as follows: 。 Module Address: 01 。 DIO Type: Type 40 。 Baud Rate: 9600 bps 。 Checksum disabled 。 J3 set to INIT mode enabled for I-7043D/43D a...
- Page 3 3. Connect the module to the power supply using the +Vs and GND terminals. Note that the voltage supplied should be in the range of +10 to +30V DC. I-7043D 16 Ch DO DAQ Module- QuickStart (Jul/2018) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
- Page 4 The default settings for the module can be found in Section 3. Click OK after selecting the COM port setting. I-7043D 16 Ch DO DAQ Module- QuickStart (Jul/2018) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
- Page 5 DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS and the others modules. 6. Configuration I/O module setting on PC I-7043D 16 Ch DO DAQ Module- QuickStart (Jul/2018) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
- Page 6 If user doesn’t know command, user can select Address and ID, it will show some refer commands as below. User can select necessary command to test or debug modules. I-7043D 16 Ch DO DAQ Module- QuickStart (Jul/2018) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
