I-7066
7 Channel Photo MOS AC/DC Relay Output
Data Acquisition Module
Quick Start Guide
Product Website:
https://www.icpdas-usa.com/i_7066_d.html
1. Introduction
I-7066 is intelligently designed to provide signal conditioning system monitoring and
safe value settings. I-7066 is a cost-effective solution for a wide range of valuable
industrial control signals and systems. The DCON utility can help users to configure and
test I-7066 Digital Output & Isolated Digital Input module. Plenty of library functions and
demo programs are provided to let users develop programs easily under Windows,
Linux and DOS operating systems. The communication interface is modbus protocol via
RS-485. Users may mount the modules on a DIN rail, panel or wall. Modules have a
screw-terminal block to connect to the signals.

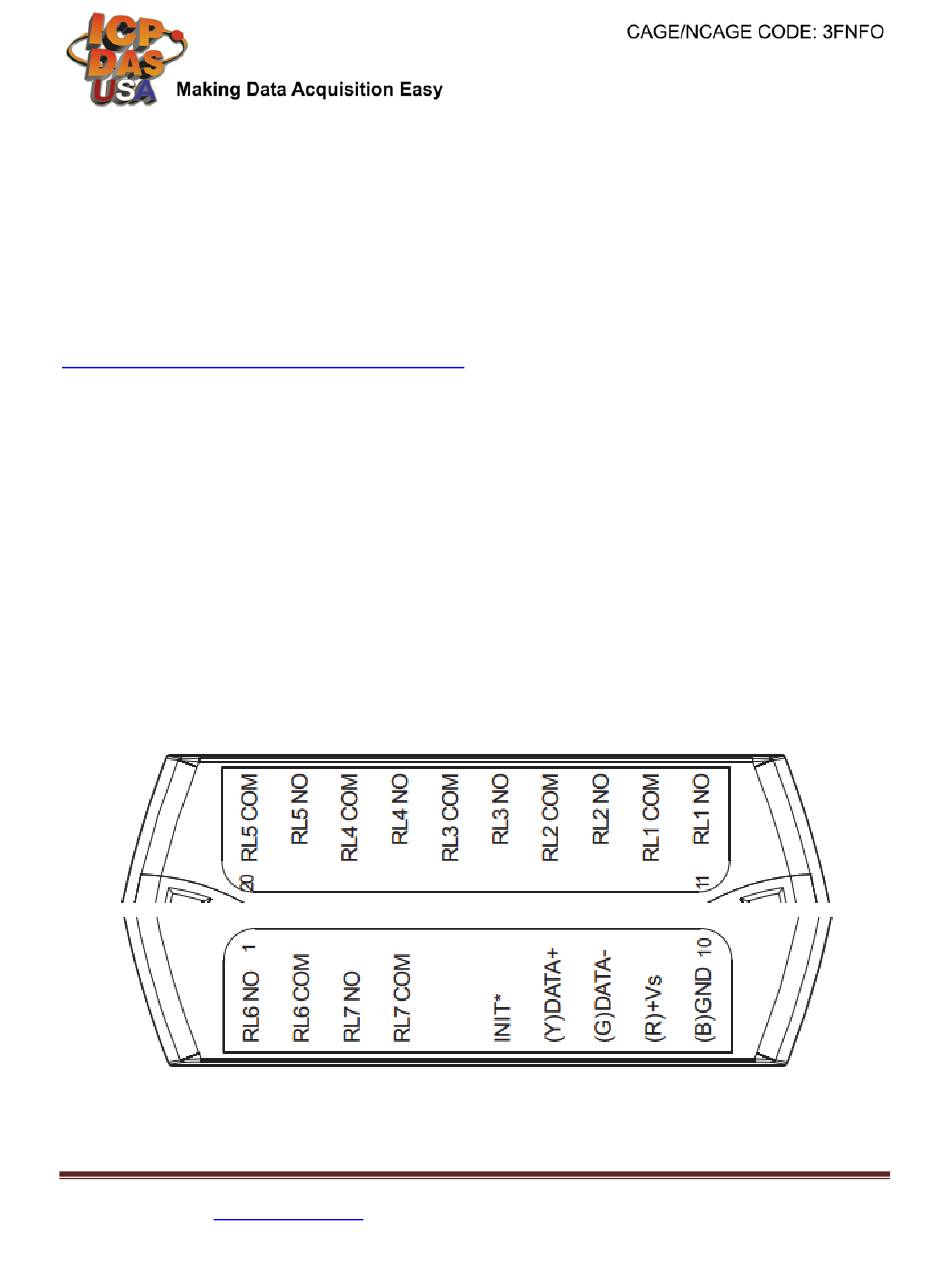

2. Terminal Assignment
I-7066 7 Ch Photo MOS AC/DC Relay Output DAQ Module
- QuickStart (Jan/2018)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1
Advertisement
Table of Contents
Related Manuals for ICP DAS USA I-7066
Summary of Contents for ICP DAS USA I-7066
- Page 1 1. Introduction I-7066 is intelligently designed to provide signal conditioning system monitoring and safe value settings. I-7066 is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7066 Digital Output &...
- Page 2 3. Block/ Wiring Diagram 4. Default Settings Default settings for the I-7066/D DIO modules are as follows: 。 Module Address: 01 。 DIO Type: Type 40 。 Baud Rate: 9600 bps 。 Checksum disabled I-7066 7 Ch Photo MOS AC/DC Relay Output DAQ Module - QuickStart (Jan/2018) ICP DAS USA, Inc.
- Page 3 3. Connect the module to the power supply using the +Vs and GND terminals. Note that the voltage supplied should be in the range of +10 to +30V DC. I-7066 7 Ch Photo MOS AC/DC Relay Output DAQ Module - QuickStart (Jan/2018) ICP DAS USA, Inc.
- Page 4 The default settings for the module can be found in Section 3. Click OK after selecting the COM port setting. I-7066 7 Ch Photo MOS AC/DC Relay Output DAQ Module - QuickStart (Jan/2018) ICP DAS USA, Inc. | www.icpdas-usa.com...
- Page 5 DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS and the others modules. 6. Configuration I/O module setting on PC I-7066 7 Ch Photo MOS AC/DC Relay Output DAQ Module - QuickStart (Jan/2018) ICP DAS USA, Inc. | www.icpdas-usa.com...
- Page 6 If user doesn’t know command, user can select Address and ID, it will show some refer commands as below. User can select necessary command to test or debug modules. I-7066 7 Ch Photo MOS AC/DC Relay Output DAQ Module - QuickStart (Jan/2018) ICP DAS USA, Inc. | www.icpdas-usa.com...
