ICP DAS USA I-7065BD Quick Start Manual

4-channel isolated digital input and 5-channel relay output module
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
I-7065BD
4-channel Isolated Digital Input and 5-
channel Relay Output Module
Quick Start Guide
Product Website:
https://www.icpdas-usa.com/i_7065bd
1. Introduction
I-7065BD is intelligently designed to provide signal conditioning system monitoring and
safe value settings. I-7065BD is a cost-effective solution for a wide range of valuable
industrial control signals and systems. The DCON utility can help users to configure and
test I-7065BD DC-SSR relay output module. Plenty of library functions and demo
programs are provided to let users develop programs easily under Windows, Linux and
DOS operating systems. The communication interface is modbus protocol via RS-485.
Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-
terminal block to connect to the signals.

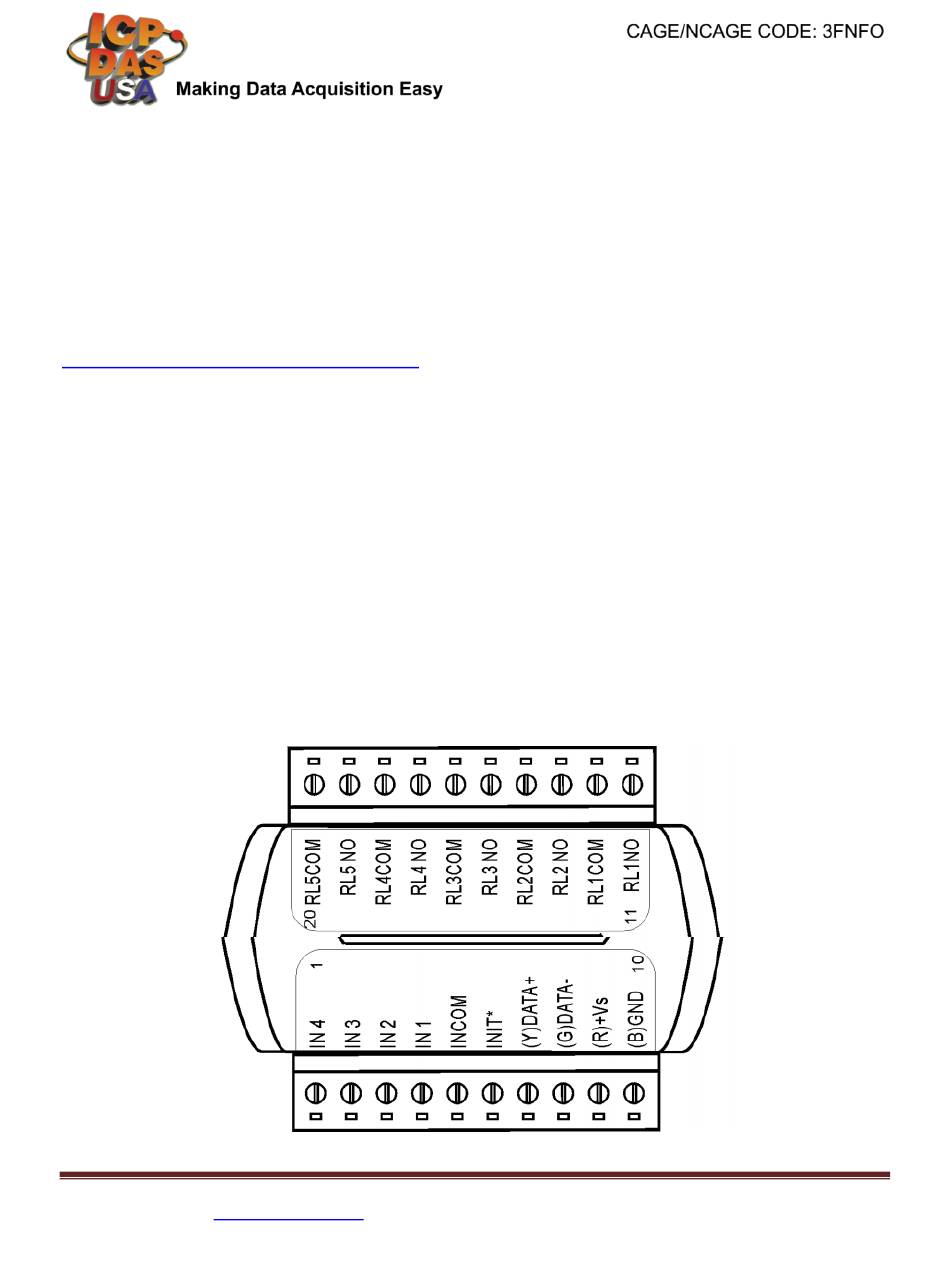

2. Terminal Assignment
I-7065BD 4-ch DI and 5-ch Relay Output Module
- QuickStart (May/2018)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1

Advertisement

loading

Related Manuals for ICP DAS USA I-7065BD

Summary of Contents for ICP DAS USA I-7065BD

  • Page 1 1. Introduction I-7065BD is intelligently designed to provide signal conditioning system monitoring and safe value settings. I-7065BD is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7065BD DC-SSR relay output module.

  • Page 2: Default Settings

    Default settings for the I-7065B/BD DIO modules are as follows: 。 Module Address: 01 。 DIO Type: Type 40 。 Baud Rate: 9600 bps I-7065BD 4-ch DI and 5-ch Relay Output Module - QuickStart (May/2018) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 3 3. Connect the module to the power supply using the +Vs and GND terminals. Note that the voltage supplied should be in the range of +10 to +30V DC. I-7065BD 4-ch DI and 5-ch Relay Output Module - QuickStart (May/2018) ICP DAS USA, Inc.
  • Page 4 It can select multi-options such as Baud Rate, Protocol, Checksum, and Format to search module. The default settings for the module can be found in Section 3. Click OK after selecting the COM port setting. I-7065BD 4-ch DI and 5-ch Relay Output Module - QuickStart (May/2018) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 5 DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS and the others modules. 6. Configuration I/O module setting on PC I-7065BD 4-ch DI and 5-ch Relay Output Module - QuickStart (May/2018) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 6 If user doesn’t know command, user can select Address and ID, it will show some refer commands as below. User can select necessary command to test or debug modules. I-7065BD 4-ch DI and 5-ch Relay Output Module - QuickStart (May/2018) ICP DAS USA, Inc. | www.icpdas-usa.com...
