Top Menus

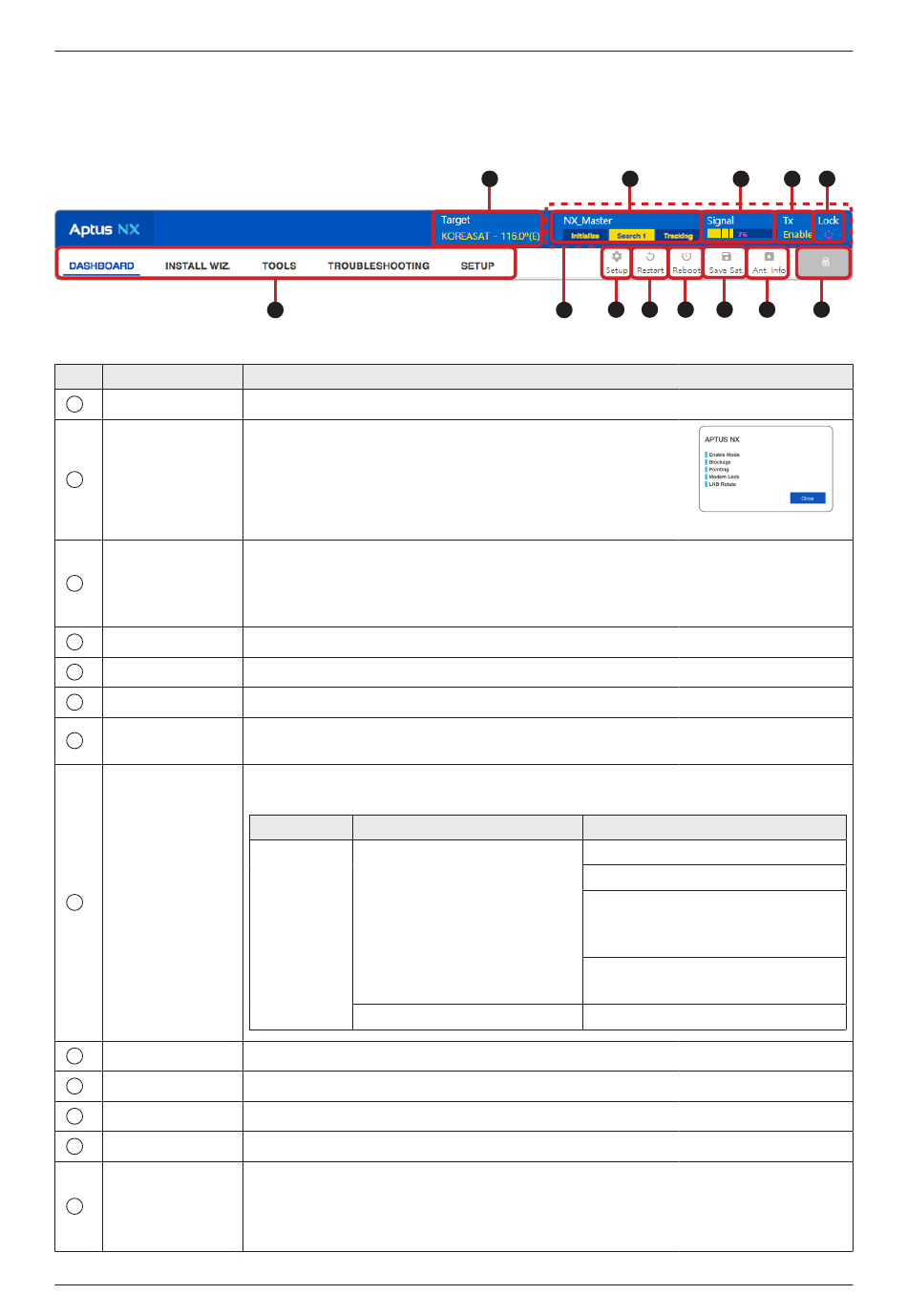

Once you log in, the following information and menus are displayed.
No. Item
Target Satellite
1
Quick Status
2
Screen Area
Antenna Status
3
Info
Signal Level
4
Tx Status
5
Lock
6
Main Menu
7
Setup
8
Restart
9
Reboot
10
Save Sat.
11
Ant. Info
12
Account Button
13
7
Description
Displays the name of the targeted satellite.
When clicking this top menu area (marked as red dots), the
"Quick Status Screen" appears. You can quickly monitor
each status of the five items (Enable Mode, In Blockage,
Pointing, Modem Lock, LNB Rotate) through the screen
(Blue: enable, Black: disable).
Displays the antenna status through a yellow indicator in the SETUP mode.
• Initialize: the antenna system is initialized.
• Searching: the antenna is searching the target satellite.
• Tracking: the antenna is tracking the target satellite.
Displays the current signal level.
Displays whether or not the antenna is able to transmit data.
Displays whether or not the satellite is locked.
Selects the Main Menu (DASHBOARD, INSTALL WIZ, TOOLS, TROUBLESHOOTING,
SETUP). Each main menu offers side menus on the left of the screen.
Enters the setup mode to modify settings. The following functions are available
only in setup mode.
Main Menu Side Menu
SETUP Antenna
Backup & Restore Setting
Restarts the antenna system.
Reboots the antenna system.
Saves bow offset.
Obtains current antenna information.
Select the "Account" button and enter the user management menu. The "Account"
and the "Logout" menu will appear. Select the "Account" menu to manage your
account details and select the "Logout" menu to log out of the AptusNX web
page.
1
2 8
Function
Antenna Angle
Dish Scan Range Check
Sensor Calibration
• Tilt Sensor Bias
• Rate Sensor Bias
Antenna Mode
• Set Idle Mode
Antenna Restore
