SNR F:12.490/11.300 RX:H TX:V
TRACKING 062.2 E
HDG:120.4 GPS:
DIAGNOSIS
DIAG ALL
PRODUCT : XXXXXXX
ANT: V0918070001 VER 1.00/1.00
ACU: V0918070001 VER 1.00/1.00
INTERFACE
MODEM: IDIRECT-AMIP
HEADING: NONE NETWORK: 1-3-
USB FUNCTION
USB SEL
USB FUNCTION
LOG DOWNLOAD FIRMWARE UPLOAD
BACKUP TO USB RESTORE FROM USB
P
BACK

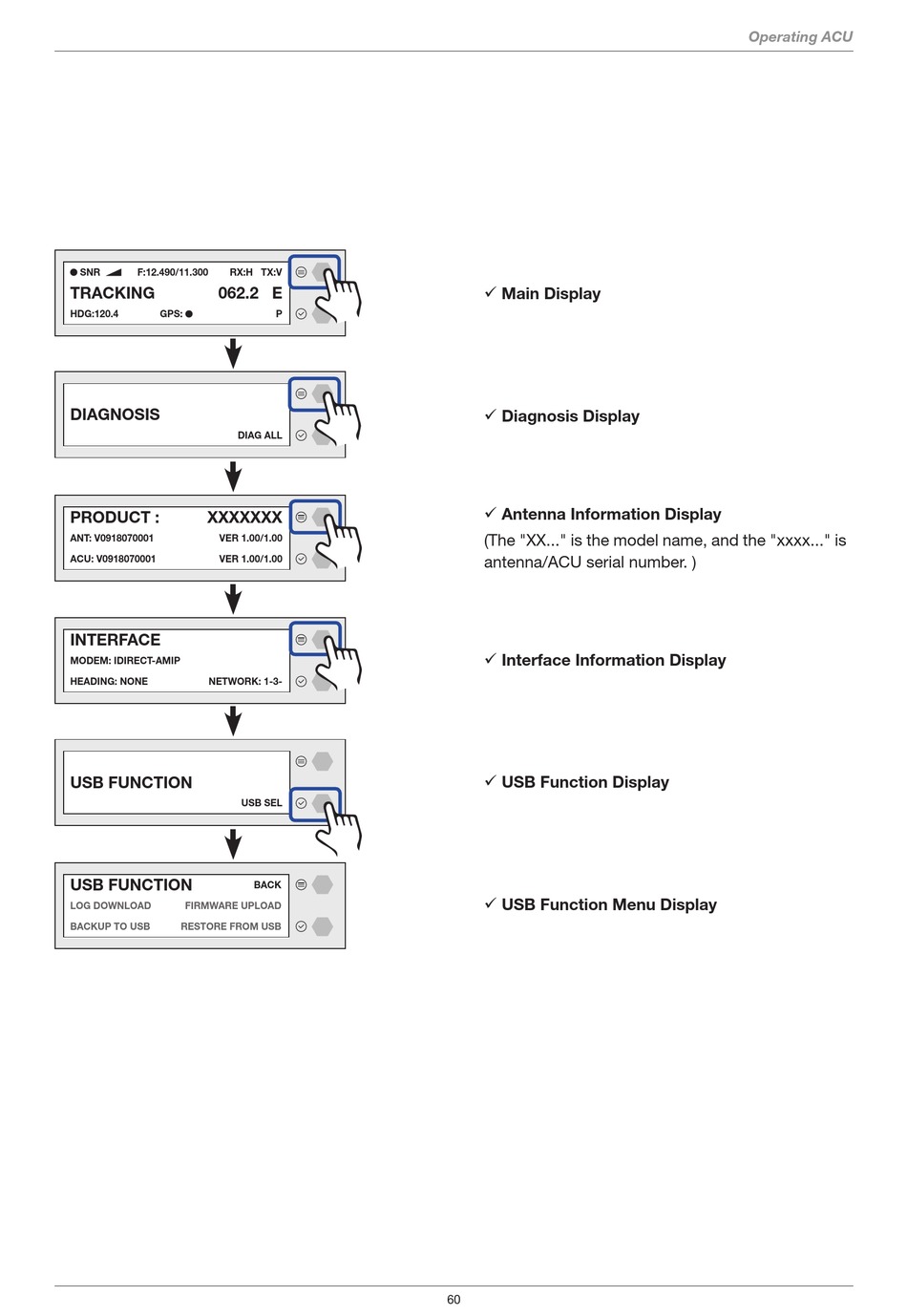

ü Main Display
ü Diagnosis Display
ü Antenna Information Display
(The "XX..." is the model name, and the "xxxx..." is
antenna/ACU serial number. )
ü Interface Information Display
ü USB Function Display
ü USB Function Menu Display
