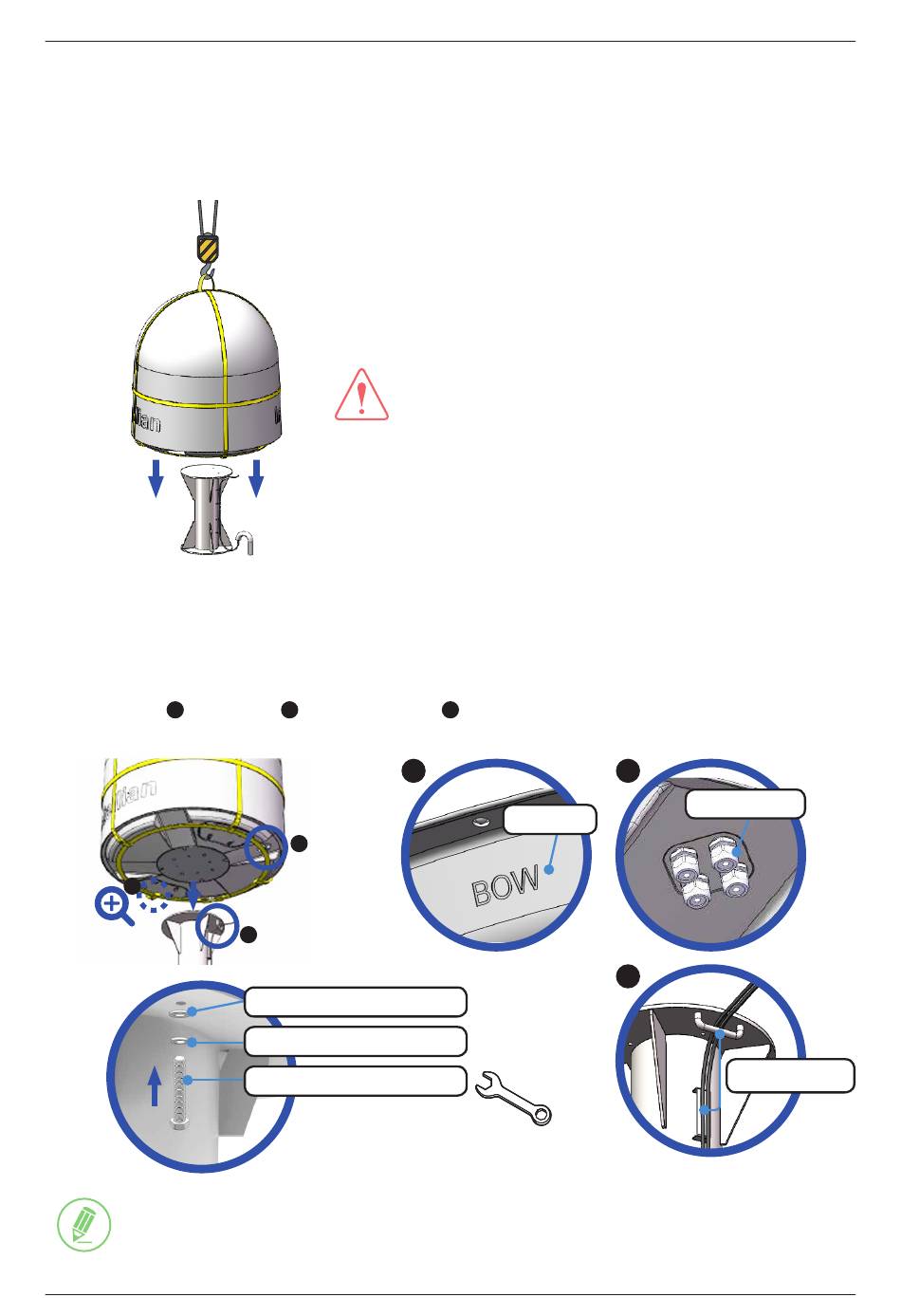

Placing Antenna on Mast

The Intellian antenna comes with the lifting straps pre-mounted from the factory. Check the condition of the
lifting strap ensure the shackle is tightened up. Lift the antenna above the mast using a crane and carefully put
the antenna down on the mast. When placing the radome, consider that the antenna should be positioned with
the BOW marker aligned as close as possible to the ship's heading.

Mounting Radome

Bring the Bolt Kit (4 EA) from the ACU box. Before assembling bolts, apply Loctite #263 to the bolt's threads
to ensure the bolts are fastened firmly. Insert the bolts and washers from under the mast into the radome,
and fasten them to the nuts assembled inside the radome. After mounting the antenna on the mast, remove
the lifting strap. BOW mark,
A
A
NOTE
• Make sure the cable from the mast is aligned with the cable entry of antenna bottom for a stable
connection.
• If the mast's surface thickness is greater than 40 mm, use the M12x100L Hex Bolt.
NOTE
• To fasten the M12 bolts use a torque setting of 110 Nm.
WARNING
The antenna may be subject to swaying motions in windy
conditions. Be careful when handling the antenna.
WARNING
cable glands, and
B
A
B
C
M12 Flat Washer (BUMAX)
M12 Spring Washer (BUMAX)
M12x80L Hex Bolt (BUMAX)
cable brackets direction must be as shown below.
C
BOW Mark
Use 18 mm Spanner/
Torque Wrench
24
Installing Antenna
B
Cable Glands
C
Cable Brackets
