CAUTION

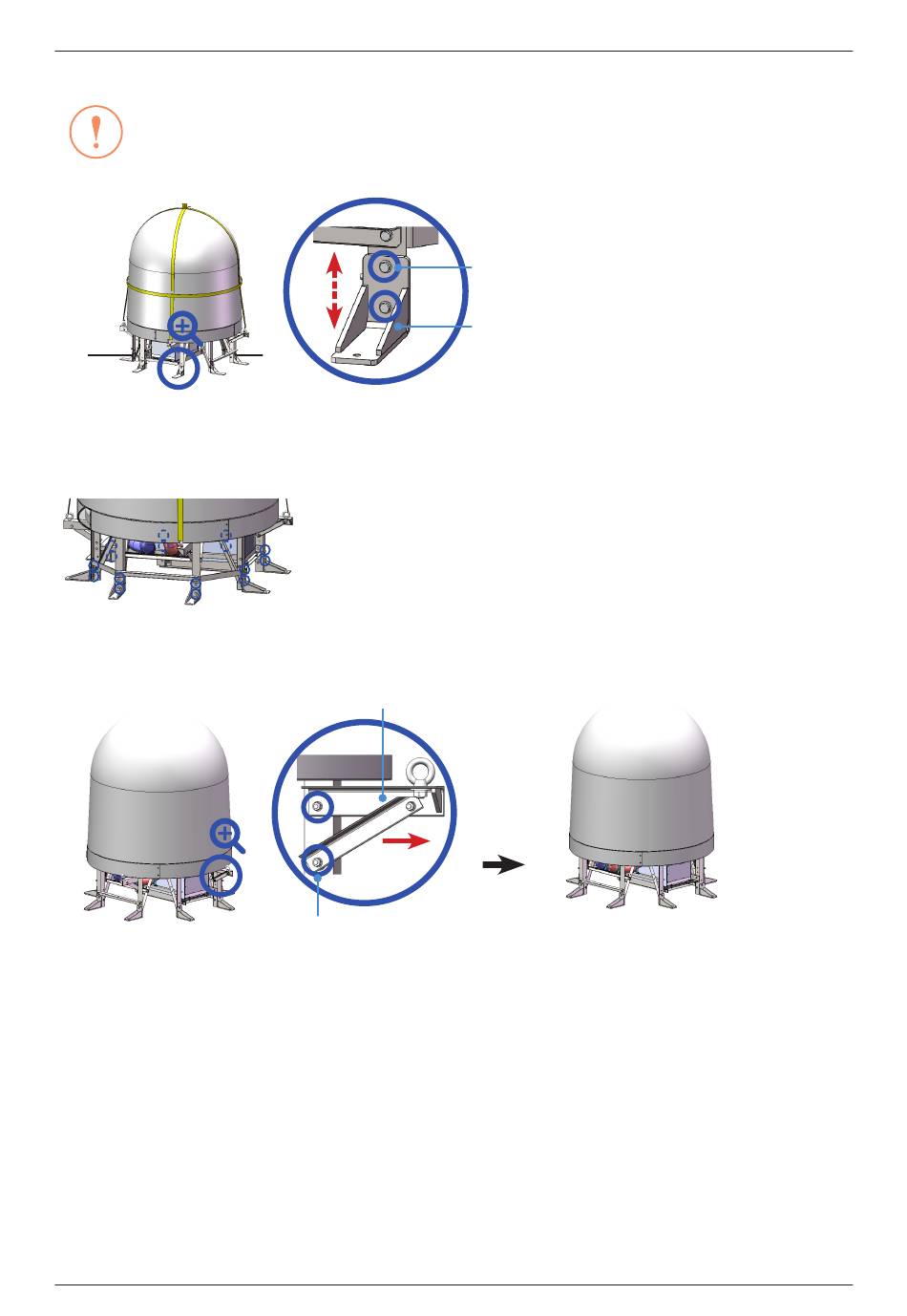

When the surface of the mast is not flat, disassemble the M12 bolt (2EA) fastened to the foot frame, and
adjust the height of the foot frame. The bottom surface of the foot frame must be as close as possible
CAUTION
to the surface of the mast.
Mast
2. After fixing the base frame on the mast, disassemble fixing bolt (1EA) on the foot frame, then apply Loctite
#263 to the bolt's threads to ensure the bolts are fastened firmly. Fully tighten the foot frame bolt (1EA) in
the right place. Apply the same procedure to all 16 parts.
3. Remove the lifting straps after fixing the antenna frame to the ship's mast.
4. Remove lifting frame M12 bolt (8EA) and take out the lifting frame (4EA) from the base frame.
Lifting Frame (4EA)
M12 Bolt (8EA)
B-15
Appendix B. Assembling Air-Conditioner (Optional)
M12 Bolt
(2EA)
Foot Frame
