Intellian v150NX Installation & Operation User Manual page 120

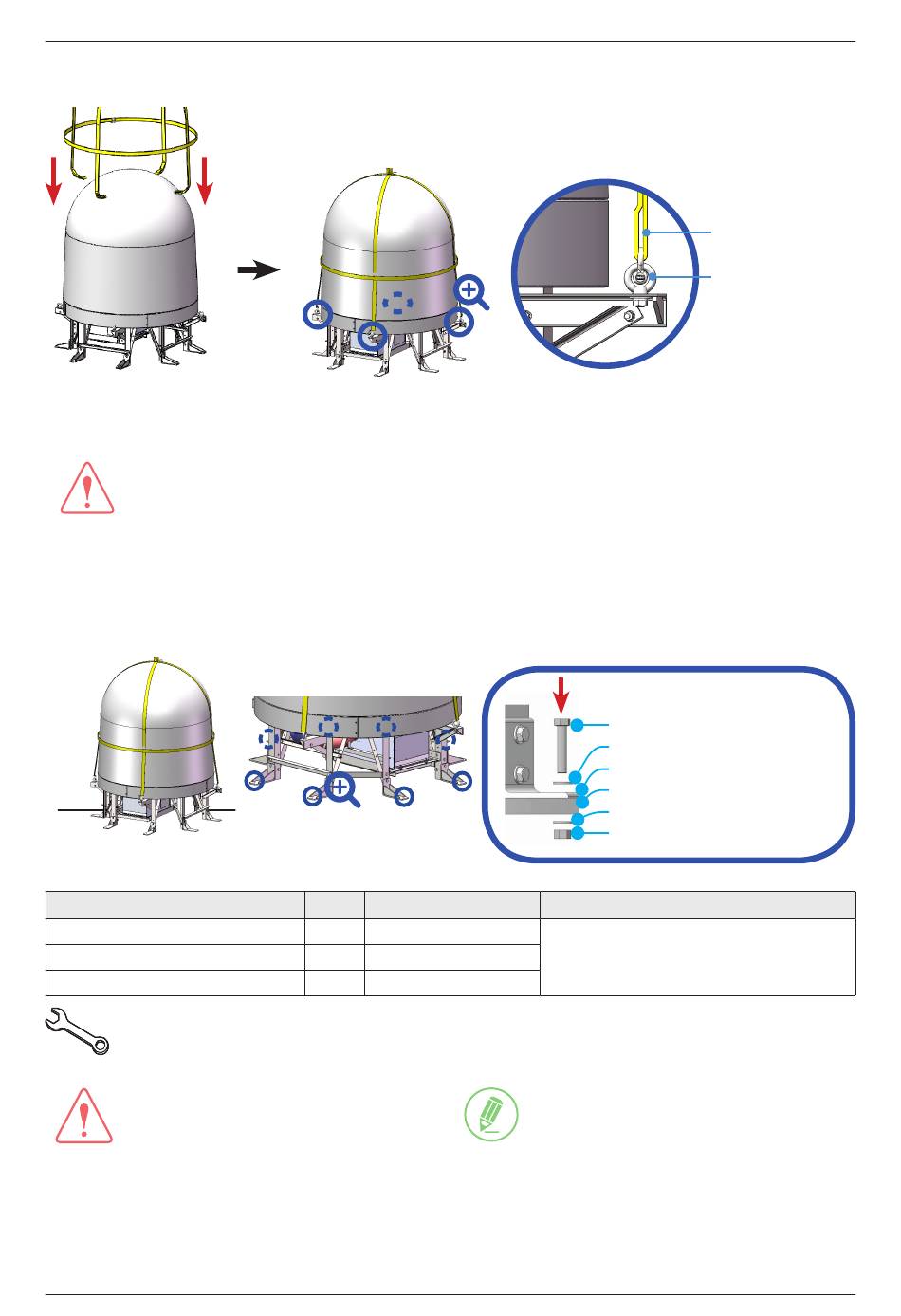

2. Cover the lifting straps to the radome, then connect to eye-bolts (4EA) on the air-conditioner frame.
3. Lift up the Radome hanging all four straps on a crane hook. Straighten out the lifting straps prior to lifting
the entire load of the antenna. Placing the antenna on the ship's mast.
WARNING:
lead to injury to the installers and/or cause significant damage to the unit.
WARNING
12. Mounting Antenna on Mast
1. After placing the antenna on the ship's mast, fix the base frame to the mast using bolts. When tightening
bolts, apply Loctite #263 to the bolt's threads to ensure the bolts are fastened firmly.
Mast
Description
Hex Bolt (BUMAX)
Lock Washer
Nut (BUMAX)
Use 18 mm Spanner or Torque Wrench
WARNING: When placing the antenna
on the ship's mast, move it slowly so the
antenna frame does not get damaged.
WARNING
Be careful when lifting the heavy object. Incorrect handling of the heavy object may
Assembling Position (8EA)
Q'ty Size
9 M12x60L
17 M12
9 M12
Appendix B. Assembling Air-Conditioner (Optional)
Remarks
Bolt Kit for Mounting Antenna on Mast
NOTE: Refer to "Tightening Torque Nm" in
"Appendix B. Bolt Type Torque spec." and
apply the value when tightening Wrench
NOTE
Bolts.
B-14
Lifting Strap
(4EA)
Eye-Bolt
(4EA)
M12x60L Hex Bolt (BUMAX) (8EA)
M12 Lock Washer (16EA)
Base Frame
Mount Plate
M12 Lock Washer (16EA)
M12 Nut (BUMAX)(8EA)
