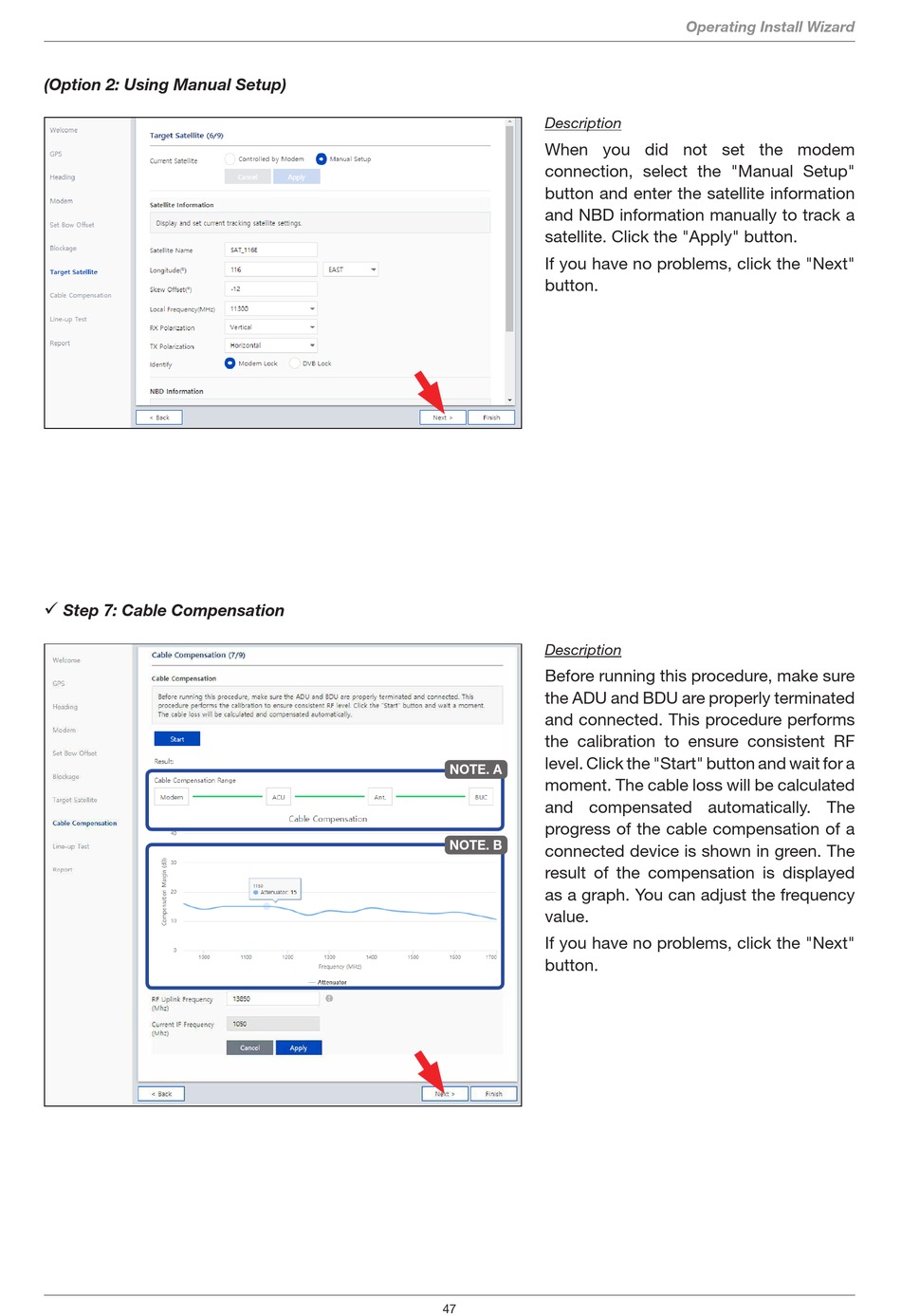

(Option 2: Using Manual Setup)
ü Step 7: Cable Compensation
Description
When you did not set the modem
connection, select the "Manual Setup"
button and enter the satellite information
and NBD information manually to track a
satellite. Click the "Apply" button.
If you have no problems, click the "Next"
button.
Description
Before running this procedure, make sure
the ADU and BDU are properly terminated
and connected. This procedure performs
the calibration to ensure consistent RF
level. Click the "Start" button and wait for a
NOTE. A
moment. The cable loss will be calculated
and compensated automatically. The
progress of the cable compensation of a
NOTE. B
connected device is shown in green. The
result of the compensation is displayed
as a graph. You can adjust the frequency
value.
If you have no problems, click the "Next"
button.
