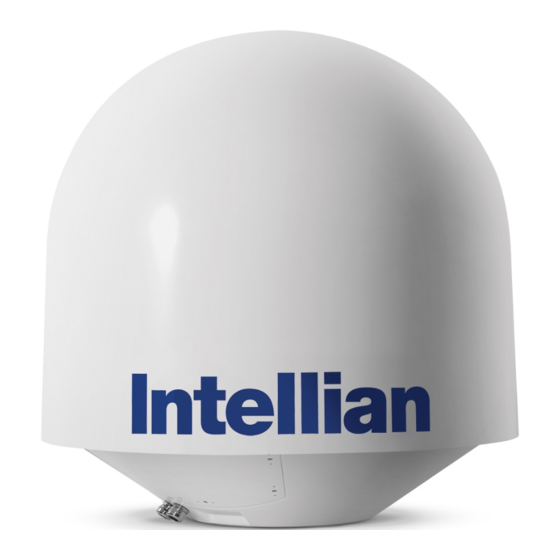

Intellian v130 Installation And Operation Manual

Marine satellite communication antenna system
Hide thumbs
Table of Contents

Advertisement

Quick Links

v130
Installation and Operation Manual
Marine Satellite Communication Antenna System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the v130 and is the answer not in the manual?

Questions and answers

Related Manuals for Intellian v130

Summary of Contents for Intellian v130

  • Page 1 Installation and Operation Manual Marine Satellite Communication Antenna System...
  • Page 3 This serial number will be required for the all troubleshooting or service inquiries. © 2013 Intellian Technologies Inc. All rights reserved. Intellian and the Intellian logo are trademarks of Intellian Technologies, Inc., registered in the U.S. and other countries. The v-Series and the v130 are trademarks of Intellian Technologies, Inc.
  • Page 4 INDEX...

  • Page 5: Table Of Contents

    INDEX CERTIFICATIONS INTRODUCTION Introduction to Intellian v130 Features of Intellian v130 System Configurations INSTALLING THE ANTENNA System Package Planning the Installation Antenna Installation INSTALLING THE ACU Mounting the ACU Ship Gyro Connection OPERATING THE ACU Introduction Normal Mode Setup Mode...
  • Page 6 CERTIFICATIONS...
  • Page 8 – Marine Satellite Communication System INTRODUCTION Introduction to Intellian v130 Features of Intellian v130 System Configurations...

  • Page 9: Introduction To Intellian V130

    “always on” and “high-quality” broadband communications on all types of vessels. The v130 is built to meet or exceed the industry’s most stringent standards such as FCC, ETSI, R&TT, and MIL-STD-167. The v130 offers superior RF performance with its simple yet sophisticated design that reduces installation time and total cost of ownership.

  • Page 10: Features Of Intellian V130

    Best solution for all kinds of vessels The v130 is the best solution for all kinds of vessels that require the satellite broadband connection around the globe. The major RF components are designed and manufactured by Intellian’s solid in-house engineering to achieve superior antenna gain and xpol isolation recognized among the best performances in the industry.

  • Page 11: System Configurations

    For your satellite communication system to work properly, the system will have to be connected with all of the provided components properly, as shown in the figure below. Separate purchase of a satellite modem, ship’s gyrocompass, and Intellian Dual VSAT Mediator are required.
  • Page 12 Ship’s Gyrocompass (Not supplied) Antenna TX v130 – Marine Satellite Communication System Power Antenna RX Antenna Control Unit Gyro-Compass Input MODEM Interface Antenna Rx RS-232/RS-422 Modem Rx Power 24 V == 5 A AC 100 ~ 240 V Modem RX...

  • Page 13: Installing The Antenna System Package

    INTRODUCTION INSTALLING THE ANTENNA System Package Antenna Unit ACU (Antenna Control Unit) Installation Kit Planning the Installation Selection of Antenna Installation Site Configure Radiation Hazard/Blockage Zones System Cables Power Requirement Tools Required for Installation Antenna Installation Unpacking the Wooden Crate Antenna Dimensions Antenna Mounting Templates Position the Radome...

  • Page 14: System Package

    – Marine Satellite Communication System System Package The package of Intellian v130 consists of antenna unit, ACU and installation kit box. Antenna unit Installation kit box...
  • Page 15 INSTALLING THE ANTENNA Antenna Unit The antenna unit includes an antenna pedestal inside a radome assembly unit. The pedestal consists of a satellite antenna main dish with RF components mounted on a stabilized pedestal. The radome protects the antenna pedestal assembly unit from the marine environment.
  • Page 16 – Marine Satellite Communication System ACU (Antenna Control Unit) ACU provides power to the antenna and Block Up Converter (BUC), The digital Vacuum Fluorescent Display (VFD) allows for easy operation of the ACU, even in the dark. Antenna Control Unit...
  • Page 17 INSTALLING THE ANTENNA Installation Kit Contains the items required for securing the antenna unit and ACU to the vessel. Antenna Q’ty Description Size Remark Hex. Bolt M12 x 80L Flat Washer Antenna-Deck 4 Sets: Installation 1 Set: Spare Spring Washer Hex.
  • Page 18 – Marine Satellite Communication System Other Components Item Image Q’ty Description Size Remark Rack ACU - 19 inch Rack Bracket Table ACU-Table RG6 Cable ACU to Modem RG6 Cable Antenna to Modem & 15 m (Optional) Antenna to ACU...

  • Page 19: Planning The Installation

    Obstacle Configure Radiation Hazard/Blockage Zones It is important to setup the radiation hazard or blockage zones for Intellian VSAT communication systems. The ACU can be programmed with relative azimuth and elevation sectors to create up to five zones where transmit power would endanger personnel who are frequently in that area or blockage exists.
  • Page 20 1.25 mm Up to 50 meters 2.30 mm Up to 70 meters 3.00 mm Up to 120 meters 5.00 mm Power Requirement Intellian v130 has been designed to work on a vessel’s power supply rated at 100- 240 V AC.
  • Page 21 INSTALLING THE ANTENNA Tools Required for Installation 11 mm Spanner Power Drill 19 mm Spanner Phillips-Head Screwdriver 5 mm Allen/Hex key Flat Head Screwdriver (min 5mm)

  • Page 22: Antenna Installation

    – Marine Satellite Communication System Antenna Installation Unpacking the wooden crate of v130 Step 1. Remove the top panel and 12 pins from the hinges of the wooden crate.
  • Page 23 INSTALLING THE ANTENNA Step 2. Remove 8 tapping screws that mount the ACU box and installation kit box to the pallet.
  • Page 24 – Marine Satellite Communication System Step 3. Lift the pallet by using a suitable size of lifting equipment. Using a 19mm spanner, remove 4 shipping bolts that mount the antenna to the pallet.
  • Page 25 INSTALLING THE ANTENNA Step 4. Open the radome hatch. Flat Head Screwdriver (min 5mm) Radome Hatch Step 5. Remove the ratchet strap. * The photo with the opened radome is only for display purpose.
  • Page 26 – Marine Satellite Communication System Step 6. Remove the tie wrap from the pedestal. Do not turn on the antenna power if the shipping restraints from the antenna pedestal have not been removed completely.
  • Page 27 Confirm the height and diameter of the antenna before installing it. v110 Radome Dimensions 147.4 cm (58") v130 Radome Dimensions 165.2 cm (65")
  • Page 28 – Marine Satellite Communication System Antenna Mounting Templates The mounting holes must be in the exact same place as shown in the diagram below. The radome should be positioned with the Bow marker aligned as close as possible to the centerline of the ship. Variation from actual alignment can be compensated with the "BOW Adjust"...
  • Page 29 INSTALLING THE ANTENNA Position the Radome The radome should be positioned with the BOW marker aligned as closely as possible to the ship’s centerline. Recommended size of the support pedestal Mounting Plate Min. 1 cm (0.4”) Max. 3 cm (1.2”) Support Pedestal Appr.
  • Page 30 Bolt the radome base directly to the support pedestal. Note: Makesure to use the Intellian supplied blots from the accessory box when you mount the radome. Apply Loctite #262 or equivalent to the bolt thread, and fasten it with the tight torque of 110 N·m...
  • Page 31 INSTALLING THE ANTENNA RF Cable Connections Ensure that the switch on the power switch box is off during the installation period. When all the cables have been installed, turn on the switch. Shrinkage Guide Rubber Gland Power Switch Box Modem Tx Cable Rotary #1 Tx Cable (from modem) (from antenna)
  • Page 32 – Marine Satellite Communication System NOTE: Tightening torque Connector Type Tightening Torque F Type 1.0 N-m 0.6 N-m N Type 1.5 N-m Secure the RF Cables Using tie wraps supplied with radome, secure the RF cables connected to the power switch box.

  • Page 33: Installing The Acu Mounting The Acu

    INSTALLING THE ACU Mounting the ACU 19” Rack Mount Type Table Mount Type ACU Dimensions Selection of ACU Installation Site Ship Gyro Connection Connecting the System with a Ship’s Gyro Connecting the System without a Ship’s Gyro ACU Connector Guide...

  • Page 34: Mounting The Acu

    – Marine Satellite Communication System Mounting the ACU Intellian supplies two types of mounting methods (a) 19” Rack Mount Type and (b) Table Mount Type to mount your ACU. 19" Rack Mount Type 19” Rack Mount Type - The ACU should be installed using the two supplied rack mounting brackets which allow for a side 19”...
  • Page 35 INSTALLING THE ACU ACU Dimensions 47.4 cm (18.6") Dimension of ACU 45.4 cm (17.8") 43.1 cm (17") 4.4 cm (1.7") POWER TRACKING ERROR Antenna Control Unit Power 46.5 cm (18.3") 48.5 cm (19.1") Selection of ACU Installation Site The ACU should be installed below deck, in a location that is: •...

  • Page 36: Ship Gyro Connection

    Connecting the System with a Ship’s Gyro The ship’s gyrocompass provides true heading input to the antenna which easily allows the antenna to target and acquire the desired satellite. Intellian always recommend to connect a ship’s gyro to the antenna through the gyro interface on the ACU.
  • Page 37 Connecting the System without a Ship’s Gyro For a vessel where the ship’s gyrocompass is not installed or is difficult to be connected, the Intellian Gyro-Free satellite search function will be automatically enabled to allow the antenna to lock onto the desired satellite without requiring an external heading input.
  • Page 38 – Marine Satellite Communication System ACU Connector Guide • Synchro Connector ACU Synchro Port D-Sub 9 pin Male connector D-Sub 9 pin Female Supplied Component Signal Signal SYNCHRO_R2 SYNCHRO_R1 SYNCHRO_R3 SYNCHRO_S2 SYNCHRO_S1 • Console Port ACU Console Port D-Sub 9 pin Male connector...

  • Page 39: Operating The Acu Introduction

    OPERATING THE ACU Introduction Normal Mode Setup Mode Installation Settings Antenna Settings Manual Search Setup Antenna LNB Polarization Angle Search Parameters Setup Antenna Parameters Setup Block Zone Antenna Diagnostic Test Satellite Settings Load Satellite Edit Satellite Information Add Satellite Information Check NID System Settings Set LNB Local Oscillator Frequency...
  • Page 40 – Marine Satellite Communication System Introduction This section of the handbook describes how to setup your system after installing the ACU. It includes the following functions: Mode Arrow Keys ACU Soft Keys PC Cable (USB) Status LED Return Function...

  • Page 41: Normal Mode

    OPERATING THE ACU Normal Mode Startup With the system installed and power applied, the ACU screen will show the following sequence. Start up I N T E L L I A N T E C H N O L O G I E S I N C . 1.
  • Page 42 – Marine Satellite Communication System Monitoring Antenna Current Status When the ACU power is on, it displays the status of the antenna. The current status of the antenna is displayed as shown below. Current search status S E A R C H 1 1 3 8 .
  • Page 43 OPERATING THE ACU Tracking & Heading N B D F : 1 2 4 7 0 0 0 B W : 1 0 0 0 S I G : 3 0 1 information 0 0 4 . 5 3 E 5 2 .

  • Page 44: Setup Mode

    – Marine Satellite Communication System Setup Mode Enter the SETUP mode simply follow the instructions below. Searching / Tracking mode T R A C K I N G 1 3 8 . 0 E T E L S T _ 1 8 S I G : 3 0 1 * A Z : 2 9 2 .

  • Page 45: Installation Settings

    A search pattern 1 or 3 will be initiated according to which Gyro Type is selected and the existence of the gyro input. Ensure that the supported Gyro Type is set correctly. For v130, if the ship's gyrocompass output is Step-by-Step (SBS) or Synchro, a separate purchase of a gyro converter is required.
  • Page 46 – Marine Satellite Communication System Gyro search mode Setting of Heading Device Existence of Heading Data NMEA/ Ground Test Device Synchro With Heading Data Search 1 Search 3 Search 3 Without Heading Data Search 1 Search 1 Search 3...
  • Page 47 OPERATING THE ACU Load L O A D ? Y E S 8. Press RETURN key to load the current setting or abort and return to the main display. Loading settings L O A D I N G . . . D O N O T T U R N O F F ! 9.

  • Page 48: Antenna Settings

    – Marine Satellite Communication System Antenna Settings Manual Search Search the desired satellite manually. Setup mode S E T U P M O D E ? Y E S 1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.
  • Page 49 OPERATING THE ACU Setup Antenna LNB pol Angle Setup mode S E T U P M O D E ? Y E S 1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode. Antenna menu + A N T E N N A + S A T E L L I T E...
  • Page 50 – Marine Satellite Communication System Search Parameters Setup mode S E T U P M O D E ? Y E S 1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.
  • Page 51 OPERATING THE ACU Search 1 (Gyro Free) Search Pattern 3° 2° 1° Target Satellite EL Position 0° -1° -2° -3° Revolution (AZ direction) Search 1 antenna motion Target EL Angle Target EL Angle + 0.5° Target EL Angle - 0.5° Turn 1 Turn 2 Turn 3...
  • Page 52 – Marine Satellite Communication System Setup Antenna Parameters These parameters should only be changed by an authorized Intellian service technician. Improper setting of these parameters will cause your system to perform improperly. Setup mode S E T U P M O D E ? Y E S 1.
  • Page 53 OPERATING THE ACU Set detect & tracking NBD D E T E C T N B D T R A C K I N G N B D 0 4 0 0 2 0 6. Set DETECT NBD and TRACKING NBD when NBD (Narrow Band Detection) mode of TRACKING SIGNAL is chosen to be used (Range: 1-200).
  • Page 54 – Marine Satellite Communication System Idle mode & I D L E M O D E R E B O O T A N T E N N A Reboot antenna O F F 8. Set IDLE MODE and REBOOT ANTENNA The antenna is balanced at factory.
  • Page 55 OPERATING THE ACU Setup Block Zone Up to 5 block or radiation hazard zones can be programmed with relative azimuth and elevation sectors. Setup mode S E T U P M O D E ? Y E S 1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode. Antenna menu + A N T E N N A + S A T E L L I T E...
  • Page 56 – Marine Satellite Communication System Block zone 2 Z O N E 2 B L O C K O F F 5. ZONE 2 to ZONE 5 BLOCK setting is same as ZONE 1 BLOCK. Press OK key to set ZONE 2 BLOCK and set next parameter.
  • Page 57 OPERATING THE ACU Antenna Diagnostic Test Refer to the diagnosis codes for the test results. Setup mode S E T U P M O D E ? Y E S 1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode. Antenna menu + A N T E N N A + S A T E L L I T E...
  • Page 58 – Marine Satellite Communication System Diagnosis Code: CODE 101: The data communication between the antenna and the ACU is tested. CODE 102: The azimuth motor is tested. CODE 103: The elevation motor is tested. CODE 104: The cross-level motor is tested.

  • Page 59: Satellite Settings

    OPERATING THE ACU Satellite Settings Load Satellite Setup mode S E T U P M O D E ? Y E S 1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode. Satellite menu + A N T E N N A + S A T E L L I T E...
  • Page 60 – Marine Satellite Communication System Edit Satellite Information Setup mode S E T U P M O D E ? Y E S 1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.
  • Page 61 OPERATING THE ACU DVB verifiy method D V B V E R I F Y S K E W O F F S E T D V B D E C O D E + 0 . 0 6. Edit satellite DVB VERIFY* method and SKEW OFFSET. DVB VERIFY will be only activated and applied when DVB mode of TRACKING SIGNAL is chosen to be used.
  • Page 62 – Marine Satellite Communication System Set DVB tracking D V B F R E Q . S Y M B O L N I D frequency 1 1 7 4 7 M H Z 2 1 3 0 0 K H Z 0 X 0 0 A D 9.
  • Page 63 OPERATING THE ACU Add Satellite Information Setup mode S E T U P M O D E ? Y E S 1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode. Satellite menu + A N T E N N A + S A T E L L I T E + S Y S T E M...
  • Page 64 – Marine Satellite Communication System Set LNB local frequency S E L E C T L O C A L T R A C K I N G S I G N A L 1 0 0 0 0 M H Z N B D 6.
  • Page 65 OPERATING THE ACU Save S A V E ? Y E S 10. Press LEFT arrow key to move cursor to YES and press OK key to save and execute the current settings. Or press RIGHT arrow key to move cursor to NO and press OK key to abort and return to the main display.

  • Page 66: System Settings

    – Marine Satellite Communication System System Settings Set LNB Local Oscillator Frequency Setup mode S E T U P M O D E ? Y E S 1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.
  • Page 67 OPERATING THE ACU Set Location Setup mode S E T U P M O D E ? Y E S 1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode. System menu + A N T E N N A + S A T E L L I T E + S Y S T E M...
  • Page 68 – Marine Satellite Communication System Latitude & longitude L A T I T U D E L O N G I T U D E 3 7 . 0 0 N 1 2 6 . 5 0 E 5. Set the current LATITUDE and LONGITUDE Press LEFT and RIGHT arrow keys until the desired character is underscored (selected).
  • Page 69 I D I R E C T - I /O 4. USE MEDIATOR is to enable the usage of MEDIATOR if the antenna is connected to the Intellian Dual VSAT Mediator. NOTE: USE MEDIATOR must be disabled if there is no MEDIATOR connected to the ACU. Improper setting of this parameter will cause your ACU’s modem interface working incorrectly.
  • Page 70 – Marine Satellite Communication System Set modem protocol M O D E M P O R T P R O T O C O L E T H E R N E T I / O C O N S O L E 5.
  • Page 71 OPERATING THE ACU Use EXT.LOCK U S E E X T . L O C K E X T . L O C K A C T I V E Y E S L O W 6. USE EXT. LOCK is to select whether or not to use external lock signal from the satellite modem.
  • Page 72 – Marine Satellite Communication System System Backup & Restore Setup mode S E T U P M O D E ? Y E S 1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.
  • Page 73 OPERATING THE ACU Key Lock Setup mode S E T U P M O D E ? Y E S 1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode. System menu + A N T E N N A + S A T E L L I T E + S Y S T E M...
  • Page 74 – Marine Satellite Communication System Display Versions Setup mode S E T U P M O D E ? Y E S 1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

  • Page 75: Pc Controller Software Introduction

    OPERATING THE ACU PC CONTROLLER SOFTWARE Introduction PC to ACU Communication Setup Main Menu Controller Menus Position & Manual Search Tracking Information of Current Satellite Tracking Information of Library Version, Tracking Parameter & Block Zone Diagnosis, Search Parameter & Sensor Adjust...
  • Page 76 – Marine Satellite Communication System Introduction The PC Controller Software of Intellian v130 has been created for the user to easily set up the antenna by using a personal computer. Antenna PC controller...

  • Page 77: Pc To Acu Communication Setup

    Refer to page 108 for changing the ACU’s IP address. WARNING: The data volume will grow very quickly if Network Communication is in use. Intellian recommends to use Remote Web Access to access the ACU (refer to page 86).
  • Page 78 – Marine Satellite Communication System • Use Mediator -Enable the usage of Mediator if the antenna is connected to the Intellian Dual VSAT Mediator. Disable this function if there is no Mediator connected to the ACU. Improper setting of this parameter will cause your ACU’s modem inter face working incorrectly.

  • Page 79: Main Menu

    PC CONTROLLER SOFTWARE Main Menu Main menu • Controller Menus - Position (GPS, Heading, Bow) & Manual search - Tracking Information of Current Satellite - Tracking Information of Library - Version, Tracking Parameter & Block Zone - Diagnosis, Search Parameter & Sensor Adjust - Communication Information •...
  • Page 80 – Marine Satellite Communication System In “SETUP” mode, “Back Up Position” or “Restore Position” message will pop up if “Backup” or “Restore” button is pressed. Backup File (*.ibf) and Report File (*.rpt) will be generated on the PC if “Back Up to PC” button is pressed. You can open a report file using notepad software.

  • Page 81: Controller Menus

    PC CONTROLLER SOFTWARE Controller Menus Position & Manual Search Set the GPS and ship’s heading information to acquire the satellite signal and use move step function to find the satellite signal manually. Antenna angle, GPS and ship’s heading information Antenna Current GPS - Antenna Current GPS: Display current antenna GPS and Ship’s heading information.
  • Page 82 – Marine Satellite Communication System Tracking Information of Current Satellite Set the tracking mode and tracking frequency of the current satellite. Set the LNB local frequency to its corresponding voltage power supply. Set the current satellite tracking information Satellite Information - Satellite information: Display the current satellite name, longitude position and satellite skew.
  • Page 83 - Load satellite: Upload the pre-programmed satellite information in the library. Library - Open library from PC: Open the satellite library file from the supplied Intellian CD or from the external hard drive/PC. (File format: *.ilf) - Upload library to ACU: Upload the satellite library file to ACU.
  • Page 84 - Display current block zones by azimuth and elevation sectors. Up to 5 blockage zones can be programmed. NOTE: DVB and NBD parameter settings should only be changed by an authorized service technician. Improper setting of these parameters will render your system inoperable. Consult Intellian for changing antenna parameters.
  • Page 85 PC CONTROLLER SOFTWARE Diagnosis, Search Parameter & Sensor Adjust Set the tilt sensors and calibrate rate sensors. Set the antenna search parameters. Run an antenna diagnostic test. Display antenna versions and parameters Tilt Sensor Bias - Tilt sensor bias: Adjust the two solid-state tilt sensors used to provide absolute cross-level tilt of the antenna and elevation feedback to eliminate long-term pointing drift (error).
  • Page 86 – Marine Satellite Communication System Rate Sensor - Rate sensor: Rate sensor is to calibrate DC voltage output from the three rate sensors used to sense antenna motion in azimuth, elevation and cross-level axes. The DC voltage output from each of the rate sensors may be vary by an amount which is directly proportional to the direction and rate of motion induced on it..

  • Page 87: Remote Web Access Introduction

    REMOTE WEB ACCESS REMOTE WEB ACCESS Introduction Main Page Antenna Settings General Information Current Status Ship Information Antenna Position Tracking Information Parameter Setting Modem Setting Block Zone Setting Diagnosis Satellite Information Antenna/ACU Firmware Upgrade Firmware Upgrade Roll Back Upgrade Log Ethernet-to-Serial Settings Network Setting Serial Setting...
  • Page 88 – Marine Satellite Communication System Introduction With embedded remote access function, the v-Series can be monitored, controlled, and diagnosed remotely from anywhere, anytime through the TCP/IP protocol. This not only can save tremendous time but also save the cost generated from the hundreds of routine maintenance activities such as operating firmware upgrades, tracking parameters resets, and system diagnostic.

  • Page 89: Main

    2. Choose either to Control & Monitor the ACU or Only Monitor the ACU. 3. Log into the ACU by typing in User Name and Password information. If this system has not been changed from the factory default: User Name: intellian Password: 12345678...
  • Page 90 – Marine Satellite Communication System Item Description Control IP Display current IP that controls the ACU. Current IP Display current IP address. Display screen refresh rate and time out. The screen will not refresh once the time-out shows 0:00.
  • Page 91 REMOTE WEB ACCESS Antenna Settings General Information Item Description General Display current antenna information. Information Display current antenna information. - Antenna Size: antenna dish size. - Voltage: operation voltage of antenna and ACU. - Antenna Product: antenna model number. Antenna - ACU Product: ACU model number.
  • Page 92 – Marine Satellite Communication System Current Status Item Description Current Status Display current antenna status. Display current antenna status. - Search 1: a search pattern 1 will automatically be initiated when the ship’s heading input does not exist / is failed. The...
  • Page 93 REMOTE WEB ACCESS Ship Information Item Description Ship Information Display GPS and ship’s gyro information. Display current GPS information. - Longitude (East/West) - Latitude (North/South) BOW Offset Display and set bow offset if needed. Current device: set ship’s heading device. If the ship’s gyro input is Step-by-step (SBS) separate Heading Device purchase of GYRO Converter is required.
  • Page 94 – Marine Satellite Communication System Antenna Position Item Description Antenna Position Display current antenna position. Display current antenna position. - Relative Azimuth: display antenna relative AZ angle. - Absolute Azimuth: display antenna absolute AZ angle. Current Antenna Position - Elevation: display antenna elevation angle.
  • Page 95 REMOTE WEB ACCESS Tracking Information Item Description Display or set current tracking mode and tracking frequency of Tracking Information the target satellite. Local Frequency Display LNB’s local frequencies. Display current LNB local Setting (MHz) frequency which is in use and voltage. Display current tracking mode.
  • Page 96 – Marine Satellite Communication System Parameter Setting WARNING: Ensure the Edit Enable check box is enabled before modifying the settings.
  • Page 97 REMOTE WEB ACCESS Item Description Set antenna search & tracking parameters. These parameters should only be changed by an authorized Parameter Setting service technician. Improper setting of these parameters will render your system inoperable. DVB Detect and Tracking Level Threshold: display/set current detect level threshold and tracking level threshold when DVB tracking mode is chosen to be used.
  • Page 98 USER SETTING is selected. - Use Mediator: enable the usage of Mediator if the antenna is connected to the Intellian Dual VSAT Mediator. Use Mediator must be set to “NO” if there is no MEDIATOR connected to the ACU.
  • Page 99 REMOTE WEB ACCESS - TX Mute: is a transmit inhibit output from the ACU to disable/ mute the modem transmit through a 5V (High) or 0V(LOW) current whenever the antenna is blocked, searching, or is mis- pointed 0.5° from peak satellite position. - Modem Lock: is the modem lock output from the modem provides a logic input through a 5V (High) or 0V(LOW) current to the ACU to identify when it is on the correct satellite.
  • Page 100 – Marine Satellite Communication System Block Zone Setting Item Description Block Zone Up to 5 block zones are allowed to be programmed. Setting This is the clockwise of the two points. AZ. START is where the rela- tive azimuth starts and AZ. END is where the relative azimuth ends Block Zone (Range: 0 - 360°).
  • Page 101 REMOTE WEB ACCESS Diagnosis Item Description Diagnosis Execute antenna diagnostic test. Select to run a full diagnostic test or single diagnostic test. - Serial Comm.: test the data communication between the antenna and the ACU. - Motor AZ: test the azimuth motor. - Motor EL: test the elevation motor.
  • Page 102 – Marine Satellite Communication System Satellite Information...
  • Page 103 Obtain satellite information installed in the ACU. from ACU - Open Library from PC: open the satellite library file from the supplied Intellian CD or from the external hard drive/PC. (File format: *.ilf) Library - Upload Library to ACU: upload the satellite library file to ACU.
  • Page 104 – Marine Satellite Communication System Backup & Restore Item Description Backup Enter Backup & Restore page. (Setup mode is required) Restore Backup antenna information to ACU/PC or Restore antenna by Target using the saved information ACU/PC. Backup Backup antenna information.

  • Page 105: Antenna/Acu Firmware Upgrade

    REMOTE WEB ACCESS Antenna/ ACU Firmware Upgrade Firmware Upgrade Item Description Upgrade antenna and ACU firmware version. Firmware Upgrade Browse and select the firmware package file to upload. Upgrade Steps 1. Select the upgrade package file. 2. Click on “Start Upload” button to transfer the Firmware package file (“*.fwp”) to E2S (Ethernet to serial) module.
  • Page 106 – Marine Satellite Communication System Firmware upgrade status page 5. It will display information about the upgrade process status on full screen. Upgrade process status page 6. If the firmware is successfully upgraded, it will display “The firmware update is completed.”...
  • Page 107 REMOTE WEB ACCESS Roll Back Item Description Roll back antenna and ACU firmware to previous package version Roll Back or latest package version.
  • Page 108 – Marine Satellite Communication System Upgrade Log Item Description Upgrade Log Display log information of firmware upgrade.

  • Page 109: Ethernet To Serial Settings

    REMOTE WEB ACCESS Ethernet-to-Serial Settings Network Setting Item Description Network Setting Modify ACU’s Internal IP address. Modify ACU’s Internal IP address and press Submit button. Go to “Save & Reboot” page and press Save & Reboot button to validate the changes. Network Configuration - IP Address: Factory default (Primary: 192.168.0.223)/(Secondary: 10.10.1.1)
  • Page 110 – Marine Satellite Communication System Serial Setting [1] Item Description Serial Setting Configure Serial port [1] and Serial port [2] Serial Port [1] is to communicate with an external modem via Ethernet. Follow the instruction below to configure Serial port [1] and press Submit button.
  • Page 111 REMOTE WEB ACCESS Serial Setting [2] Serial setting [2] page Item Description Serial Setting Configure Serial port [1] and port [2] Port [2] is to communicate with the PC Control via Ethernet. Follow the instruction below to configure Serial port [2] and press Submit button.
  • Page 112 – Marine Satellite Communication System SNMP Setting SNMP setting page Item Description Enable or disable the SNMP (Simple Network SNMP v1/v2/v3 Agent Management Protocol) agent. Configure the SNMP v1/v2 attributes (Read-Only, Read- V1/2 Attribution Write, Disable). The community name of SNMP v1/v2 is “public”.
  • Page 113 REMOTE WEB ACCESS Change Password Change password page Item Description Change Password Change your login ID (user name) and password. Enter your current login ID (user name) and new login Change ID ID. Press Submit button to validate the changes that are made to the login ID Enter your current login password and new login Change Password...
  • Page 114 – Marine Satellite Communication System Upgrade Steps 1. Click on “Browse” button to select the E2S firmware file (.bin) that you wish to upgrade. 2. Click on “Start Update” button to update the E2S firmware. Wait until the page is loaded.
  • Page 115 REMOTE WEB ACCESS Save & Reboot Save & reboot page Item Description Save settings to the ACU and reboot or reboot the Save & Reboot system without saving. Save & Reboot Save the modified settings and reboot the system. Reboot without Saving Reboot the system without saving the modified settings.
  • Page 116 – Marine Satellite Communication System Access Log Access log page Item Description Access Log Display user’s log information (Date/Time, Login ID and IP)

  • Page 117: Warranty

    Technical Specification Warranty This product is warranted by Intellian Technologies Inc., to be free from defects in materials and workmanship for a period of THREE (3) YEARS on parts and ONE (1) YEAR on labor performed at Intellian Technologies, Inc. service center from the purchased date of the product.

  • Page 118: Technical Specification

    – Marine Satellite Communication System Technical Specification v110 v130 Approvals CE – conforms to EU Directive 89/336/EEC FCC – verified to CFR47: Part 15 Dimensions 147.4 x 152.2 cm 165.2 x 168.9 cm Satellite Antenna Unit (58” x 59.9”) (65”...
  • Page 119 F +82 31 377 6185 T +82 2 511 2244 F +82 2 511 2235 Tech Support: SupportAPAC@intelliantech.com Americas Irvine Office Intellian Technologies USA, Inc. 9004 Research Drive Irvine, CA 92618 USA T 949 727 4498 F 949 271 4183 Tech Support: SupportAMERICAS@intelliantech.com...
