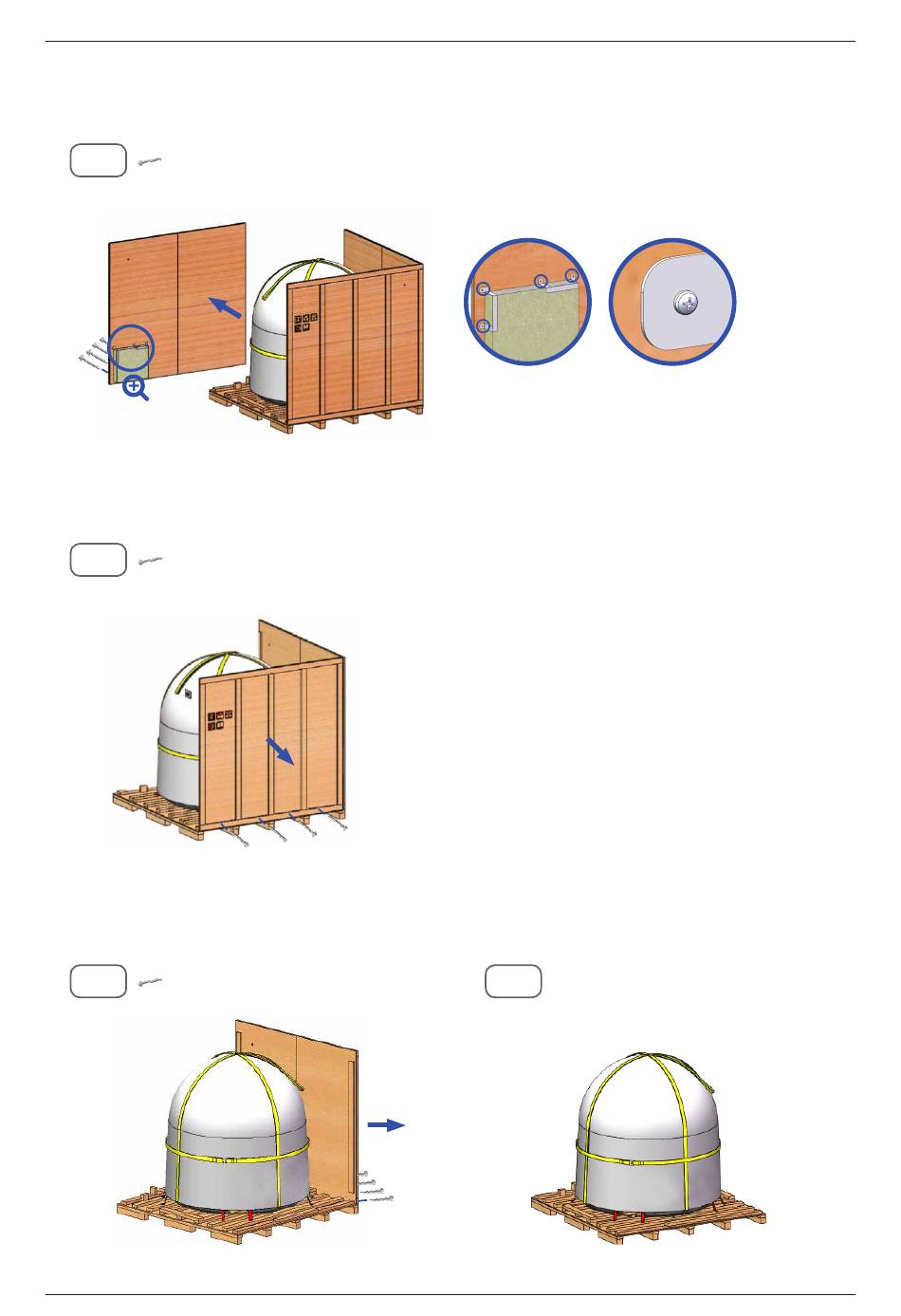

3. Remove the fixing screws (4 EA) from a left panel, then detach the left panel. Take out the ACU box that
is located inside the panel.
3-1
: 4 EA
4. Remove the fixing screws (4 EA) from a right panel, then detach the right panel.
4-1
: 4 EA
5. Remove the fixing screws (4 EA) from a remaining back panel, then detach the back panel.
5-1
: 4 EA
Fixing screw
Position
5-2
22
Installing Antenna
Fixing screw
