Planning Installation
Antenna Specification
Antenna Dimensions
Confirm the height and diameter of the bottom surface of the antenna unit before installing it. The mounting
surface and overall space occupied by the antenna must be sufficient for the height and diameter of the
fully constructed radome on top of its base frame. The height and the diameter of the bottom surface of the

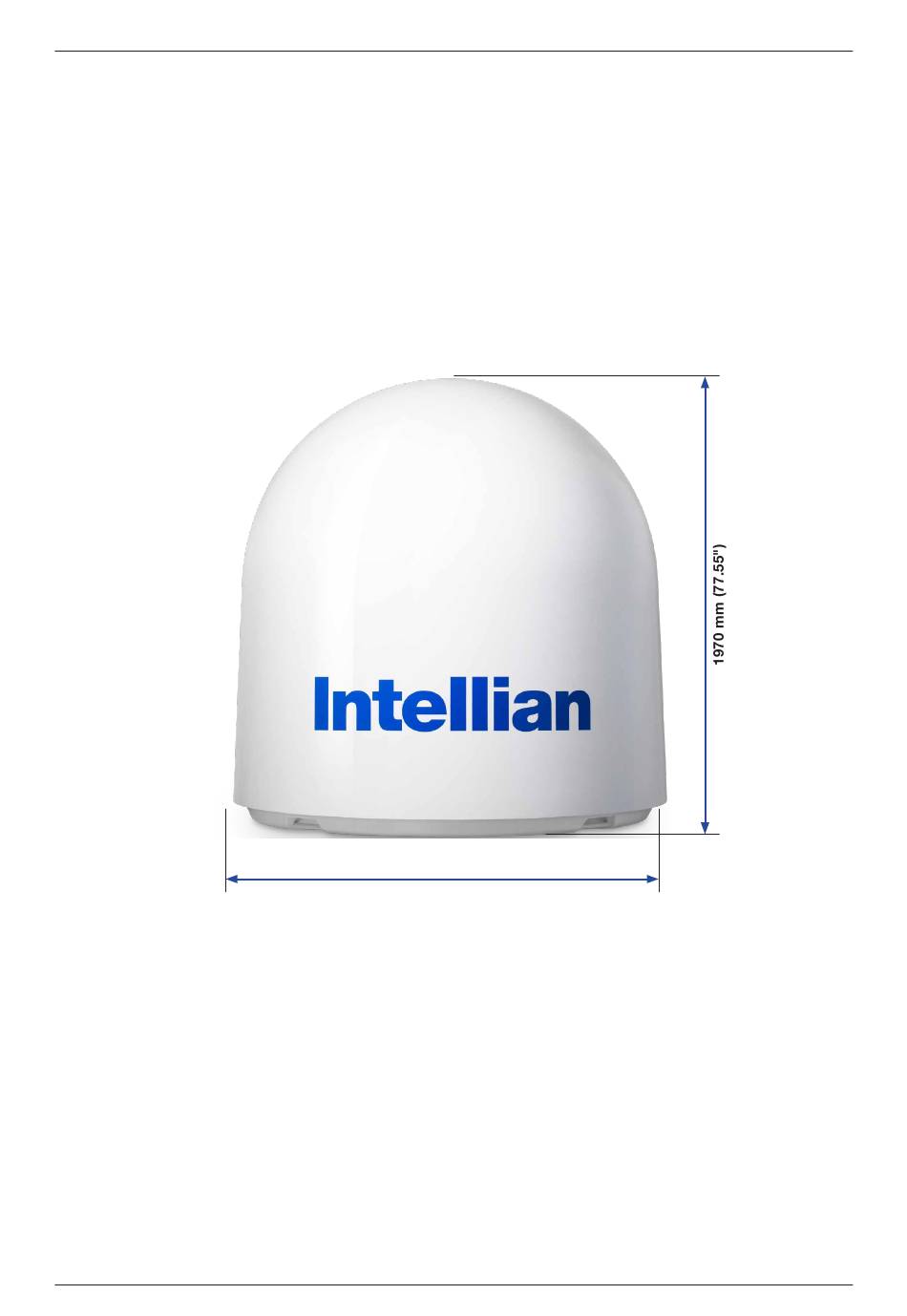

antenna are as shown in the following drawing. It is strongly suggested that the installation is conducted using
a crane.
Ø1900 mm (74.80")
Figure: Antenna Dimensions
