Diagnosis

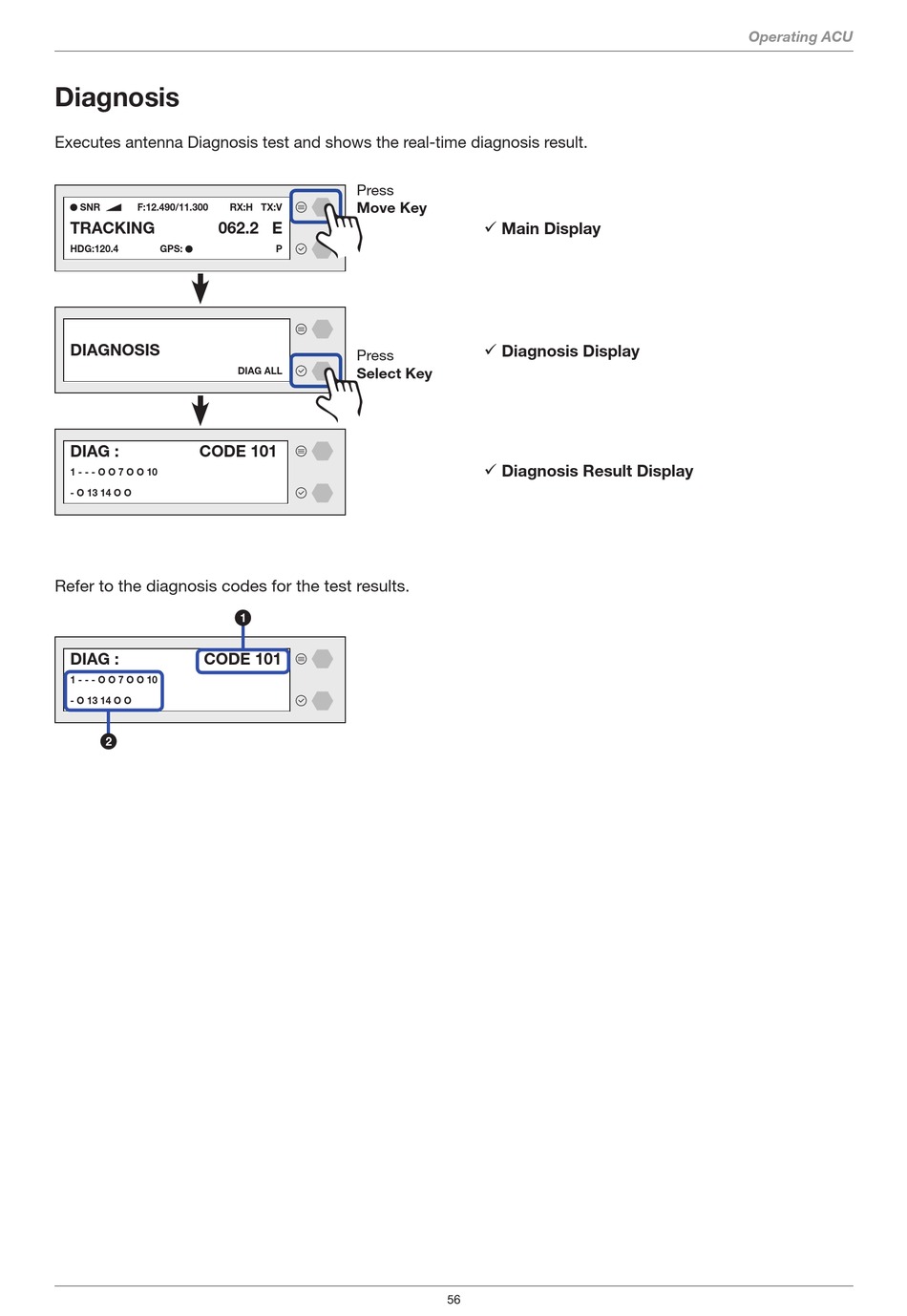

Executes antenna Diagnosis test and shows the real-time diagnosis result.
SNR F:12.490/11.300
TRACKING 062.2 E
HDG:120.4 GPS:
DIAGNOSIS
DIAG : CODE 101
1 - - - O O 7 O O 10
- O 13 14 O O
Refer to the diagnosis codes for the test results.
DIAG : CODE 101
1 - - - O O 7 O O 10
- O 13 14 O O
2
Press
Move Key
RX:H TX:V
P
Press
DIAG ALL Select Key
1
ü Main Display
ü Diagnosis Display
ü Diagnosis Result Display
56
