9.4 Top Menus

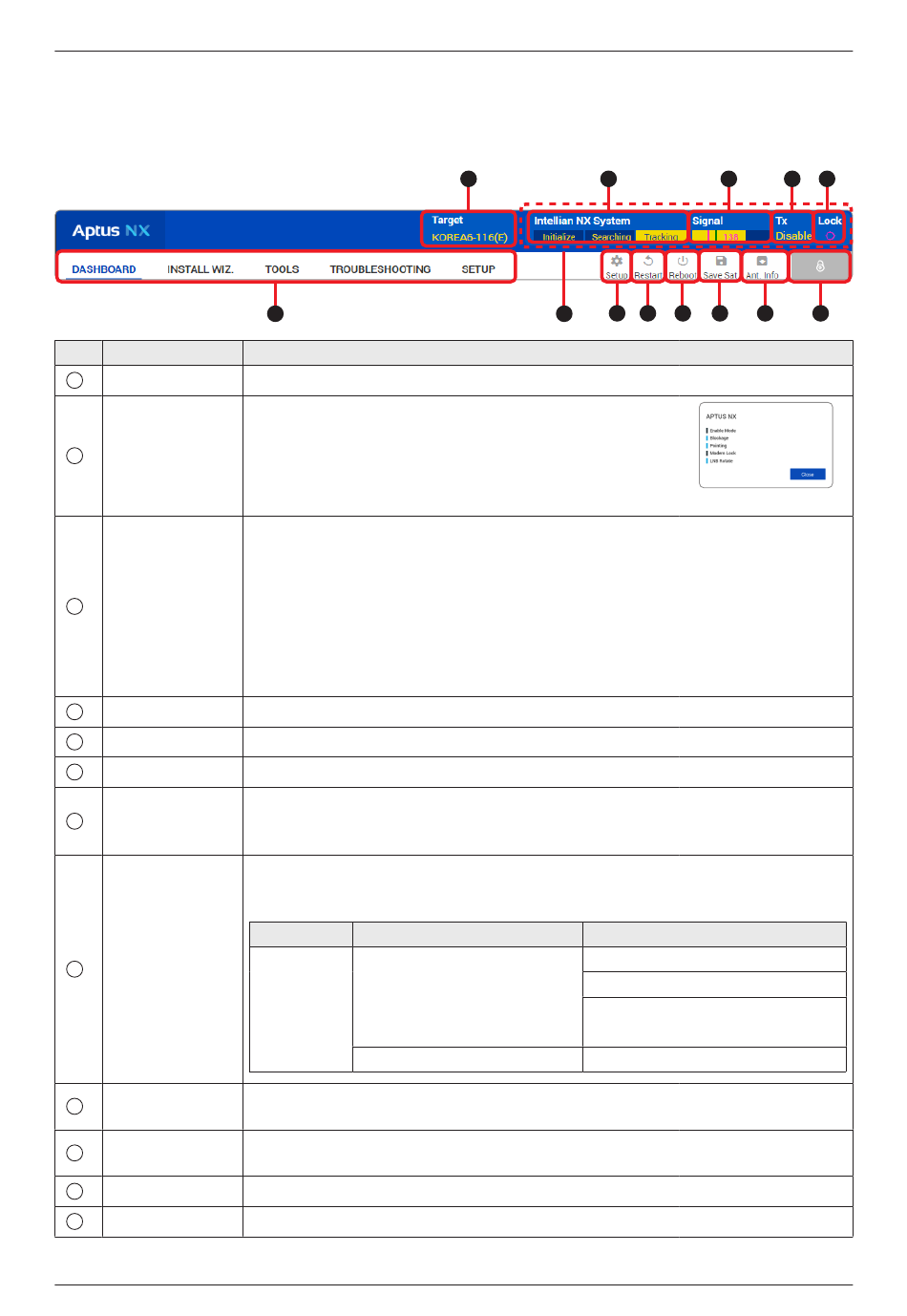

Once you log in, the following information and menus are displayed.
No. Item
Target Satellite
1
Quick Status
2
Screen Area
Antenna Status
3
Info
Signal Level
4
Tx Status
5
Lock
6
Main Menu
7
Setup
8
Restart
9
Reboot
10
Save Sat.
11
Ant. Info
12
7
Description
Displays the name of the targeted satellite.
When clicking this top menu area (marked as red dots),
the Quick Status Screen appears. You can quickly
monitor each status of the five items through the screen
(Blue: enable, Black: disable).
Displays the antenna status through a yellow indicator in the SETUP mode.
• Initialize: the antenna system is initialized.
• Searching: the antenna is searching the target satellite.
• Tracking/Unwrap
- Tracking: the antenna is tracking the target satellite.
- Unwrap: in the tracking mode, antenna automatically controls adjustment
of the AZ angle within the limits of movement of the AZ control means to
avoid the risk of cable twist.
Displays the current signal level.
Displays whether the antenna is able to transmit data or not.
Displays whether the satellite is locked or not.
Selects the Main Menu (DASHBOARD, INSTALL WIZ, TOOLS,
TROUBLESHOOTING, SETUP). Each main menu offers side menus on the left of
the screen.
Enters the setup mode to modify settings. The following functions are available
only in setup mode.
Main Menu Side Menu
SETUP Antenna
Backup & Restore Setting
The antenna system exits the Setup mode and switches to the normal mode
(Searching/Tracking mode).
The antenna system powers off and restarts. After system initialization, the
antenna switches to normal mode (Searching/Tracking mode).
Saves bow offset.
Obtains current antenna information.
1 3
2 8
Function
Antenna Angle
Conical Scan Range Check
Antenna Mode
• Sets Idle Mode
Antenna Restore
56
4 5
9 10 11 12 13
<Quick Status Screen>
6
