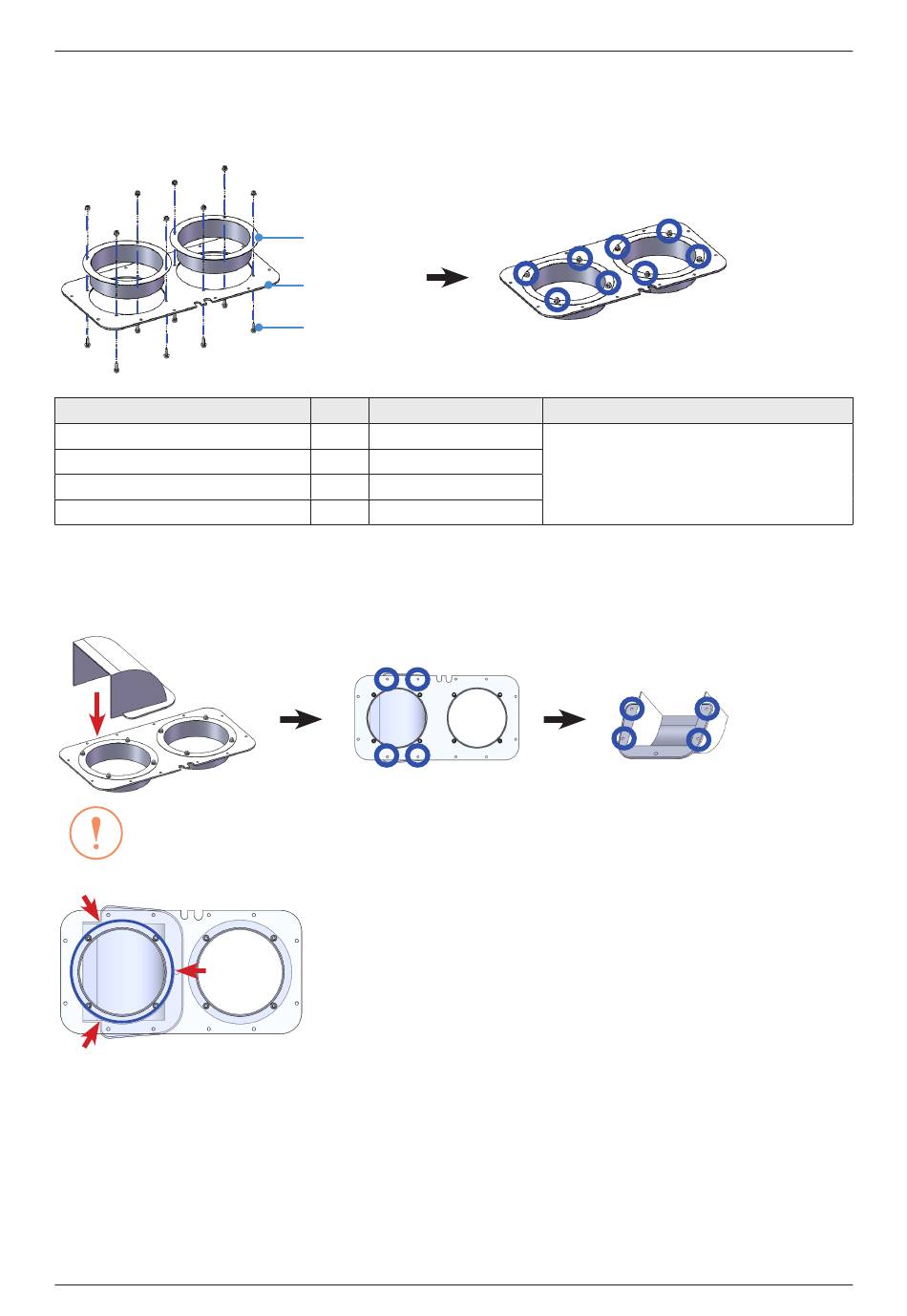

6.2 Assembling Duct Plate Assembly
Assemble the duct plate assembly including duct plate and duct flange using the M4x12L (8EA) hex head
wrench bolt.
Description
Hex Head Wrench Bolt
Spring Washer
Flat Washer
Nut
6.3 Drilling Duct Hood
To assemble the duct hood, the duct hood must have the Ø5.5 hole (4EA). Place the duct hood on the duct
plate then drill the Ø5.5 hole (4EA) by using a drill.
CAUTION
When placing the duct hood on the duct plate, the duct flange must be completely covered inside the
duct hood.
CAUTION
Duct Flange
Duct Plate
M4x12L Bolt
(8EA)
Q'ty Size
8 M4x12L
8 M4
10 M4
8 M4
B-8
Appendix B. Assembling Air-Conditioner (Optional)
Remarks
Bolt Kit for Duct Plate Assembly
