5. Connect the "RF Cable" to the cable connector on the Power Switch Unit inside the radome . Connect the "AC
Power Cable" to the cable connector on the Power Circuit Brake Box inside the radome . Ensure the cable is
firmly fastened to the connector. After connecting the cables, adjust the cable length then fix the cables on
the cable holders by using cable ties. When all cables have been installed turn on the power switch.
WARNING
Ensure that the power switch is off during installation. When all cables have been installed turn on the
power switch.
WARNING
Cable Holders
Installed Cables
Power Switch Unit
RF Cable: Rx,
Tx, DC Power
(From ACU)
Cable Connections on Power Switch Unit
6. Fully tighten the existing cable glands on the base of radome which are assembled temporarily in the previous
step. Then put the radome hatch in the right place and close the radome hatch by pushing at the center of
the hatch button (4 EA).

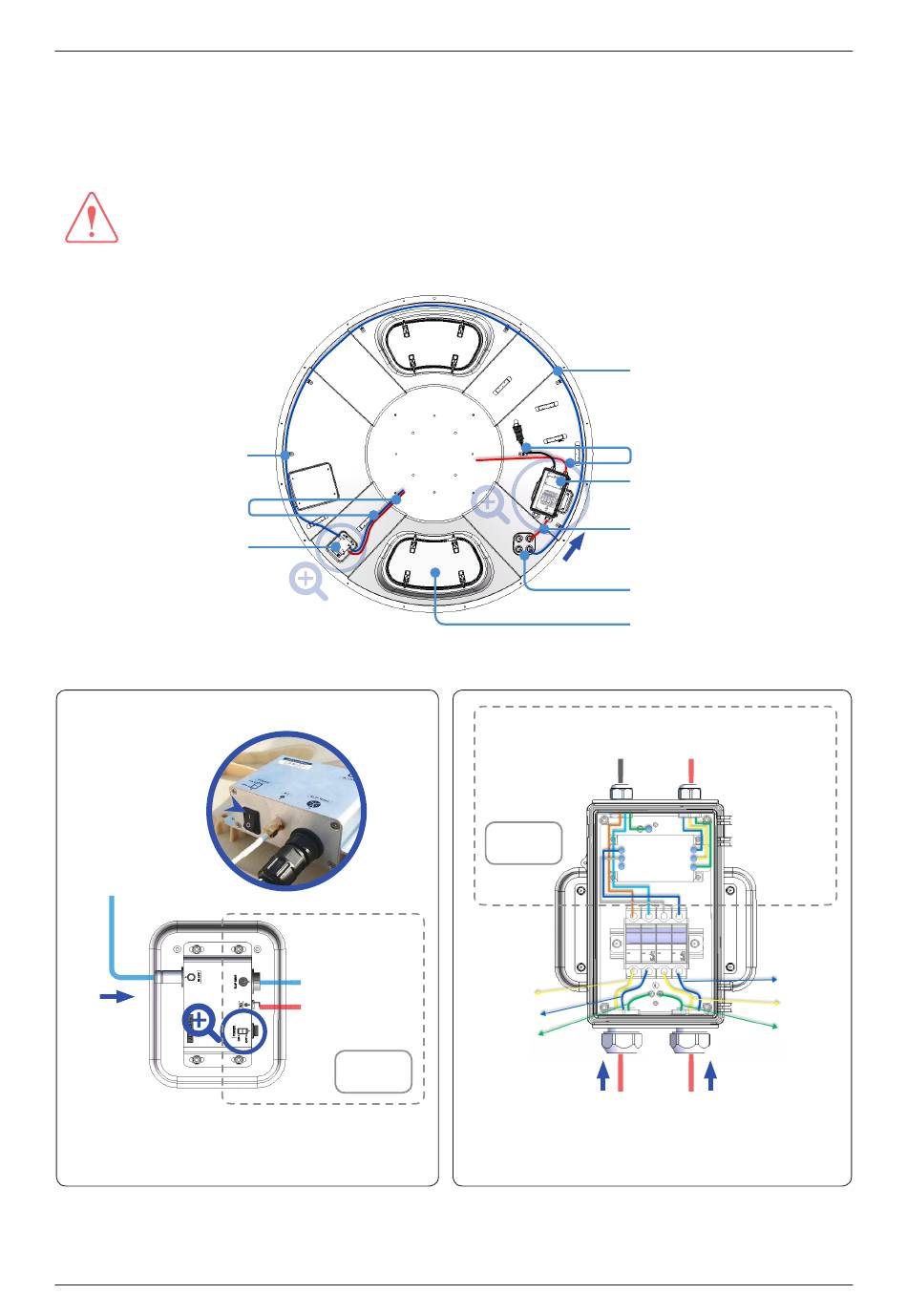

Inside Radome Bottom View
DC Power Cable
(To Antenna)
RF Cable
(To Antenna)
Installed
Cables
Cable Connections on Power Circuit Brake Box
26
TX, RX, 48V DC Power
Cable (4200 mm)
(From ACU)
Installed Cables
Power Circuit Brake Box
AC Power Cable
for Antenna
(From Ship's Power)
Cable Entry Apertures
Radome Hatch in Use
AC Power Cable
(To Air-con)
FG
Installed
N
Cables
L
FG
L
N L
L
N
FG
AC Power Cable
for Air-con (optional)
(From Ship's Power)
Installing Antenna
AC Power Cable
(To Antenna)
N
L
FG
N
N
L
FG
AC Power Cable
for Antenna
(From Ship's Power)
