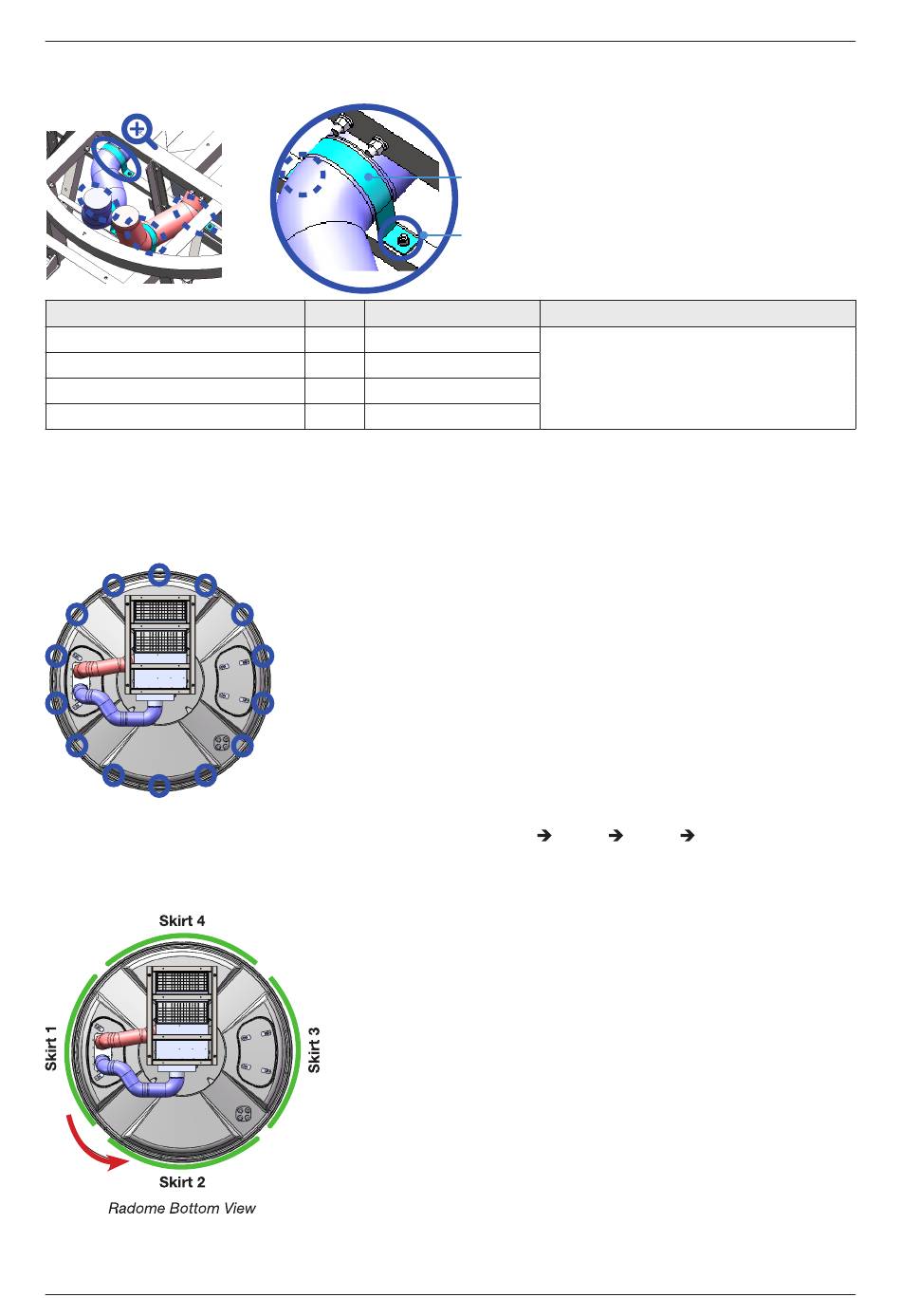

3. Lock each duct hose in place with the saddle band using M8x20L (8EA) hex head wrench bolt.
Description
Hex Head Wrench Bolt
Spring Washer
Flat Washer
Nut
10. Assembling Radome Skirt
1. Remove the all radome bottom M6x40L bolts (14EA) connected to radome top temporarily . Keep the bolts
in a safe place for the next step. When assembling radome skirt, radome bottom, and radome top together,
this bolt must be re-used.
2. Bring the radome skirt (4EA), and place them in order (Skirt 1
assembled to the bottom radome indicated the BOW mark for the first time. Assemble the radome skirt under the
radome bottom using the M6x40L
Saddle Band
(4EA)
M8x20L Bolt
(8EA)
Q'ty Size
8 M8x20L
8 M8
16 M8
8 M8
bolts (14EA) which are removed temporarily in the previous step.
B-12
Appendix B. Assembling Air-Conditioner (Optional)
Remarks
Bolt Kit for Saddle Band
Skirt 2 Skirt 3 Skirt 4). The Skirt 1 is
