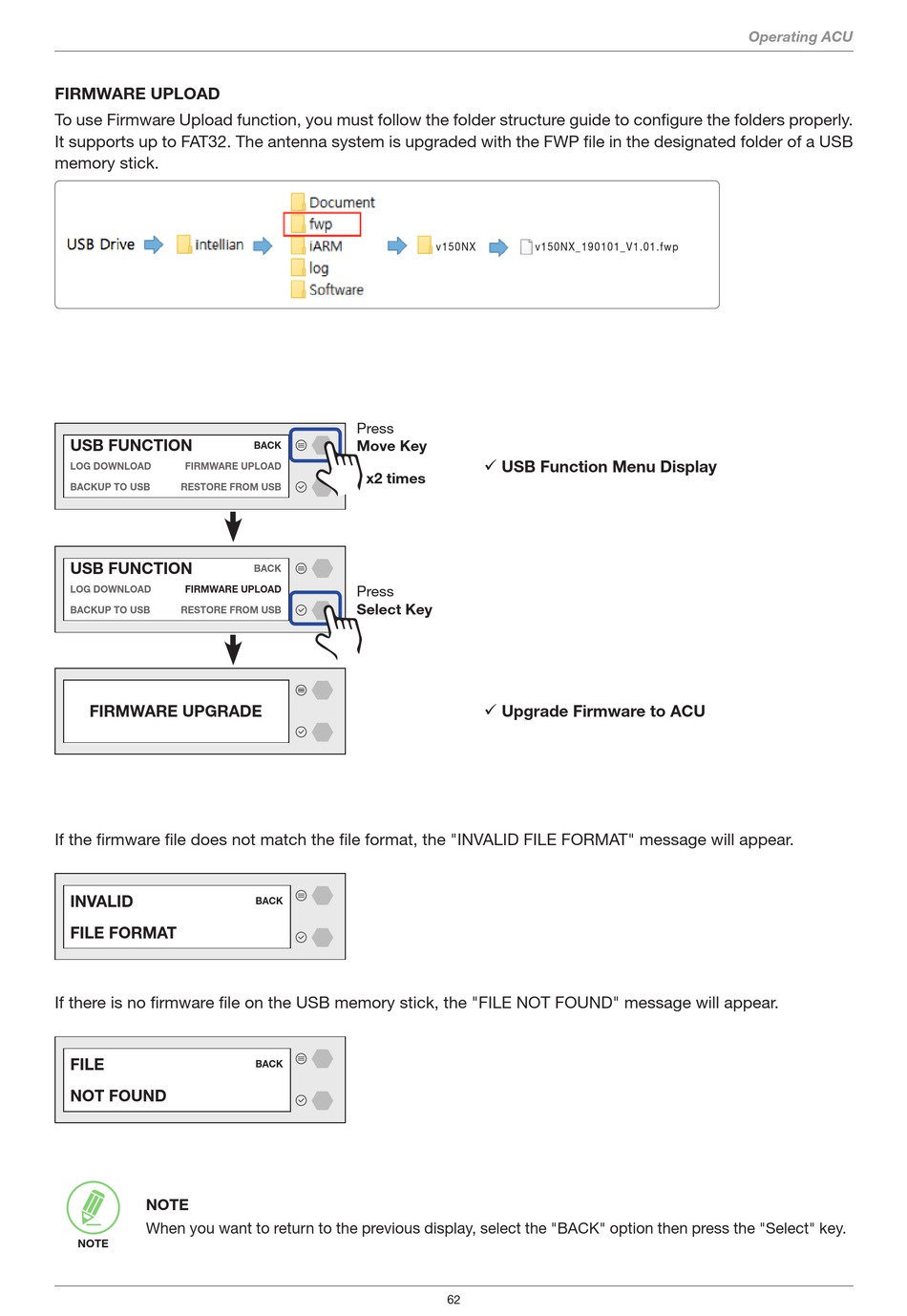

FIRMWARE UPLOAD
To use Firmware Upload function, you must follow the folder structure guide to configure the folders properly.
It supports up to FAT32. The antenna system is upgraded with the FWP file in the designated folder of a USB
memory stick.
USB FUNCTION
LOG DOWNLOAD FIRMWARE UPLOAD
BACKUP TO USB RESTORE FROM USB
USB FUNCTION
LOG DOWNLOAD FIRMWARE UPLOAD
BACKUP TO USB RESTORE FROM USB
FIRMWARE UPGRADE
If the firmware file does not match the file format, the "INVALID FILE FORMAT" message will appear.
INVALID
FILE FORMAT
If there is no firmware file on the USB memory stick, the "FILE NOT FOUND" message will appear.
FILE
NOT FOUND
NOTE
When you want to return to the previous display, select the "BACK" option then press the "Select" key.
NOTE
Press
Move Key
BACK
x2 times
BACK
Press
Select Key
BACK
BACK
v150NX v150NX_190101_V1.01.fwp
ü USB Function Menu Display
ü Upgrade Firmware to ACU
