Mast Designing (Installation Example)

The ADU mast must be designed to carry the weight of the ADU unit. The mast must also be able to withstand
on-board vibrations and wind speeds on the radome.

When Placing Cable Outside Mast

50 mm (1.97")
50 mm (1.97")
BOW
Direction
247.5 mm (9.74")
4-Ø14 mm (0.55") Holes
Ø650 mm (25.59")
Ø650 mm (25.59")
Ø300 mm (11.81")
170 mm
(6.69")
10 mm (0.39")

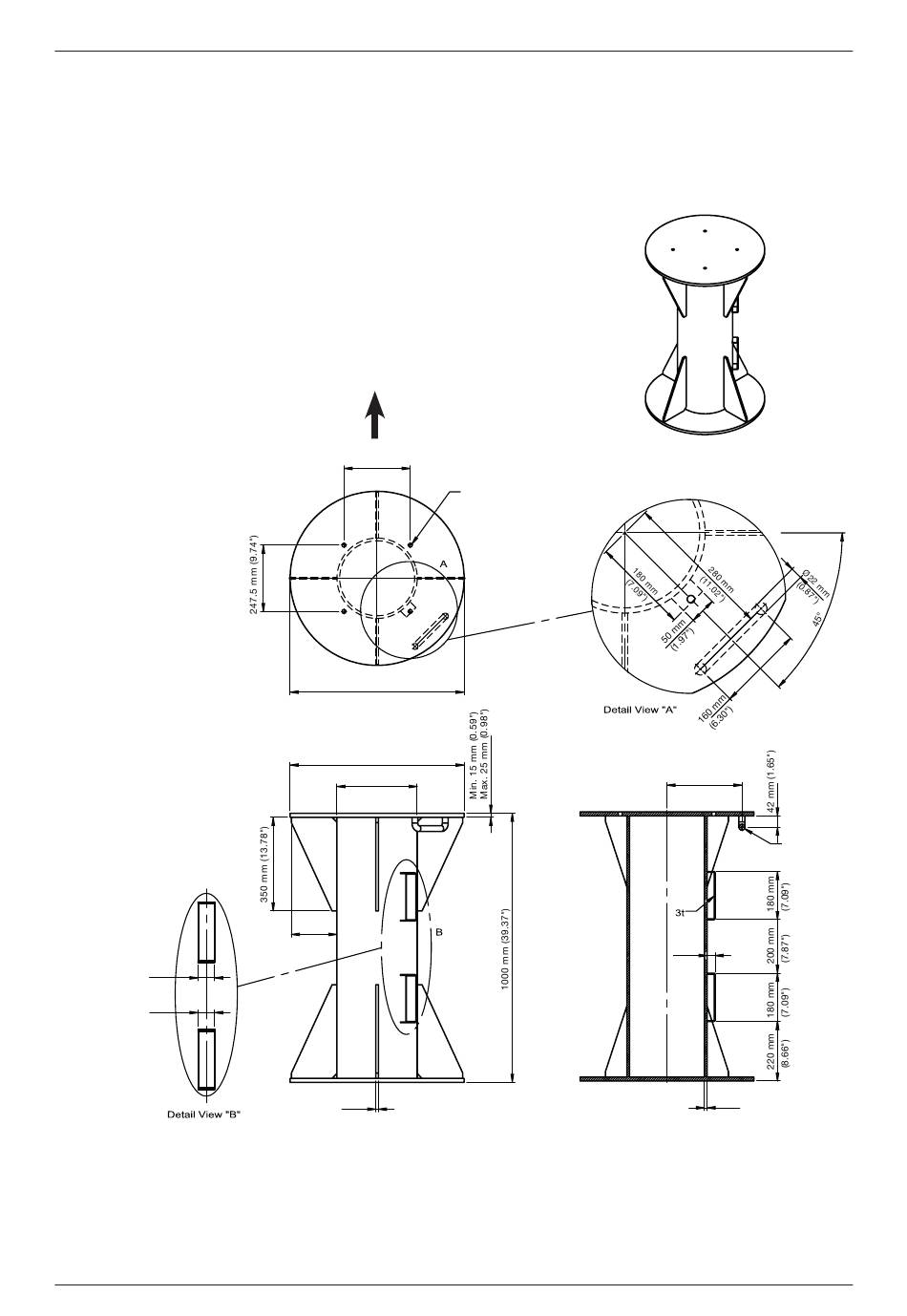

Figure: Recommended Size of Mast
15
Planning Installation
280 mm (11.02")
Ø22 mm (0.87")
30 mm
(1.18")
10 mm (0.39")
