Mast Designing (Installation Example)
The ADU mast must be designed to carry the weight of the ADU unit. The mast must also be able to withstand
on-board vibrations and wind speeds on the radome.
Option1. When Placing Cable Inside Mast
BOW
ø110mm (4.3")
ø200mm (7.87")
BOW
247.5mm (9.74")
Gooseneck
ø45mm (1.77")

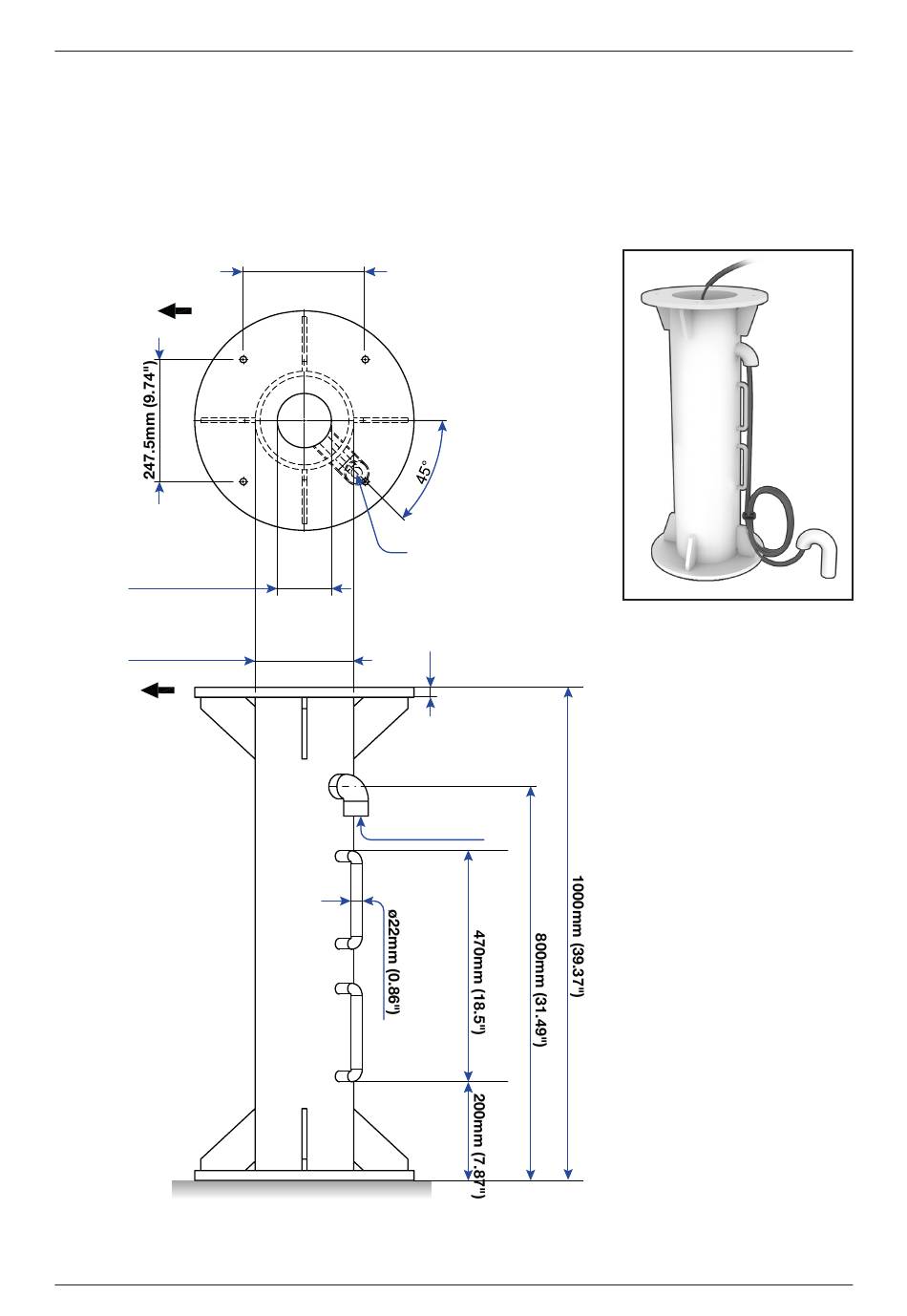

Figure: Recommended Size of Mast (Option1)
Min. 10mm (0.4")
Max. 20mm (0.8")
