Hardware FRU procedures
Remove the BOSS card from expansion card riser 1
VxFlex Ready Node R840 Hardware Field Replacement Unit and Service Manual
60

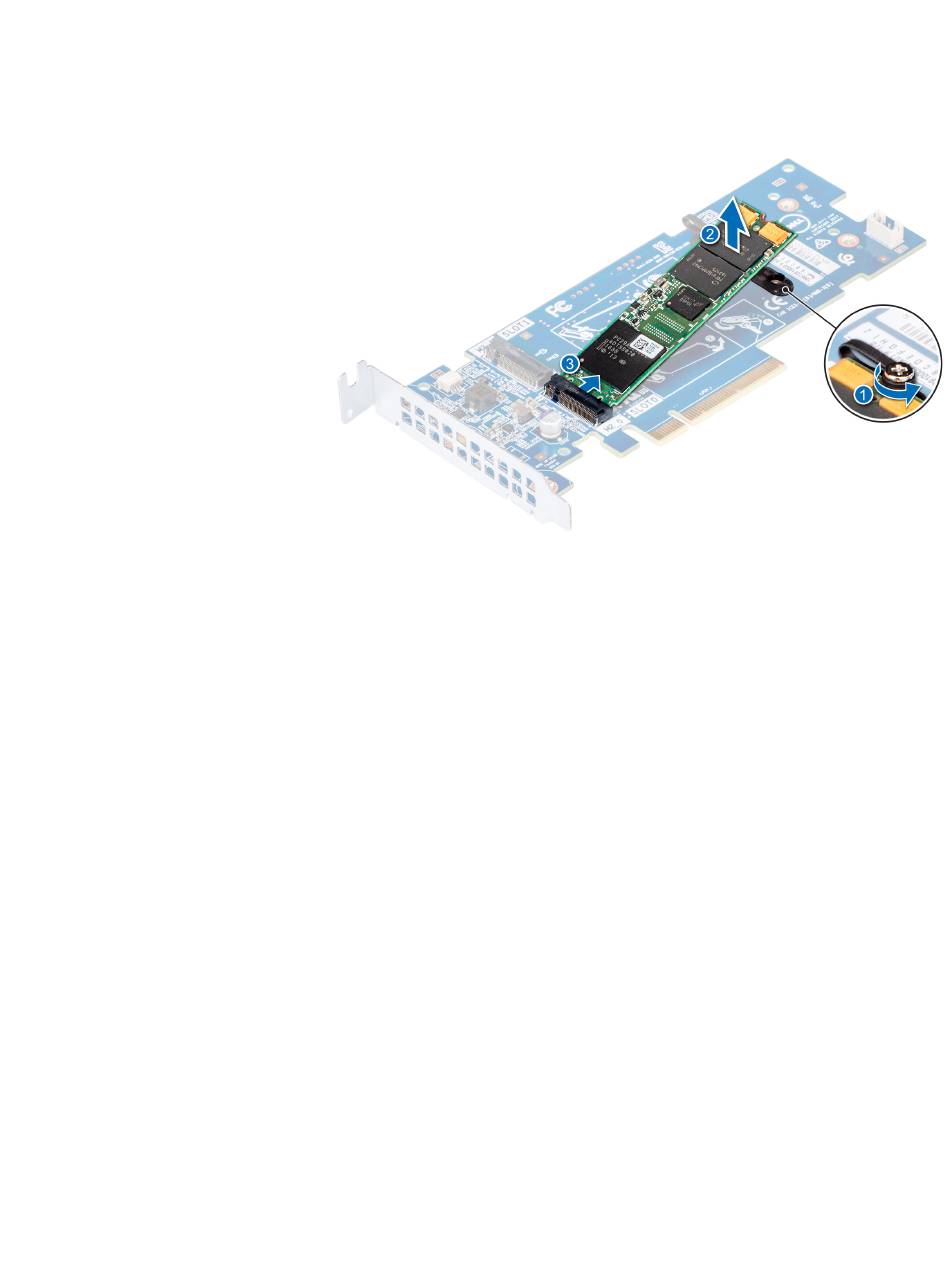

Figure 9 Removing the M.2 module
1. module connector (2)
2. screws (2)
3. modules (2)
Before you begin
Follow all safety guidelines.
Procedure
1. Pull the expansion card latch out of the slot.
2. Hold the BOSS card by its edges, and pull the card until the card edge
connector disengages from the expansion card connector on the riser.
