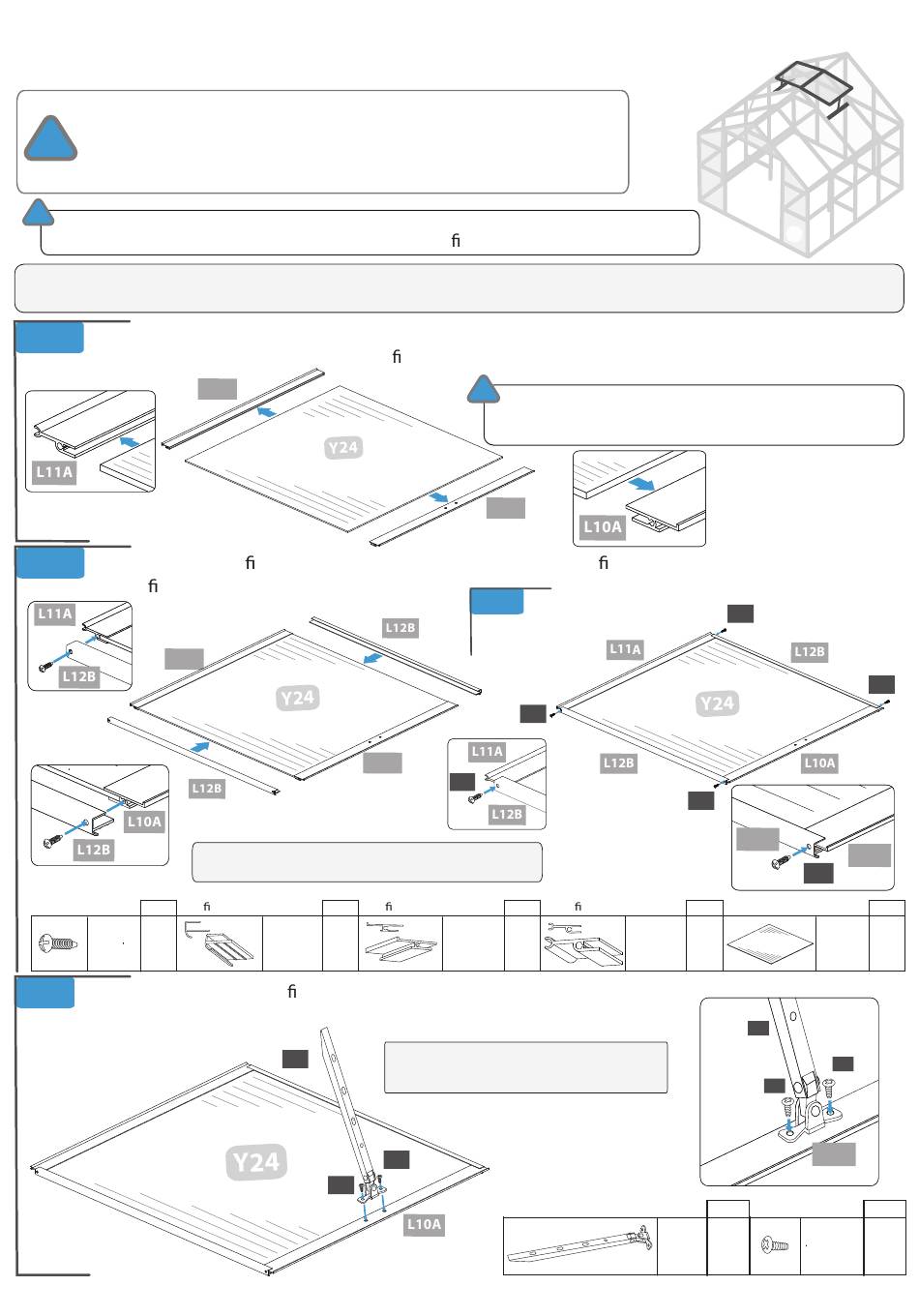

Assemble and Install Roof Vents

Place all the parts for both roof vents and handles on a level surface.
Make sure the pieces are in the correct positions before assembling.
!
Carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including work shoes, gloves and goggles.
!
The roof vents are assembled with the outside face to the ground. ALL VIEWS
ARE SHOWN FROM INSIDE. Assemble BOTH vents rst and then add the handles.
IMPORTANT: This greenhouse is equipped with one MANUAL vent handle (S25 installed in step10.3) and one
AUTOMATIC vent handle (auto vent opener installed in step 10.10). The auto vent opener is packed separately.
Remove protective plastic from both sides of panels Y24. Place side to face toward the sun facing
10.1
down. Fit panels into channels of pro les L10A and L11A.
10.2A Fit panel and pro les L10A and L11A into channels of pro les L12B. Make sure holes in ends
of pro les line up.
L11A
Pro le
Screw
QTY
#S26 8
Attach handle S25 to pro le L10A with two S24 screws. NOTE: You will
10.3
install the handle to the second vent in step 10.10.
www.stcny.com
L11A
L10A
NOTE: ALL VIEWS ARE FROM INSIDE.
Pro le
QTY
#L12B 4
S25
S24
!
Remove protective plastic from EACH side of poly carbonate
panels before installing. Dispose of plastic properly. Install with
side labeled "Face this side towards the sun" FACING DOWN.
L10A
Secure with four
10.2B
S26 screws.
S26
S26
Pro le
QTY
#L10A 2
IMPORTANT: hollow side of handle
S25 faces down when attached.
S24
Handle
44 of 55
S26
S26
L12B
Panel
QTY
#L11A 2
S25
S24
Screw
QTY
#S25 1
S26
L10A
S26
QTY
#Y24 2
S24
L10A
QTY
#S24 2
