STC Easy2Build Easy-Grow 8' x 8' Assembly Instructions Manual page 23

3.4A

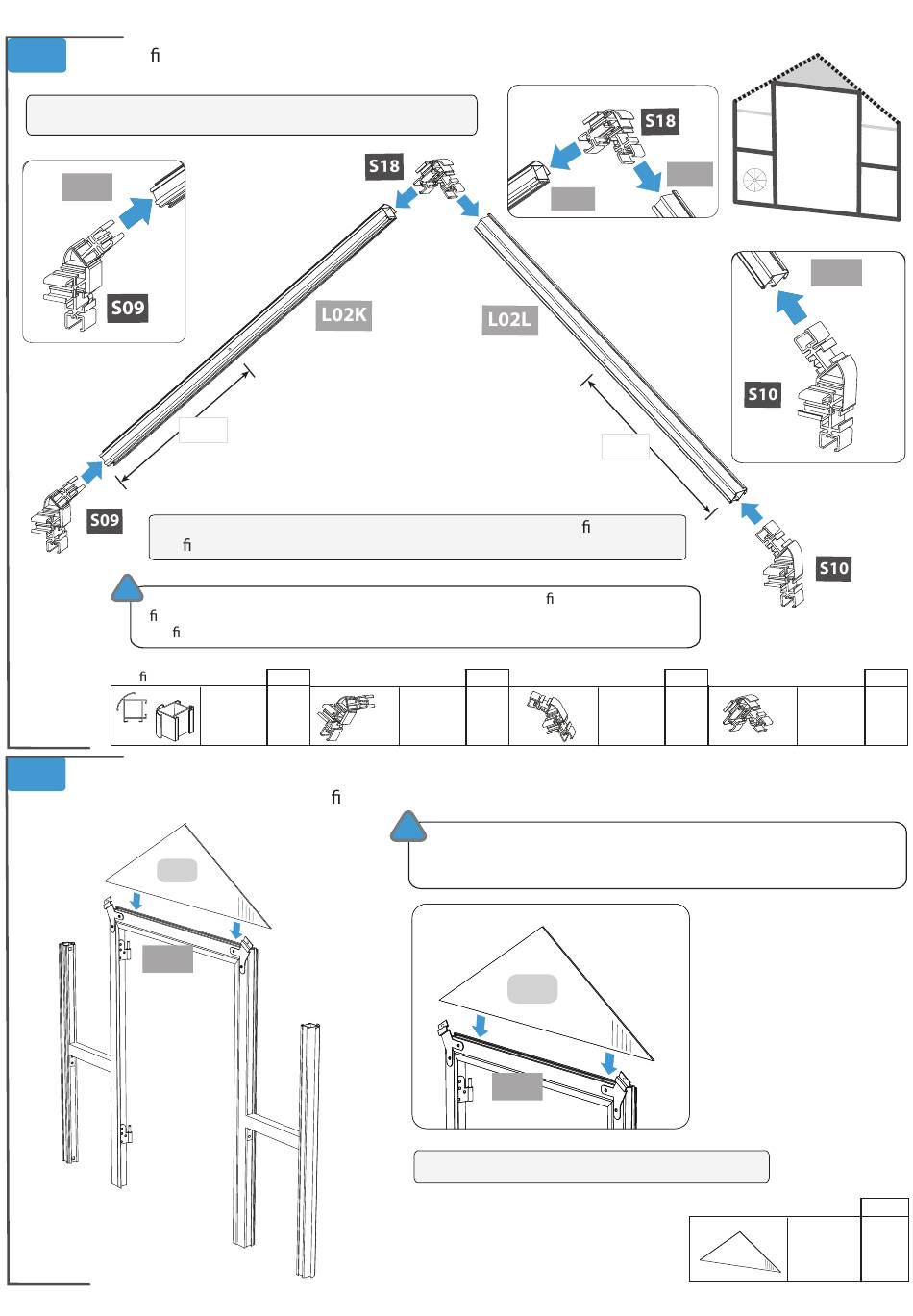

Slide pro les L02K and L02L into connectors S09, S18 and S10 until they click into place.
Connectors S09, S10 and S18 CLICK into place.
L02K
IMPORTANT: The holes are not at the midpoint of the pro les. Arrange
pro le so the 26.5" portion will be the bottom when standing.
!
There is only one way to properly fasten connectors into pro les. Line up parts
rst to ensure correct placement. Slide connectors until they CLICK securely into
pro le. Use WD40 or liquid soap if pieces do not easily slide together. Wear gloves.
Pro le
3.4B
Remove protective plastic from both sides of panel Y20. Place side to face toward the sun facing down.
Fit panel into V-channel on pro le L06.
Y20
L06J
www.stcny.com
26.5"
(676 mm)
Connector
QTY
#L02K 1
#L02L 1
L02K
Connector
QTY
#S09 1
!
Remove protective plastic from EACH side of poly carbonate
panels before installing. Dispose of plastic properly. Install with
side labeled "Face this side towards the sun" FACING DOWN.
Y20
L06J
NOTE: ALL VIEWS ARE FROM INSIDE.
21 of 55
L02L
26.5"
(676 mm)
Connector
QTY
#S10 1
Panel
L02L
QTY
#S18 1
QTY
#Y20 1
