Assemble Back - STC Easy2Build Easy-Grow 8' x 8' Assembly Instructions Manual

Assemble Back

Place all the parts for the back face on a level surface.
Make sure the pieces are in the correct positions before assembling.
!
Carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including work shoes, gloves and goggles.
!
The back is assembled with the outside face to the ground. ALL VIEWS ARE SHOWN FROM INSIDE.

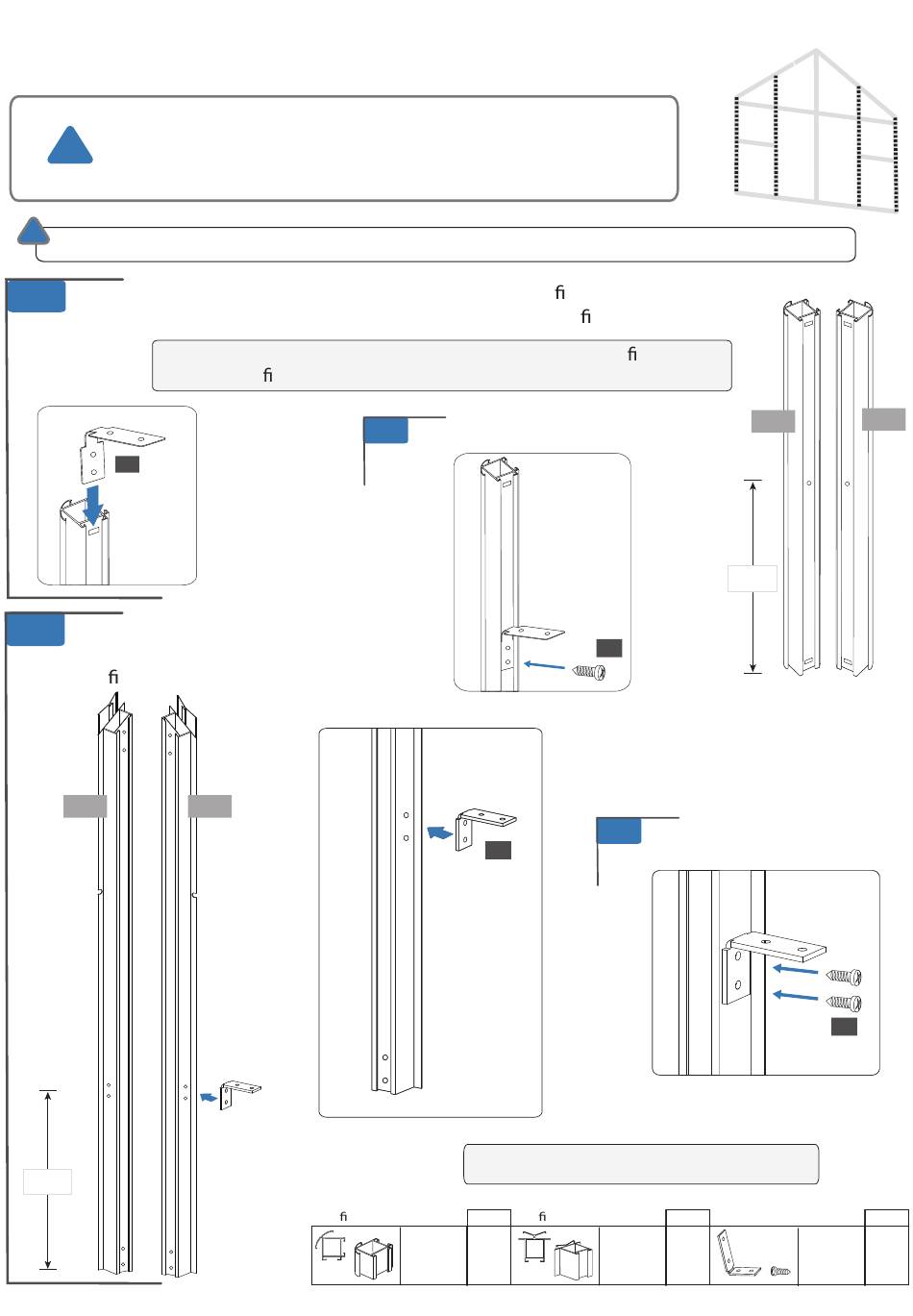

Slide short side of connector S01 into channels of pro les L02A and L02B.
1.1A
Line up last hole on connector S01 with hole in each pro le.
IMPORTANT: The holes are not at the midpoint of the pro le.
Arrange pro le so the 28" portion will be the bottom when standing.
S01
1.2A
Line up bottom hole on short side of
connectors S01 with hole on side of
pro les L03C and L03D.
L03C
28"
(711 mm)
www.stcny.com
L03D
Pro le
Secure with S02 screws.
1.1B
S01
NOTE: ALL VIEWS ARE FROM INSIDE.
Pro le
QTY
#L02A 1
#L02B 1
6 of 55
L02A
28"
(711 mm)
S02
1.2B
Secure with S02 screws.
Connector
QTY
#L03C 1
1
#L03D
L02B
S02
QTY
#S01 4
#S02 6
