STC Easy2Build Easy-Grow 8' x 8' Assembly Instructions Manual page 31

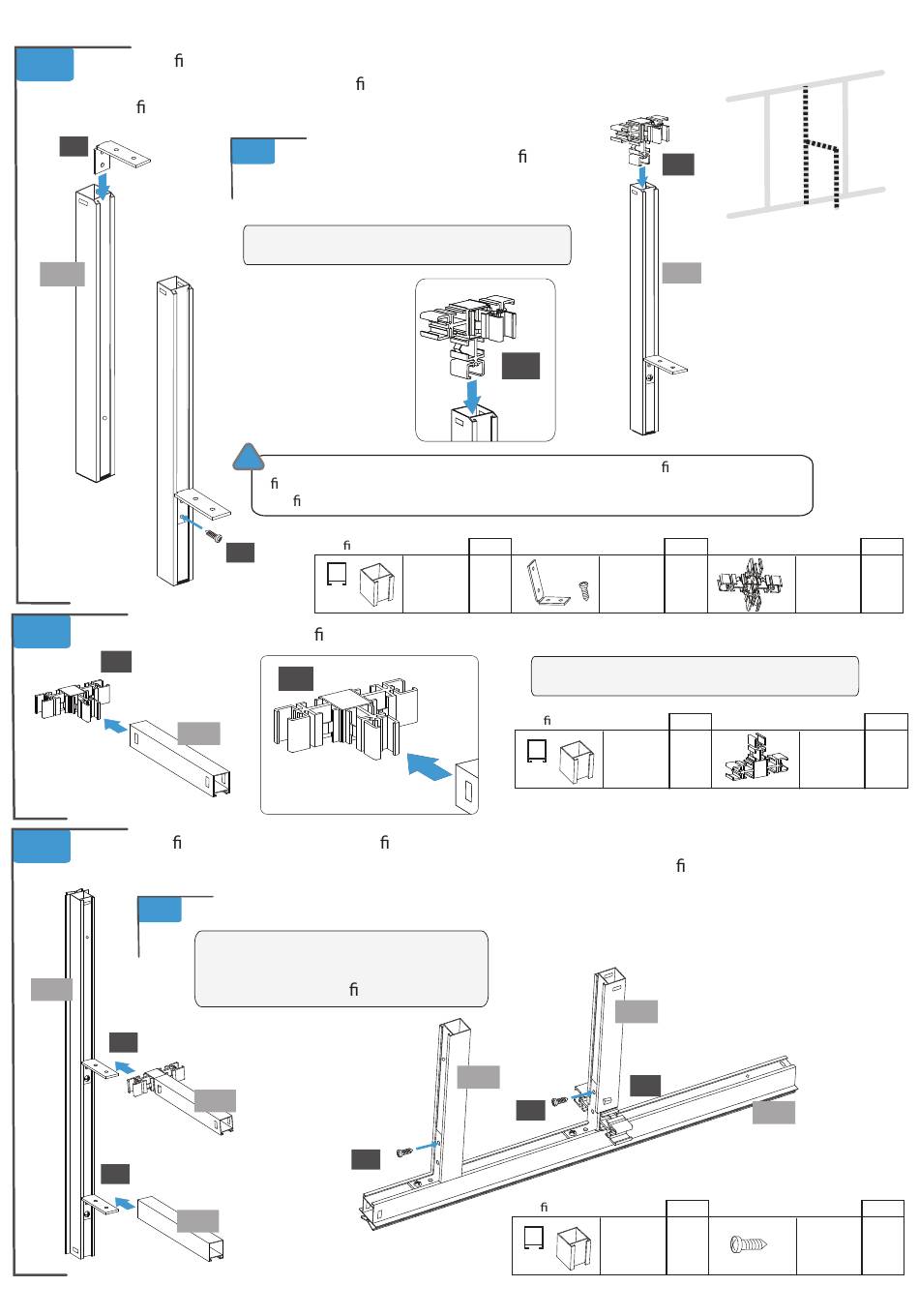

Lay out pro les L04D so the holes are at the same position. Slide short side of
4.5A
connector S01 into channel of pro le, lining the last hole in S01 with the hole
on pro le L04D. Secure with S02 screw.
S01
L04D
4.6
Slide connector S03 into pro le L04B until it clicks into place.
S03
L04B
Attach pro les L04B and L04C to pro le L03A by sliding the long sides of connectors S01 into the
4.7A
channels. The last hole of connector S01 lines up with the holes in the pro les.
4.7B
L03A
S01
S01
L04C
www.stcny.com
4.5B
Slide connector S39 into pro le
L04D until it snaps into place.
Repeat to make two sets.
Connector S39 CLICKS into place.
!
There is only one way to properly fasten connectors into pro les. Line up parts
rst to ensure correct placement. Slide connectors until they CLICK securely into
pro le. Use WD40 or liquid soap if pieces do not easily slide together. Wear gloves.
Pro le
S02
S03
Secure with two S02 screws. Repeat to make two sets.
IMPORTANT: Connector S03 rests
on top of connector S01. S02 screw
secures S03 to pro le L04B.
L04B
S02
S39
Connector
QTY
#L04D 2
Connector S03 CLICKS into place.
Pro le
L04C
S02
Pro le
29 of 55
S39
L04D
Connector
QTY
#S01
2
#S02 2
Connector
QTY
#L04B 2
L04B
S03
L03A
Screw
QTY
#L04C 2
QTY
#S39 2
QTY
#S03 2
QTY
#S02 4
