Assemble Front - STC Easy2Build Easy-Grow 8' x 8' Assembly Instructions Manual

Assemble Front

Place all the parts for the front face on a level surface.
Make sure the pieces are in the correct positions before assembling.
!
Carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including work shoes, gloves and goggles.
!
The front is assembled with the outside face to the ground. ALL VIEWS ARE SHOWN FROM INSIDE.

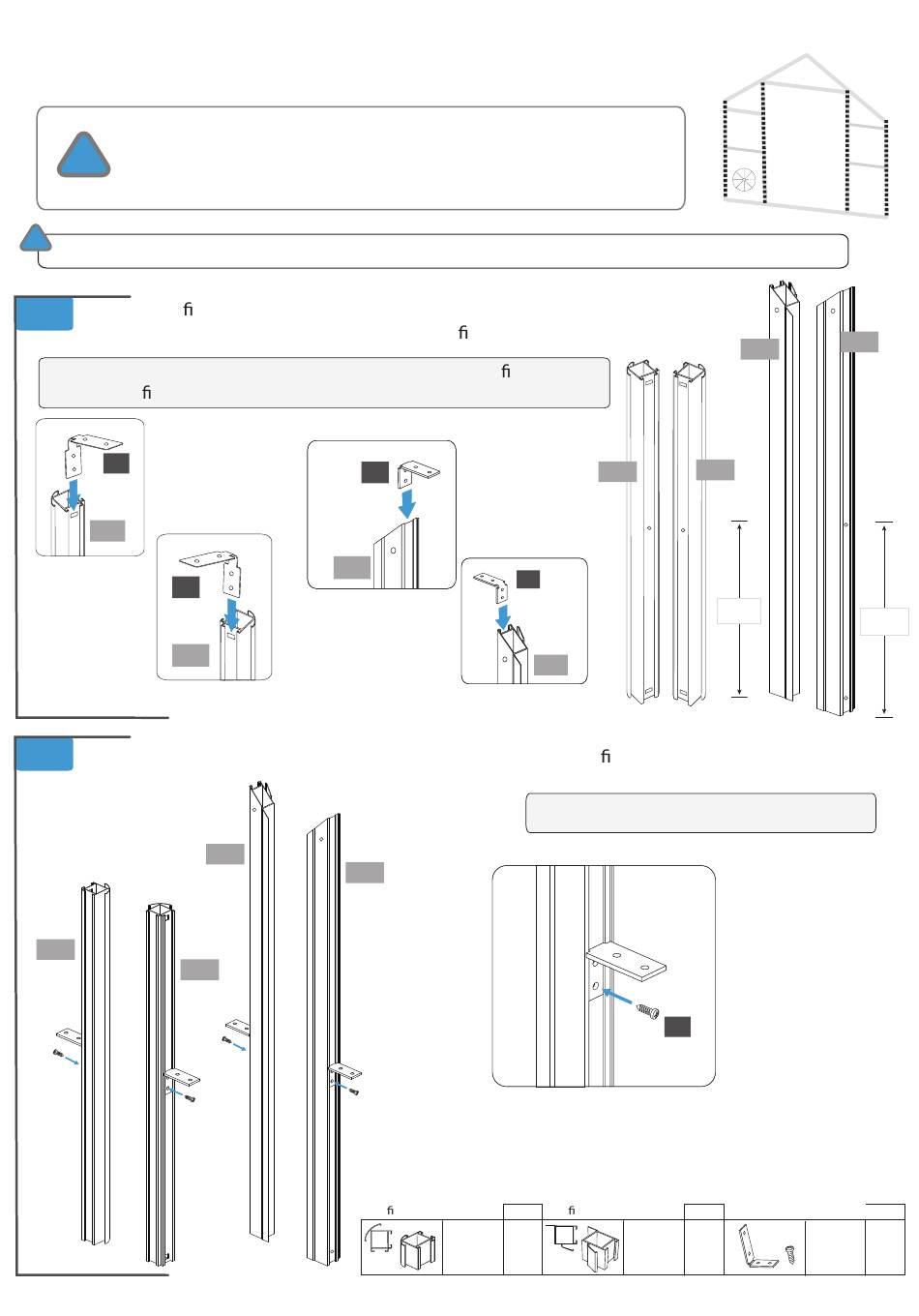

Lay out pro les L02A, L02B, L06A and L06B so all holes line up. Slide short
3.1A
side of connector S01 into channels of pro les L02A, L02B, L06A and L06K.
IMPORTANT: The holes are not at the midpoint of the pro le.
Arrange pro le so the 28" portion will be the bottom when standing.
S01
L02A
S01
L02B
3.1B
Line up lower hole on connector S01 with hole in each pro le and secure with S02 screws.
L02A
L02B
www.stcny.com
S01
L06A
L06K
L06A
Pro le
S01
L06K
NOTE: ALL VIEWS ARE FROM INSIDE.
Pro le
QTY
#L02A 1
#L02B 1
19 of 55
L06K
L02B
L02A
28"
(711 mm)
S02
Connector
QTY
#L06A 1
#L06K 1
L06A
28"
(711 mm)
QTY
#S01 4
#S02 4
