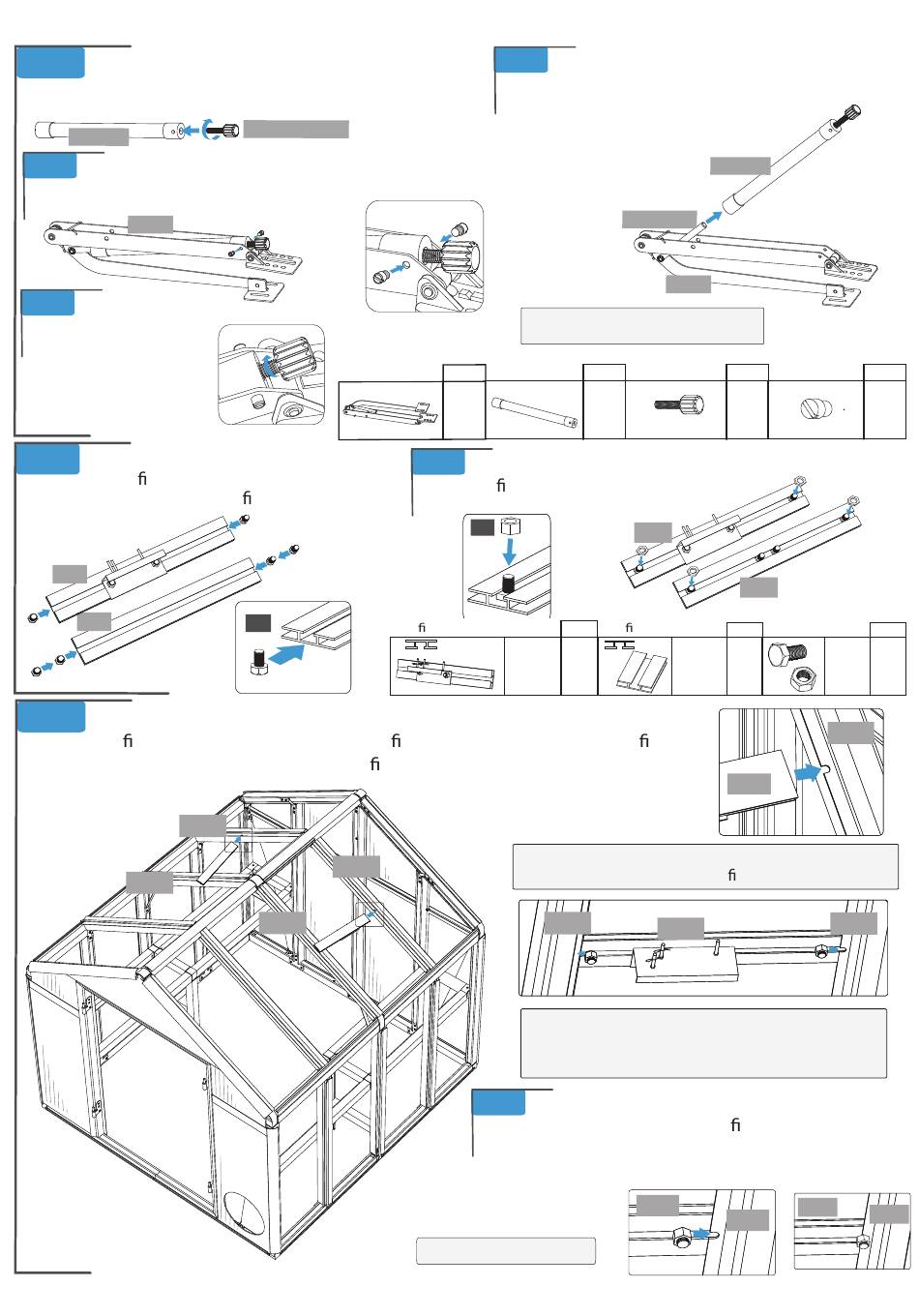

STC Easy2Build Easy-Grow 8' x 8' Assembly Instructions Manual page 47

Unpack contents of Auto Vent Opener. Screw
10.4A
assembly knob partially into threaded end of
cylinder. Do NOT tighten.
cylinder
Continue pushing cylinder until the holes in the end of the cylinder
10.4C
line up with the holes in arm A. Push arms apart if necessary. Secure
with a threaded stud on each side.
arm A
Turn the adjusting
10.4D
screw clockwise
until the arms
are aproximately
15cm (6") apart.
10.5A
Slide two S13 hex bolts into channel
of pro le L05D and four S13 hex bolts
into channel of pro le L05G.
L05D
L05G
10.6A
With pins facing up on the inside of the greenhouse, slide one end of
pro le L05D into V-channel of pro le L03P. Angle it slightly to t the
other end into V-channel of pro le L03Q.
L03O
L03N
www.stcny.com
adjusting knob
Handle
10.5B
S13
Pro le
L03P
L03Q
Fit piston rod connected to arm B into the end
10.4B
of the cylinder. Turn cylinder so the holes
next to the adjusting knob are visible.
NOTE: The Auto Vent Opener will
be installed to the vent in step 10.10
Cylinder
QTY QTY
1
Screw two S14 hex nuts onto bolts on ends of each
pro le. Do not completely tighten.
S14
QTY
#L05D 1
IMPORTANT: Make sure the pins face UP on INSIDE
of the greenhouse when pro le L05D is installed.
L03P
NOTE: L05D has two hairpin clips used to secure
the handle of the vent to prevent it from moving
in high winds. See Step 10.9C for more details.
Line up L05D channel with U-shaped
10.6B
cutouts in sides of pro les L03P and L03Q.
Slide hex nut and bolts into U-shaped
notches and tighten securely.
VIEWS FROM INSIDE.
45 of 55
cylinder
piston rod
arm B
Adjusting Knob
QTY
1 1
L05D
L05G
Pro le Bolt / Nut
QTY
#L05G 1
L05D
L05D
L05D
L03Q
Threaded Stud
QTY
2
QTY
#S13 6
#S14 4
L03P
L03Q
L05D
L03Q
