STC Easy2Build Easy-Grow 8' x 8' Assembly Instructions Manual page 28

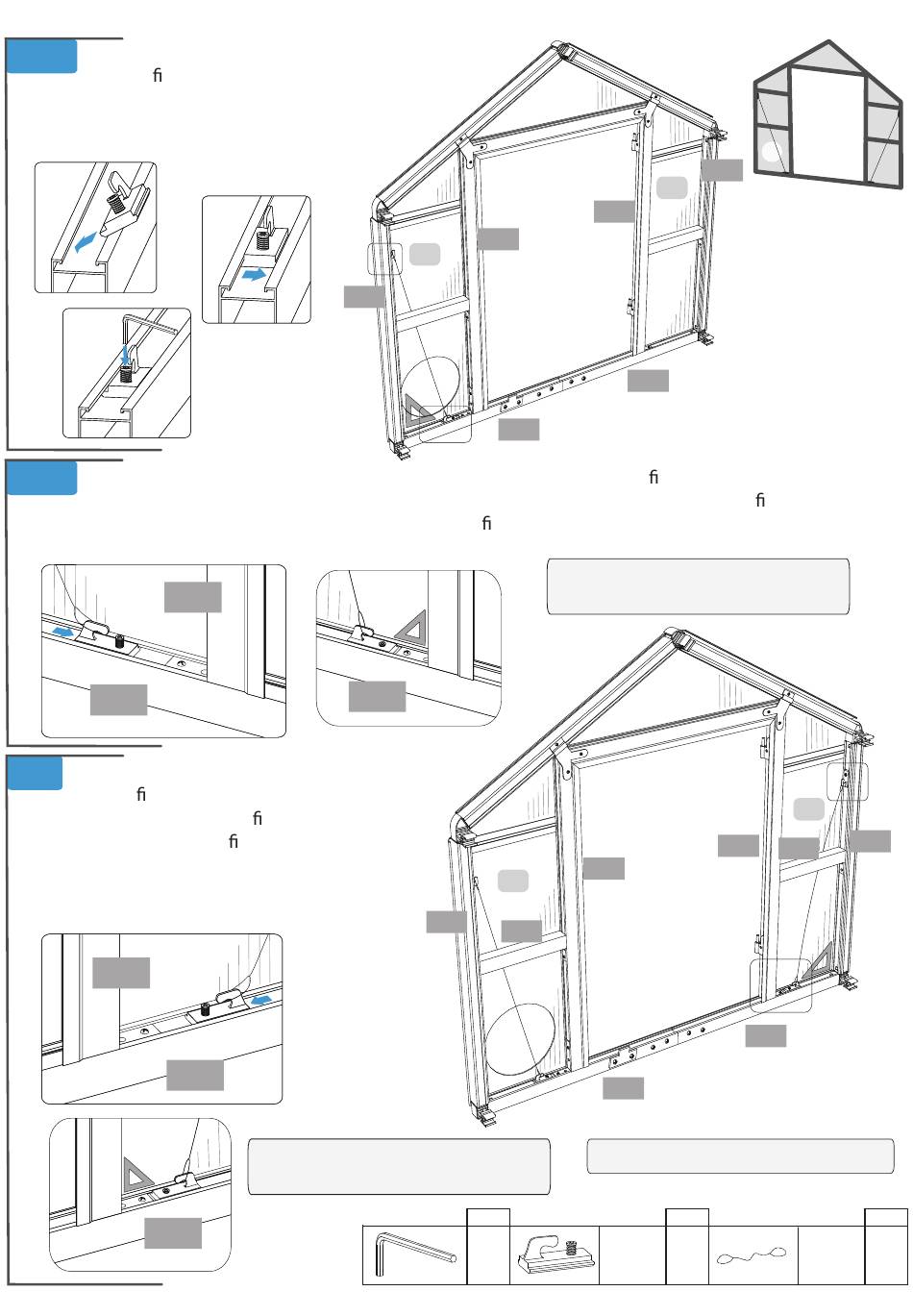

Insert long side of cable connector S06 at an angle
3.10A
into pro le channel L02B with HOOK FACING UP.
Slide connector to other side of channel.
Use hex key to securely tighten and
hold in place.
3.10B Attach one side of short cable S16 to hook on S06 and lace under pro le L04A. Attach other side of
cable to a second S06 cable connector and with hook facing center, insert into pro le channel L01K.
Push the S06 connector towards center until pro le corners are square and cable is tight. Use hex key
to securely tighten and hold in place.
L06K
L01K
Repeat step 3.10 inserting cable connectors S06
3.11
into pro les L02A and L01L. Cable rests next
to panel Y5, under pro le L04A. Slide
connector until pro le corners are square
and cable is tight. Use hex key to securely
tighten second connector and hold in place.
L06A
L01L
L01L
www.stcny.com
Y6
L02B
L01K
L02B
IMPORTANT: Make sure all corners
are squared at 90 degrees.
Hex Key
26 of 55
L06A
L06K
L01L
L01K
IMPORTANT: Make sure all corners
are squared at 90 degrees.
L06K
Y6
L04A
L01K
NOTE: ALL VIEWS ARE FROM INSIDE.
Cable Connector
QTY
1 #S06
L02A
Y5
Y5
L06A
L04A
L01L
Cable
QTY
4 #S16
L02A
QTY
2
