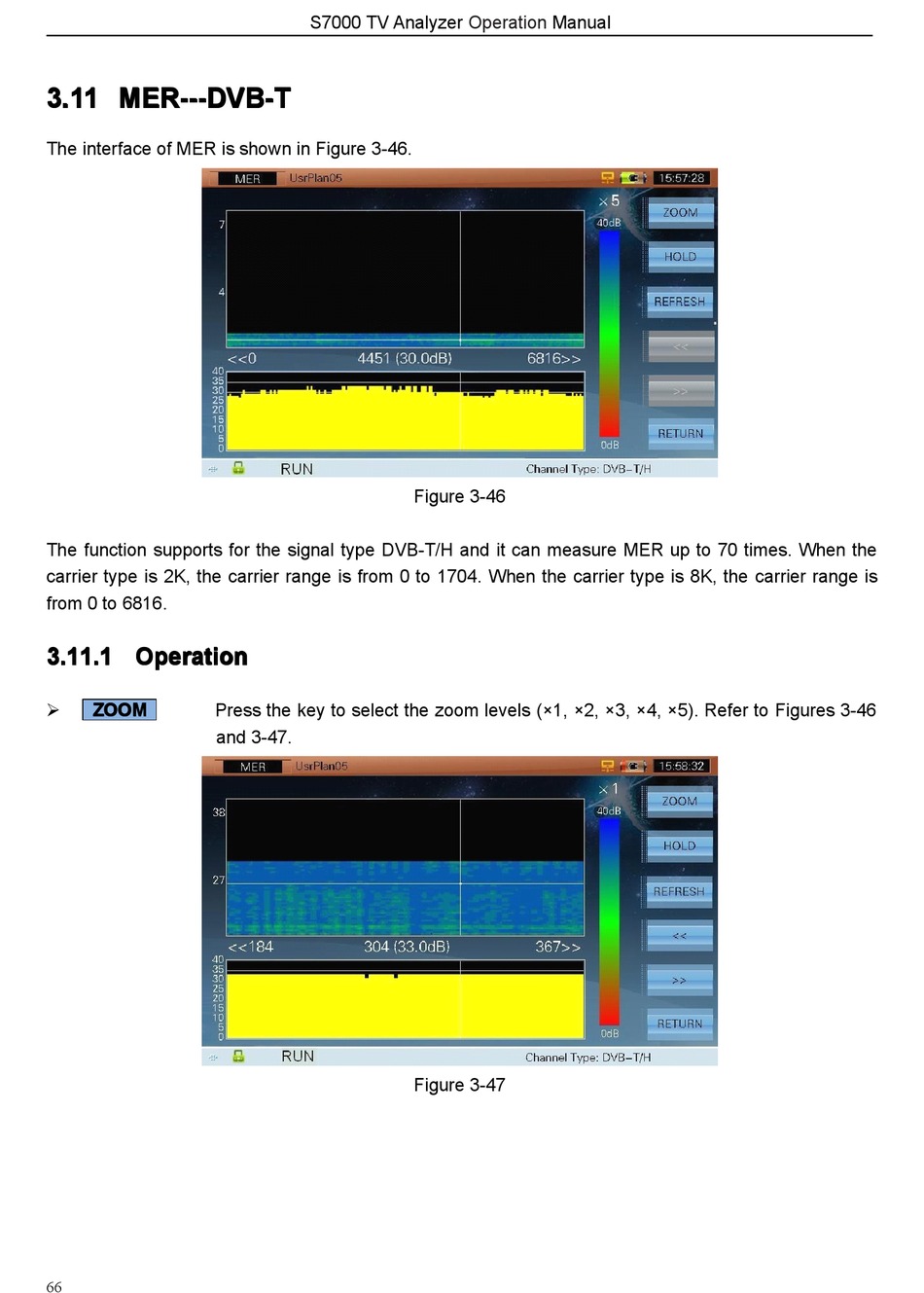

The interface of MER is shown in Figure 3-46.
The function supports for the signal type DVB-T/H and it can measure MER up to 70 times. When the
carrier type is 2K, the carrier range is from 0 to 1704. When the carrier type is 8K, the carrier range is
from 0 to 6816.
3.11.1 3.11.1 Operation Operation
3.11.1 3.11.1 Operation Operation
� ZOOM ZOOM ZOOM ZOOM Press the key to select the zoom levels (×1, ×2, ×3, ×4, ×5). Refer to Figures 3-46
and 3-47.
66
S7000 TV Analyzer Operation
Figure 3-46
Figure 3-47
