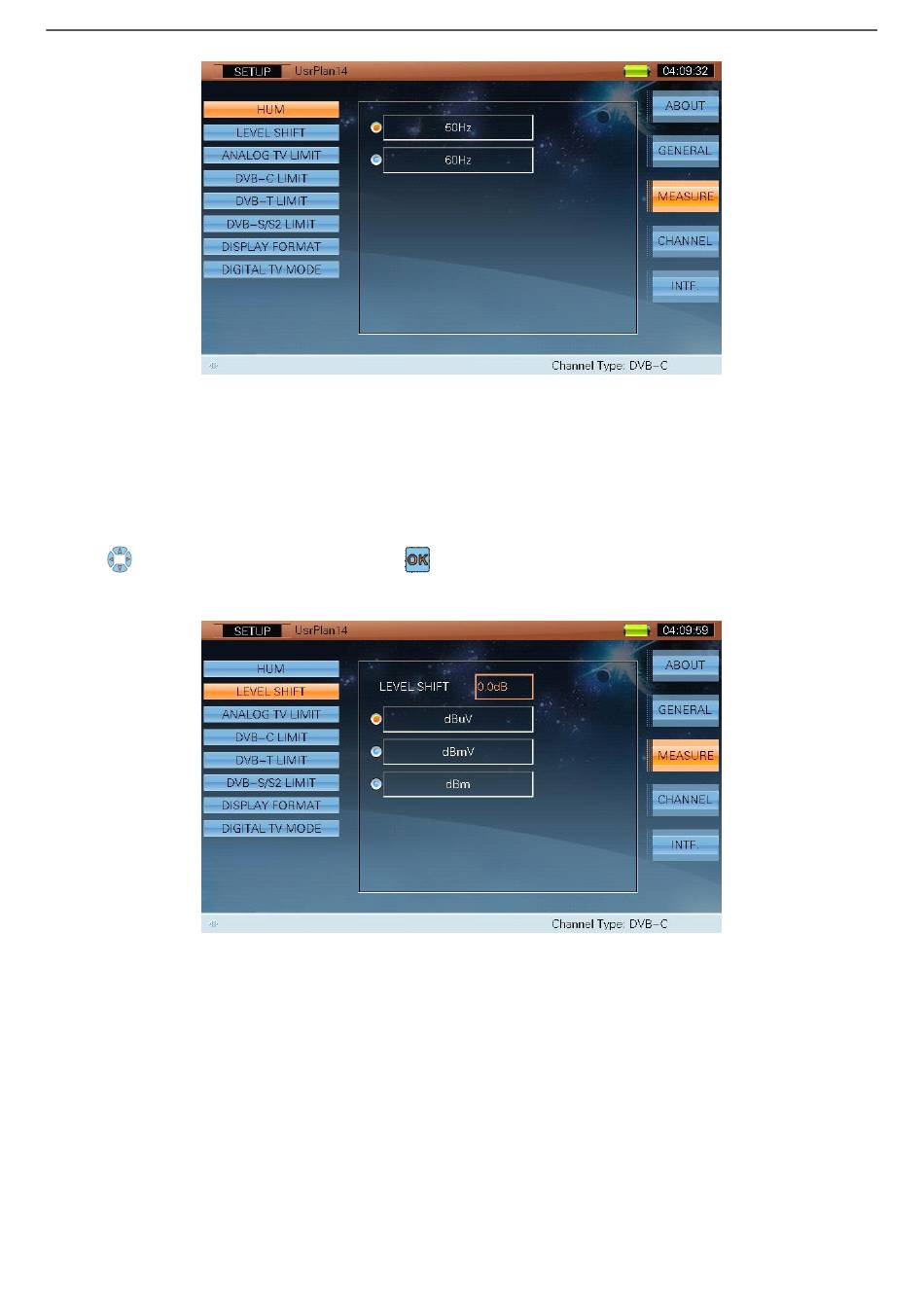

S7000 allows the user to make adjustments to compensate for various measured data in the Level and
Channel Scan functions by adjusting the Level Shift value as shown in the Figure 2-12.
UP UP DOWN DOWN
Select keys (UP UP/DOWN DOWN/LEFT
Level Shift value from -3dB to +3dB.
Also, S7000 allows the user to select the desired measure level unit dBμV, dBmV, or dBm as the Figure
2-13.
S7000 TV Analyzer
Figure 2-11
LEFT LEFT RIGHT RIGHT
LEFT/RIGHT RIGHT), key (ENTER
Figure 2-12
Operation Manual
ENTER ENTER
ENTER) and the Alphanumeric Keypad to enter a
