Deviser S7000 Operation Manual page 59

3.3 3.3 Spectrum Spectrum
3.3 3.3 Spectrum Spectrum

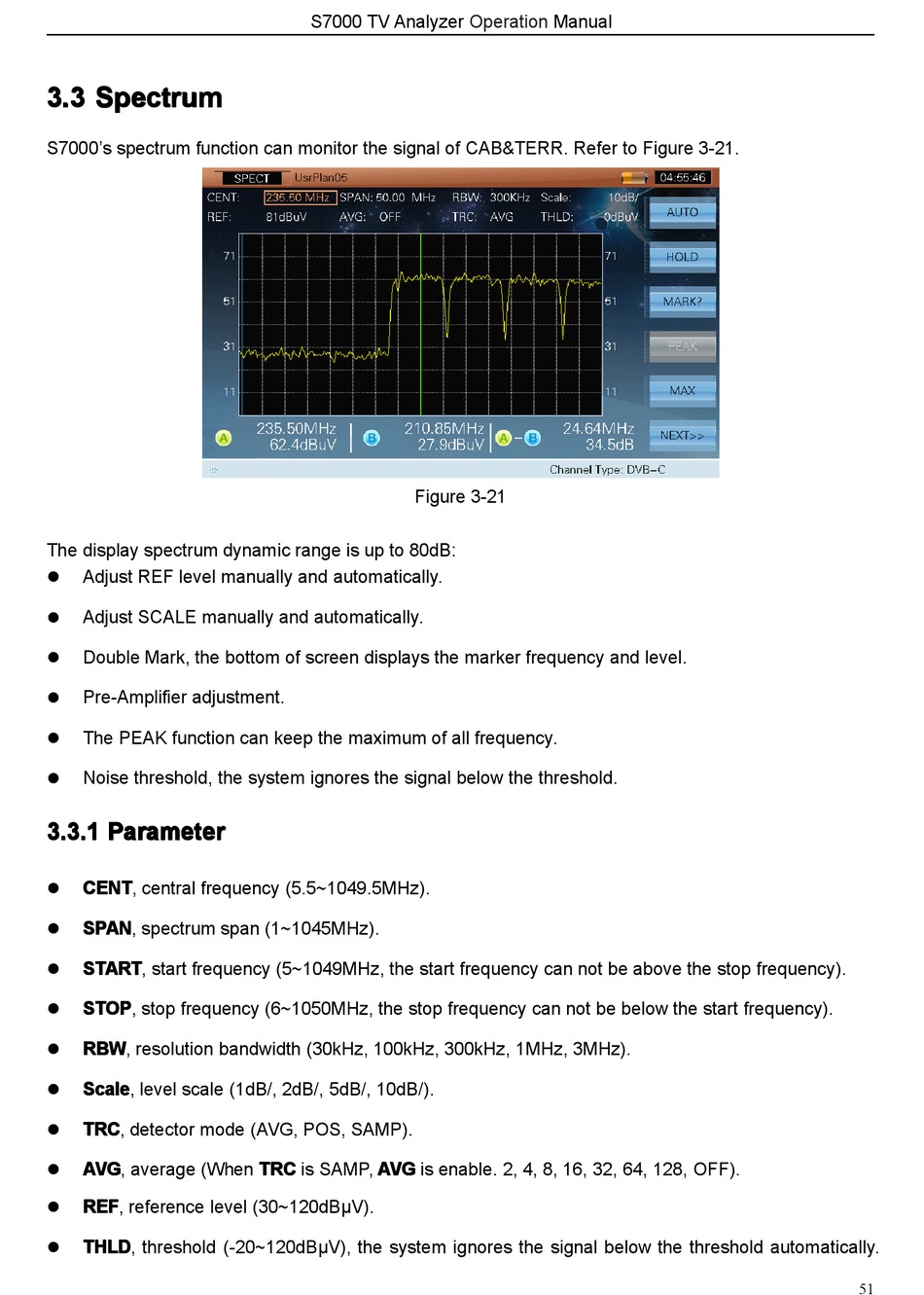

S7000's spectrum function can monitor the signal of CAB&TERR. Refer to Figure 3-21.
The display spectrum dynamic range is up to 80dB:
�
Adjust REF level manually and automatically.
� Adjust SCALE manually and automatically.
�
Double Mark, the bottom of screen displays the marker frequency and level.
� Pre-Amplifier adjustment.
�
The PEAK function can keep the maximum of all frequency.
� Noise threshold, the system ignores the signal below the threshold.
3.3.1 3.3.1 Parameter Parameter
3.3.1 3.3.1 Parameter Parameter
� CENT CENT CENT CENT, central frequency (5.5~1049.5MHz).
� SPAN SPAN
SPAN SPAN, spectrum span (1~1045MHz).
� START START START START, start frequency (5~1049MHz, the start frequency can not be above the stop frequency).
� STOP STOP
STOP STOP, stop frequency (6~1050MHz, the stop frequency can not be below the start frequency).
�
RBW RBW RBW RBW, resolution bandwidth (30kHz, 100kHz, 300kHz, 1MHz, 3MHz).
� Scale Scale
Scale Scale, level scale (1dB/, 2dB/, 5dB/, 10dB/).
�
TRC TRC TRC, detector mode (AVG, POS, SAMP). TRC
� AVG AVG
AVG AVG, average (When TRC
� REF REF
REF REF, reference level (30~120dBμV).
� THLD THLD
THLD THLD, threshold (-20~120dBμV), the system ignores the signal below the threshold automatically.
S7000 TV Analyzer
Figure 3-21
TRC TRC AVG AVG
TRC is SAMP, AVG AVG is enable. 2, 4, 8, 16, 32, 64, 128, OFF).
Operation Manual
51
