5.10 5.10 PCR PCR
5.10 5.10 PCR PCR
5.10.1 5.10.1 Description Description
5.10.1 5.10.1 Description Description

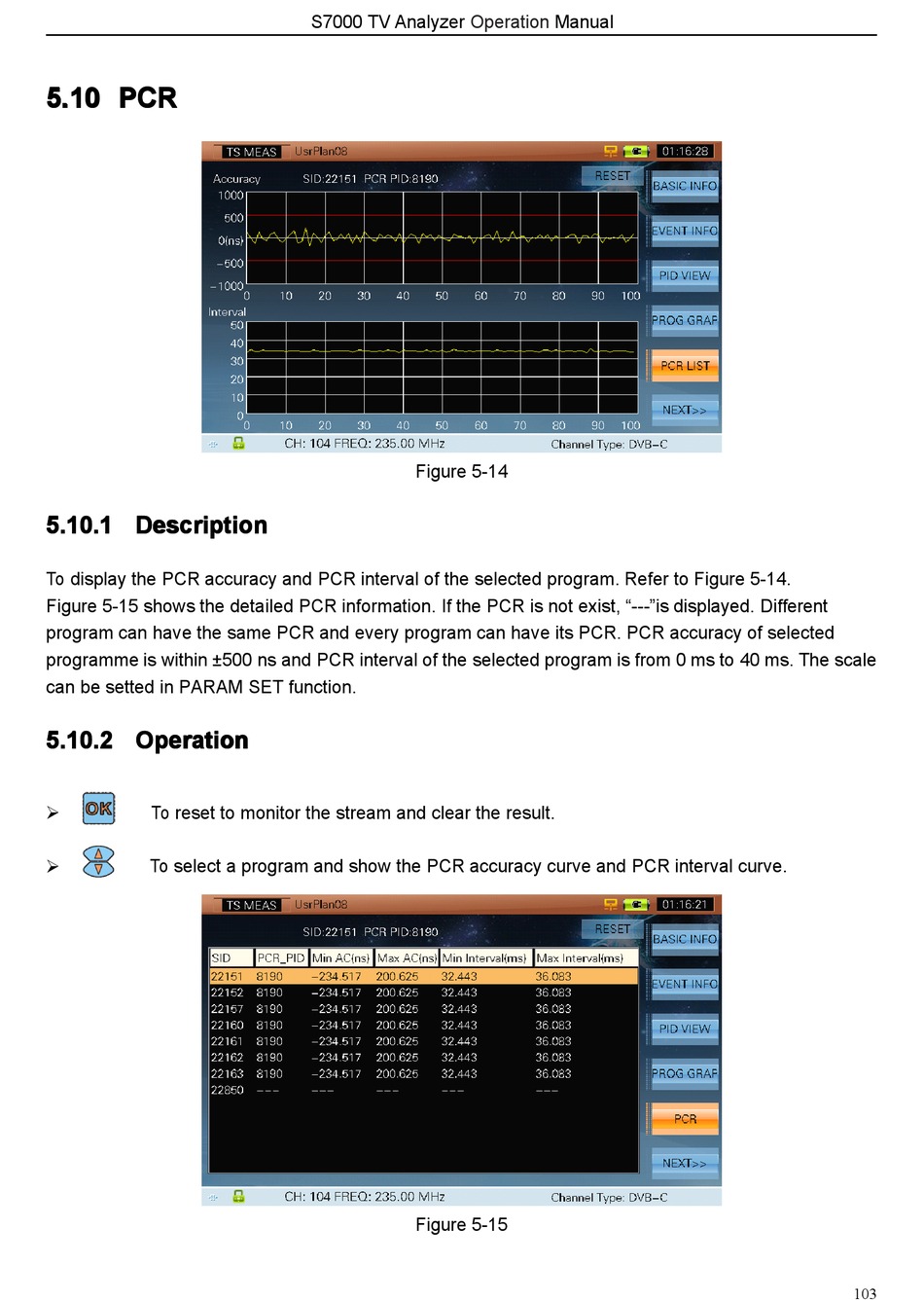

To display the PCR accuracy and PCR interval of the selected program. Refer to Figure 5-14.
Figure 5-15 shows the detailed PCR information. If the PCR is not exist, "---"is displayed. Different
program can have the same PCR and every program can have its PCR. PCR accuracy of selected
programme is within ±500 ns and PCR interval of the selected program is from 0 ms to 40 ms. The scale
can be setted in PARAM SET function.
5.10.2 5.10.2 Operation Operation
5.10.2 5.10.2 Operation Operation
�
To reset to monitor the stream and clear the result.
� To select a program and show the PCR accuracy curve and PCR interval curve.
S7000 TV Analyzer Operation
Figure 5-14
Figure 5-15
