S7000 Series TV Analyzer
59.9 MER---DVB-T

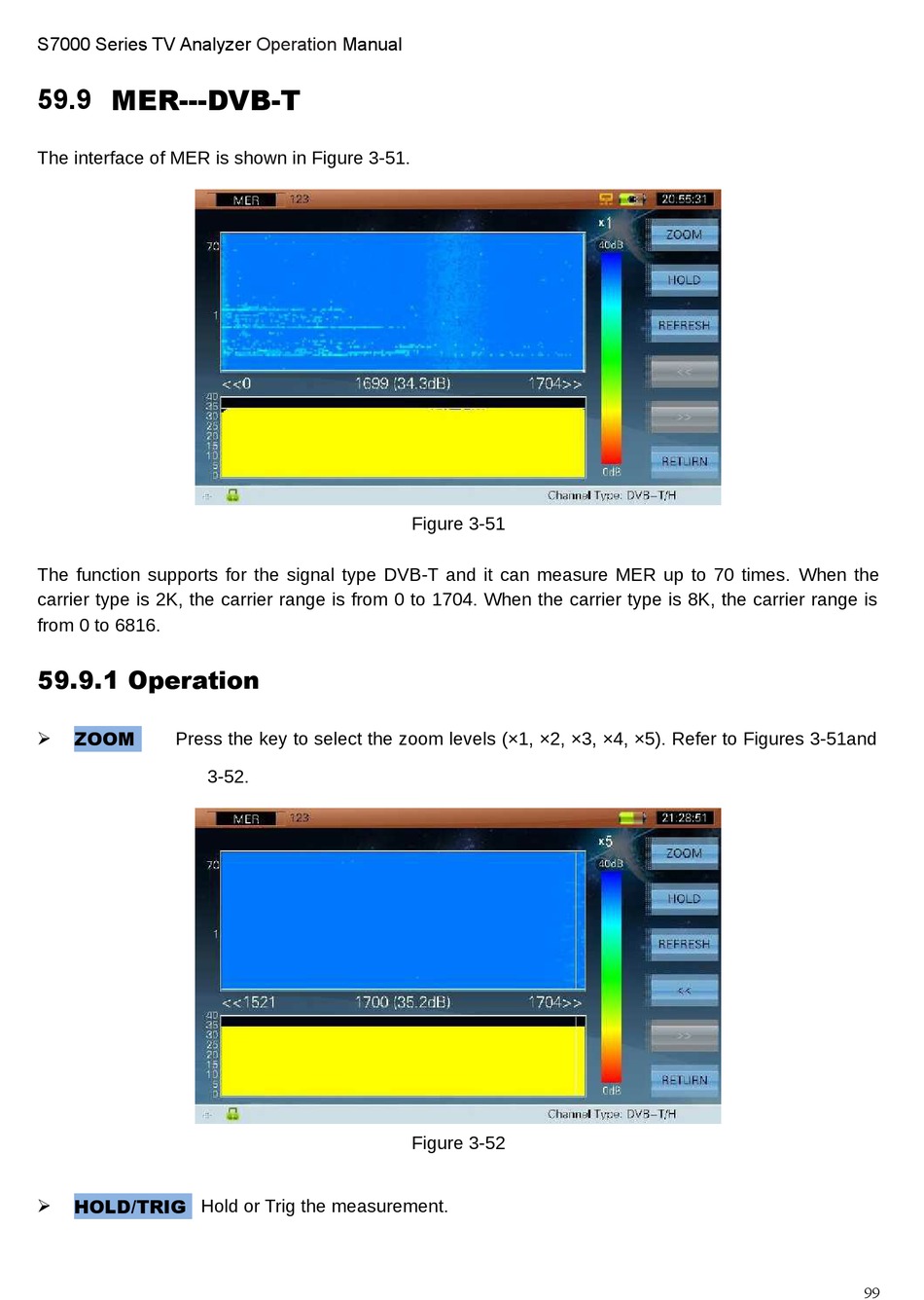

The interface of MER is shown in Figure 3-51.
The function supports for the signal type DVB-T and it can measure MER up to 70 times. When the
carrier type is 2K, the carrier range is from 0 to 1704. When the carrier type is 8K, the carrier range is
from 0 to 6816.
59.9.1 Operation
ZOOM
Press the key to select the zoom levels (×1, ×2, ×3, ×4, ×5). Refer to Figures 3-51and
3-52.
HOLD/TRIG Hold or Trig the measurement.
Operation
Manual
Figure 3-51
Figure 3-52
99
