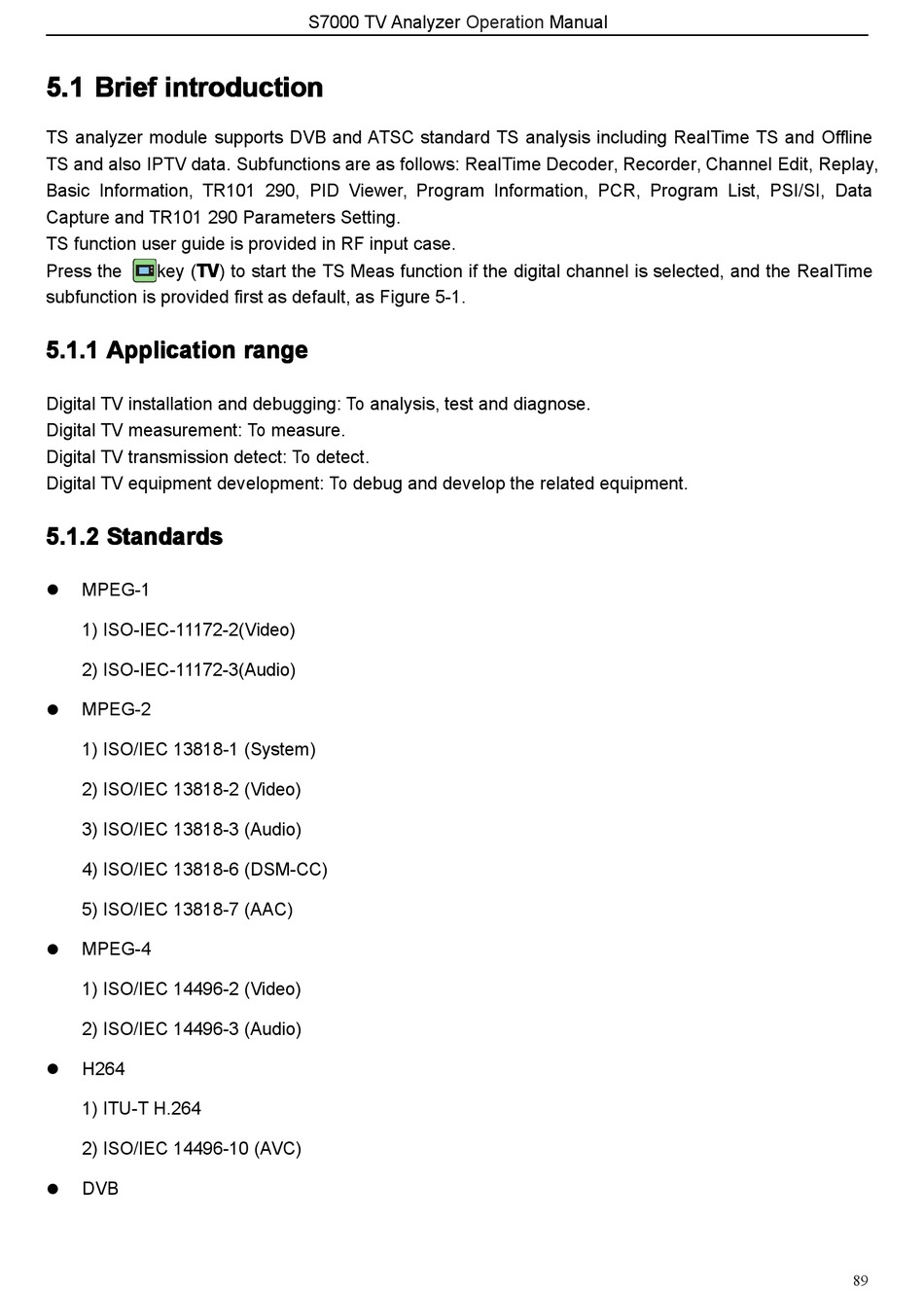

Deviser S7000 Operation Manual page 97

5.1 Brief introduction
5.1 5.1 Brief 5.1 Brief Brief introduction introduction introduction
TS analyzer module supports DVB and ATSC standard TS analysis including RealTime TS and Offline
TS and also IPTV data. Subfunctions are as follows: RealTime Decoder, Recorder, Channel Edit, Replay,
Basic Information, TR101 290, PID Viewer, Program Information, PCR, Program List, PSI/SI, Data
Capture and TR101 290 Parameters Setting.
TS function user guide is provided in RF input case.
TV TV
Press the key (TV TV) to start the TS Meas function if the digital channel is selected, and the RealTime
subfunction is provided first as default, as Figure 5-1.
5.1.1 5.1.1 Application Application
5.1.1 5.1.1 Application Application range
Digital TV installation and debugging: To analysis, test and diagnose.
Digital TV measurement: To measure.
Digital TV transmission detect: To detect.
Digital TV equipment development: To debug and develop the related equipment.
5.1.2 5.1.2 Standards Standards
5.1.2 5.1.2 Standards Standards
�
MPEG-1
1) ISO-IEC-11172-2(Video)
2) ISO-IEC-11172-3(Audio)
� MPEG-2
1) ISO/IEC 13818-1 (System)
2) ISO/IEC 13818-2 (Video)
3) ISO/IEC 13818-3 (Audio)
4) ISO/IEC 13818-6 (DSM-CC)
5) ISO/IEC 13818-7 (AAC)
� MPEG-4
1) ISO/IEC 14496-2 (Video)
2) ISO/IEC 14496-3 (Audio)
�
H264
1) ITU-T H.264
2) ISO/IEC 14496-10 (AVC)
� DVB
S7000 TV Analyzer
range range
range
Operation Manual
89
