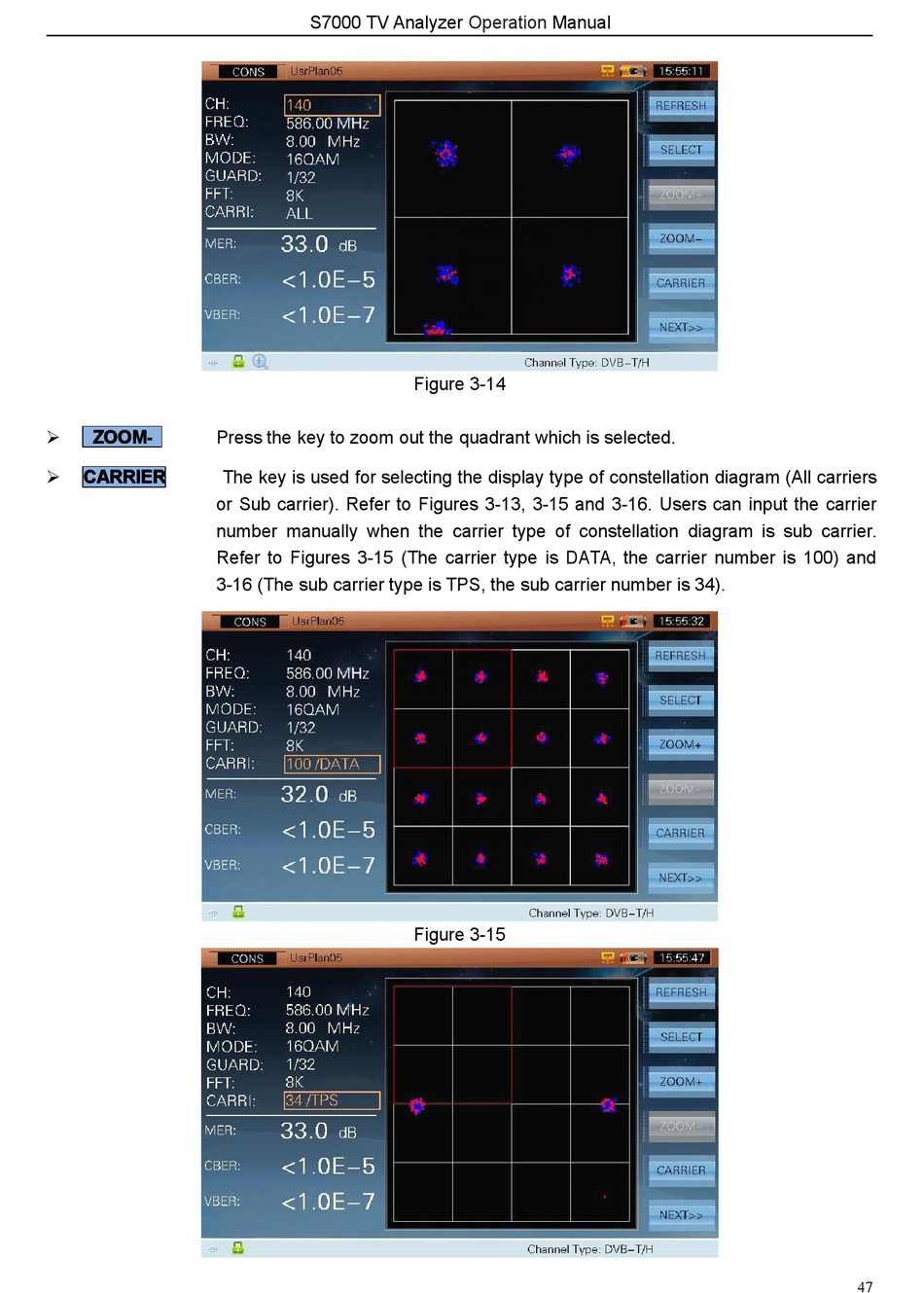

ZOOM- ZOOM- ZOOM- ZOOM- Press the key to zoom out the quadrant which is selected.
� CARRIER CARRIER
CARRIER CARRIER
or Sub carrier). Refer to Figures 3-13, 3-15 and 3-16. Users can input the carrier
number manually when the carrier type of constellation diagram is sub carrier.
Refer to Figures 3-15 (The carrier type is DATA, the carrier number is 100) and
3-16 (The sub carrier type is TPS, the sub carrier number is 34).
S7000 TV Analyzer
The key is used for selecting the display type of constellation diagram (All carriers
Operation Manual
Figure 3-14
Figure 3-15
