Deviser S7000 Operation Manual page 101

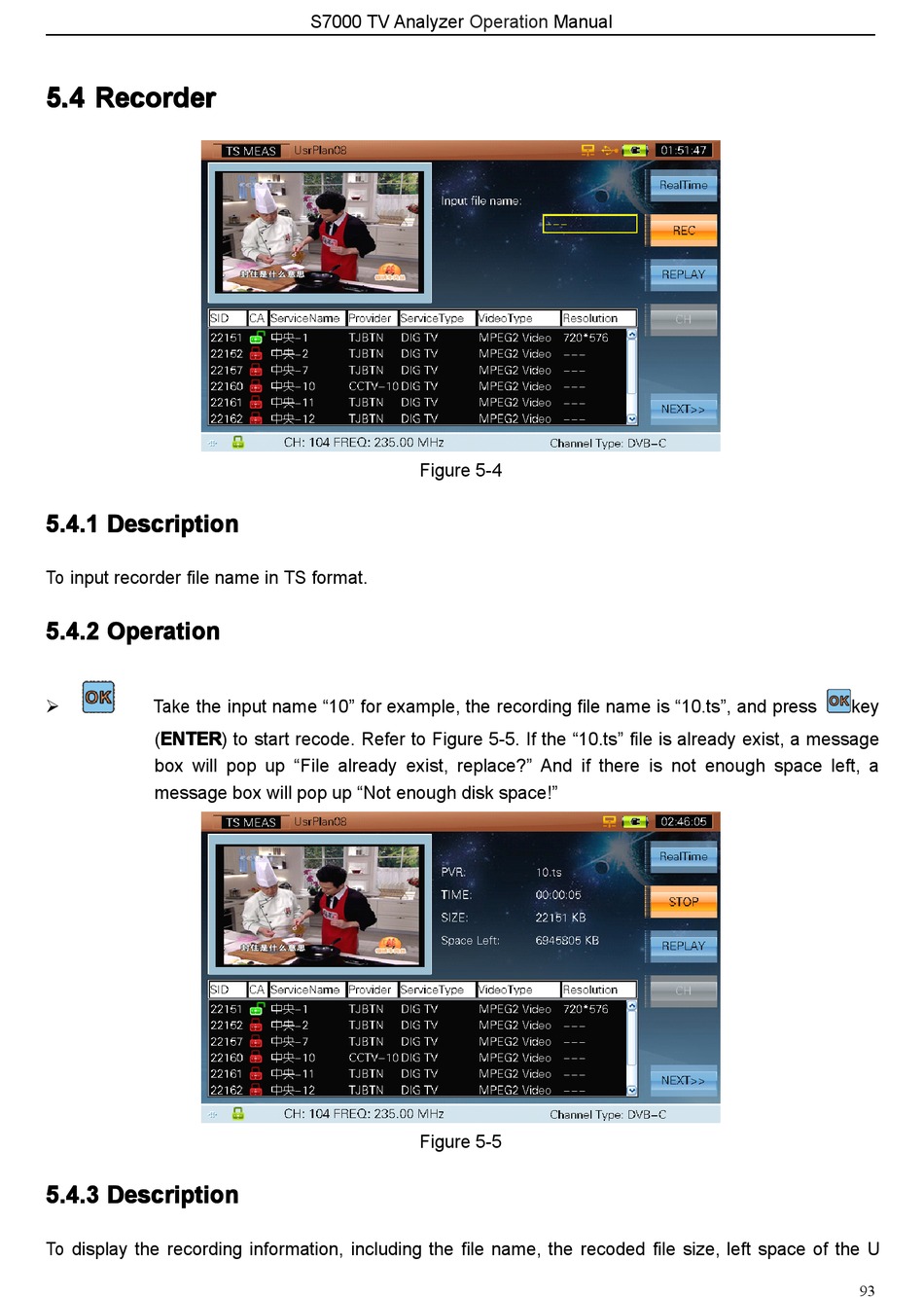

5.4 5.4 Recorder Recorder
5.4 5.4 Recorder Recorder
5.4.1 5.4.1 Description Description
5.4.1 5.4.1 Description Description
To input recorder file name in TS format.
5.4.2 Operation
5.4.2 5.4.2 5.4.2 Operation Operation Operation
� Take the input name "10" for example, the recording file name is "10.ts", and press
ENTER
(ENTER ENTER ENTER) to start recode. Refer to Figure 5-5. If the "10.ts" file is already exist, a message
box will pop up "File already exist, replace?" And if there is not enough space left, a
message box will pop up "Not enough disk space!"
5.4.3 5.4.3 Description Description
5.4.3 5.4.3 Description Description
To display the recording information, including the file name, the recoded file size, left space of the U
S7000 TV Analyzer Operation
Figure 5-4
Figure 5-5
Manual
key
93
