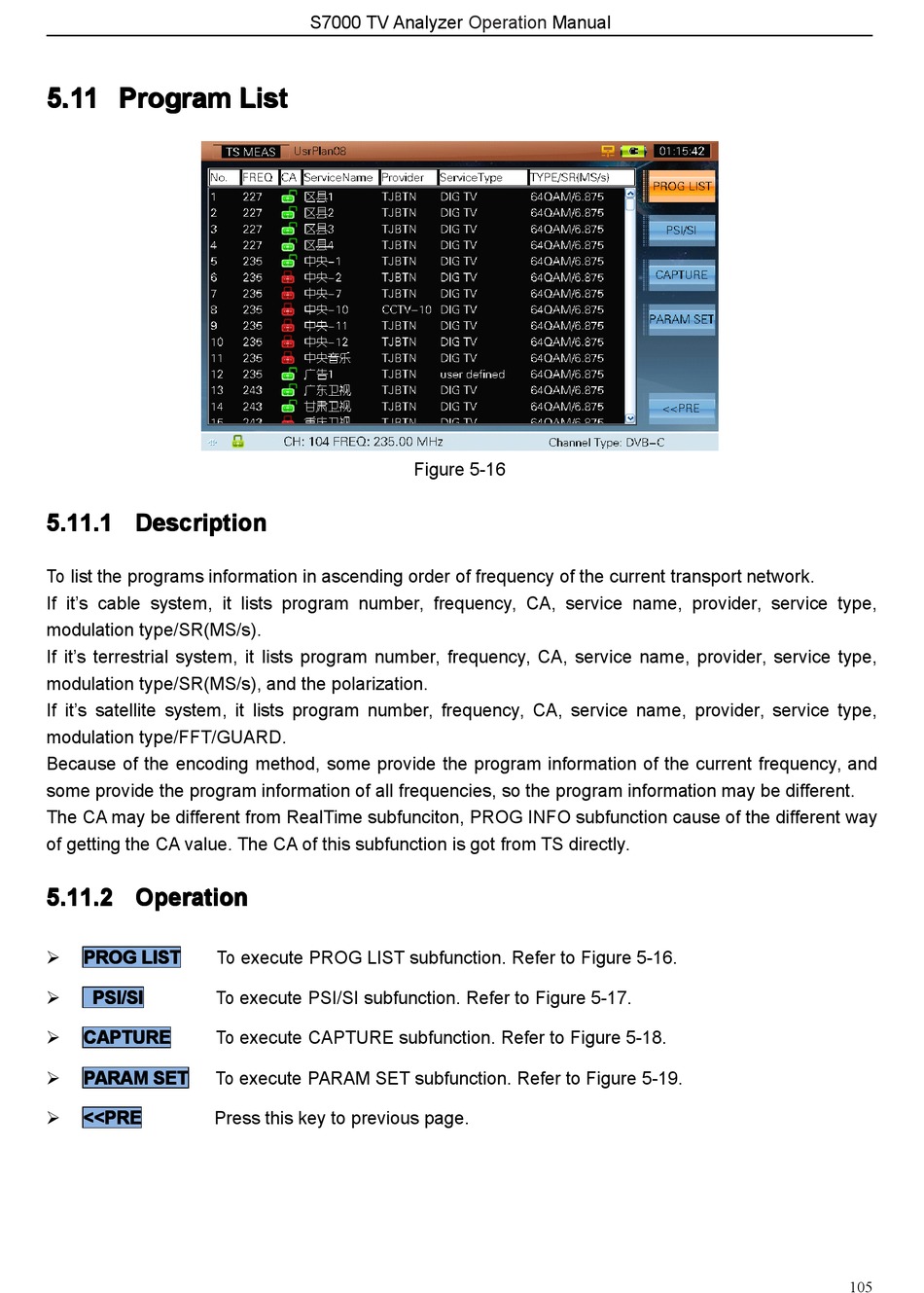

Deviser S7000 Operation Manual page 113

5.11 5.11 Program Program
5.11 5.11 Program Program List
5.11.1 5.11.1 Description Description
5.11.1 5.11.1 Description Description
To list the programs information in ascending order of frequency of the current transport network.
If it's cable system, it lists program number, frequency, CA, service name, provider, service type,
modulation type/SR(MS/s).
If it's terrestrial system, it lists program number, frequency, CA, service name, provider, service type,
modulation type/SR(MS/s), and the polarization.
If it's satellite system, it lists program number, frequency, CA, service name, provider, service type,
modulation type/FFT/GUARD.
Because of the encoding method, some provide the program information of the current frequency, and
some provide the program information of all frequencies, so the program information may be different.
The CA may be different from RealTime subfunciton, PROG INFO subfunction cause of the different way
of getting the CA value. The CA of this subfunction is got from TS directly.
5.11.2 5.11.2 Operation Operation
5.11.2 5.11.2 Operation Operation
�
PROG PROG PROG PROG LIST LIST LIST LIST To execute PROG LIST subfunction. Refer to Figure 5-16.
� PSI/SI PSI/SI
PSI/SI PSI/SI To execute PSI/SI subfunction. Refer to Figure 5-17.
�
CAPTURE CAPTURE CAPTURE CAPTURE To execute CAPTURE subfunction. Refer to Figure 5-18.
� PARAM PARAM SET SET
PARAM PARAM SET SET To execute PARAM SET subfunction. Refer to Figure 5-19.
� <<PRE
<<PRE <<PRE <<PRE Press this key to previous page.
S7000 TV Analyzer
List List
List
Operation Manual
Figure 5-16
