5.9.3 5.9.3 5.9.3 5.9.3 Description Description Description Description
To display the program information with SID, CA, bitrate, service name, provider, service type. The
yellow curve is the video BW rate curve if video information included in the program.The green curve is
the first audio BW curve if audio information included in the program. The abscissa is on behalf of the
rate of the current time, and the ordinate is on behalf of BW percent of the program. If the program is not
a digital TV program, no curve will be displayed.
5.9.4 Operation
5.9.4 5.9.4 5.9.4 Operation Operation Operation
�
To selected the program and display the BW rate curve.
102
S7000 TV Analyzer Operation

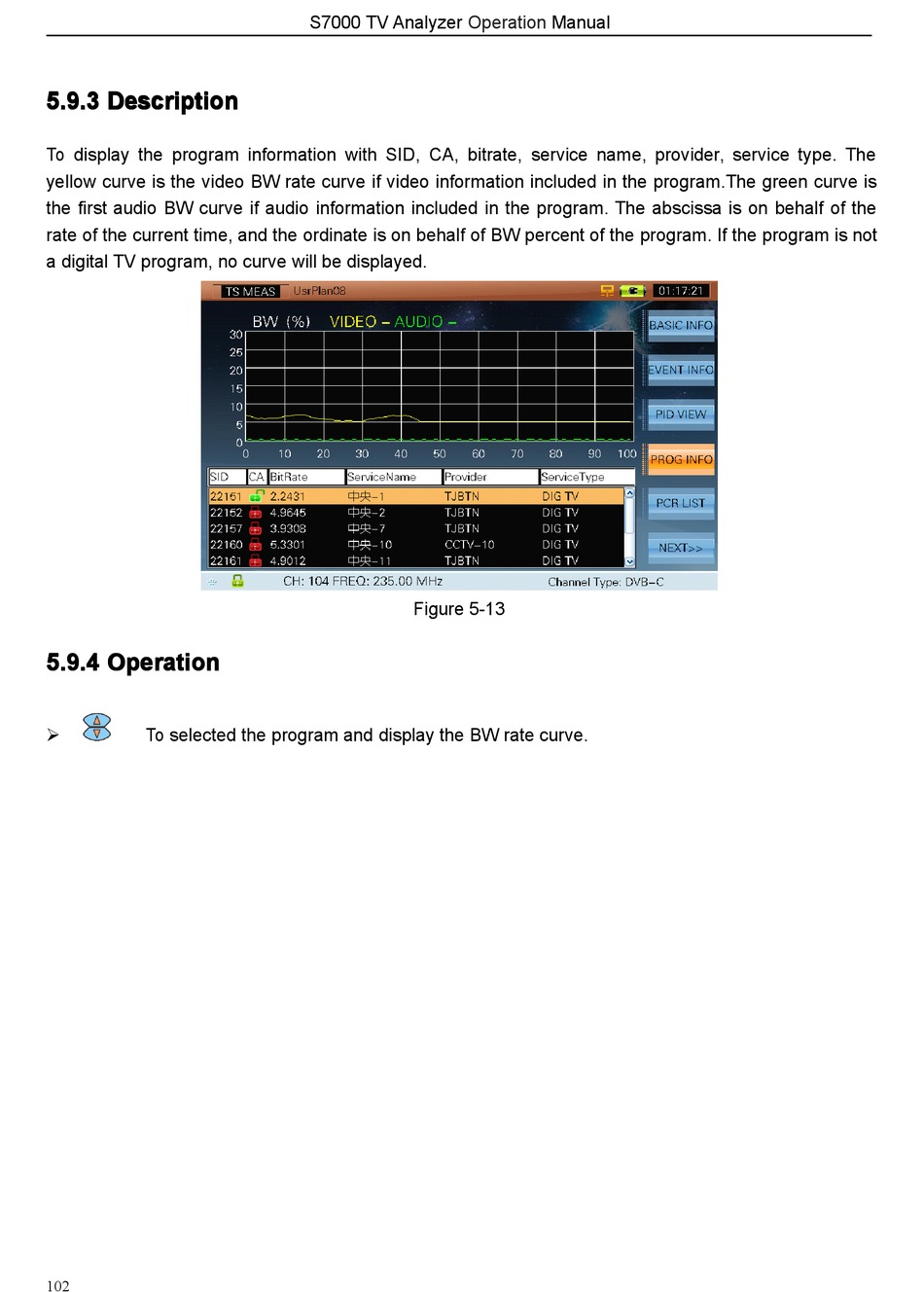

Figure 5-13
