2 .1 INTRODUCTION
This section provides complete instal-
lation and operating instructions for the
Wavetek
Model 3000 signal generator .
The instructions consist of mechanical
installation,
electrical installation,
front and rear panel features, instal-
lation checks and operating procedures .
2 .2
MECHANICAL INSTALLATION
2 .2 .1 Initial Inspection
After unpacking the instrument, visually
inspect the external parts for
damage
to knobs, connectors, surface areas, etc .
The shipping container and packing mat-
erial should be saved in case it is
necessary to reship the unit .
2 .2 .2 Damage Claims
If the instrument is received mechanically
damaged in transit, notify the carrier
and
either the nearest Wavetek area
representative or the factory in Indiana .

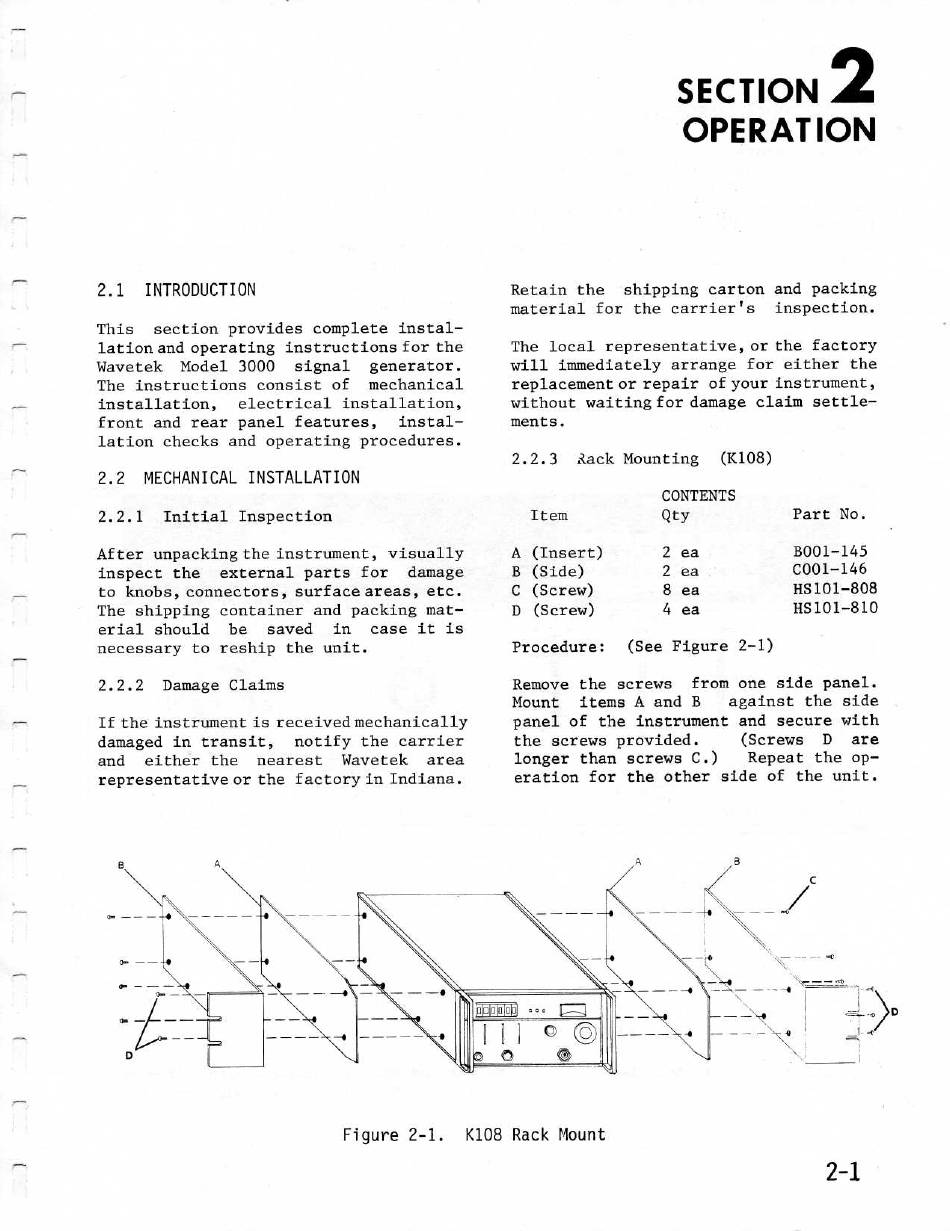

Figure 2- 1 . K108 Rack Mount
Retain the
shipping carton and packing
material for the carrier's
inspection .
The local representative, or the factory
will immediately arrange for either the
replacement or repair of your instrument,
without waiting for damage claim settle-
ments .
2 .2 .3 Zack Mounting
(K108)
CONTENTS
Procedure :
(See Figure 2-1)
SECTION
2
OPERATION
Remove the screws
from one side panel .
Mount items A and B
against the side
panel of the instrument and secure with
the screws provided . (Screws D are
longer than screws C .)
Repeat the op-
eration for the other side of the unit .
Item Qty
Part No .
A (Insert) 2 ea
B001-145
B (Side) 2 ea
0001-146
C (Screw) 8 ea
HS101-808
D (Screw) 4 ea
HS101-810
