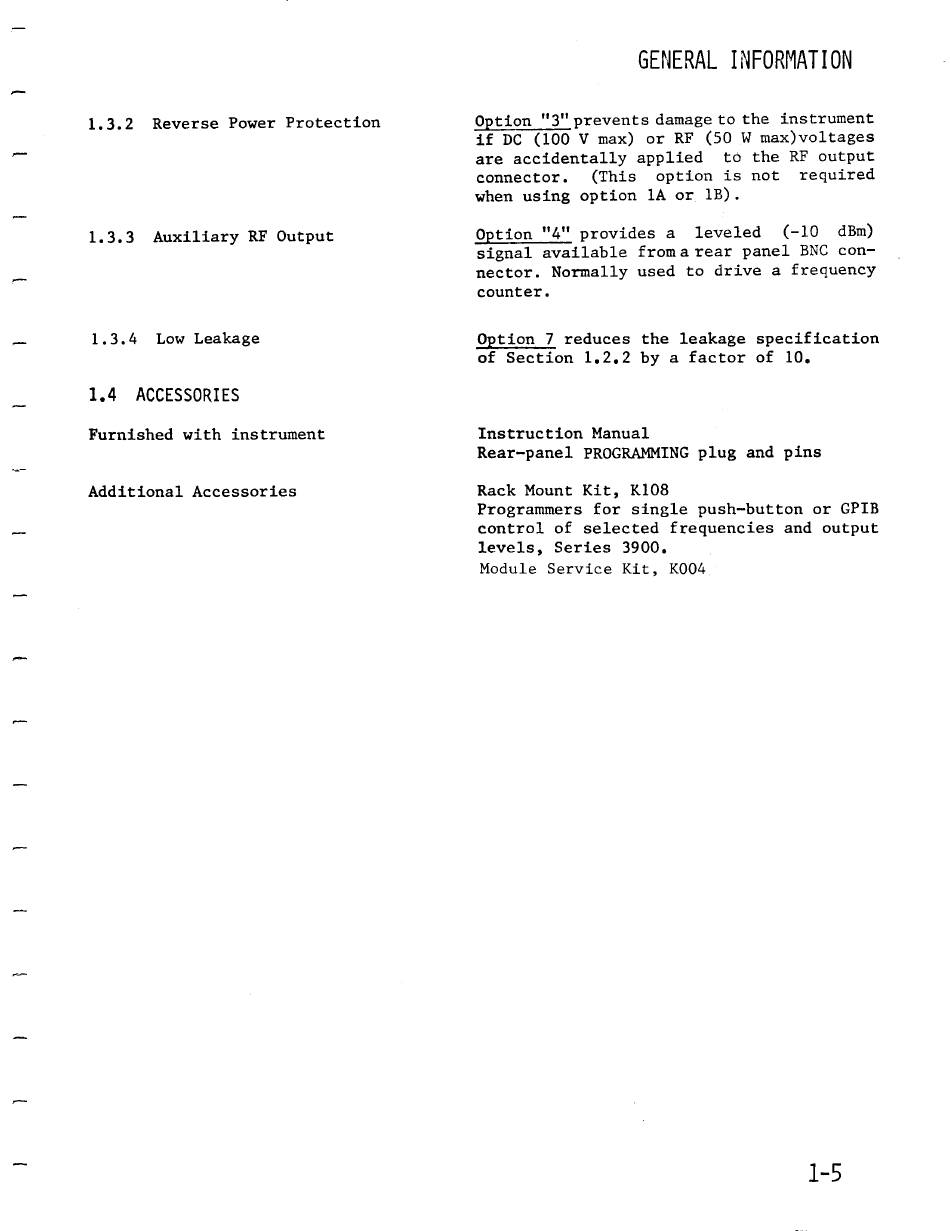

1 .3 .2
Reverse Power Protection
Option "3" prevents damage to the instrument
if DC (100 V max) or RF (50 W max)voltages
are accidentally applied
to the RF output
connector . (This
option is not
required
when using option lA or 1B) .
1 .3 .3
Auxiliary RF Output
Option "4" provides a
leveled (-10
dBm)
signal available from a rear panel BNC con-
nector . Normally used to drive a frequency
counter .
1 .3 .4
Low Leakage
1 .4 ACCESSORIES
GENERAL INFORMATION
Option 7 reduces the leakage specification
of Section 1 .2 .2 by a factor of 10 .
Furnished with instrument
Instruction Manual
Rear-panel PROGRAMMING plug and pins
Additional Accessories
Rack Mount Kit, K108
Programmers for single push-button or GPIB
control of selected frequencies and output
levels, Series 3900 .
Module Service Kit, K004
