Programming
O5
Modulation Test Point
2 .6 INSTALLATION CHECKS
The following procedure is used to de-
termine that the instrument is operating
properly .
Performance testing and cal-
ibration of the instrument are contained
in other sections of this manual .
If
it is determined that the unit is not
operating properly or is not
meeting
specifications,
refer to the warranty
on the back of the title page .
2 .6 .1 Turn On
Verify that the power transformer primary
is matched to the line voltage available,
and that
the proper fuse is installed .
(See Section 2 .3 Electrical Installation)
Turn the front panel power switch to the
"ON" position .
One or more of the front
panel accuracy lights will be illuminated
Provides connection for programming of fre-
quency .
Monitors internal or external AM or FM modu-
lation .
BNC TEE
SO
SZ
LOAD

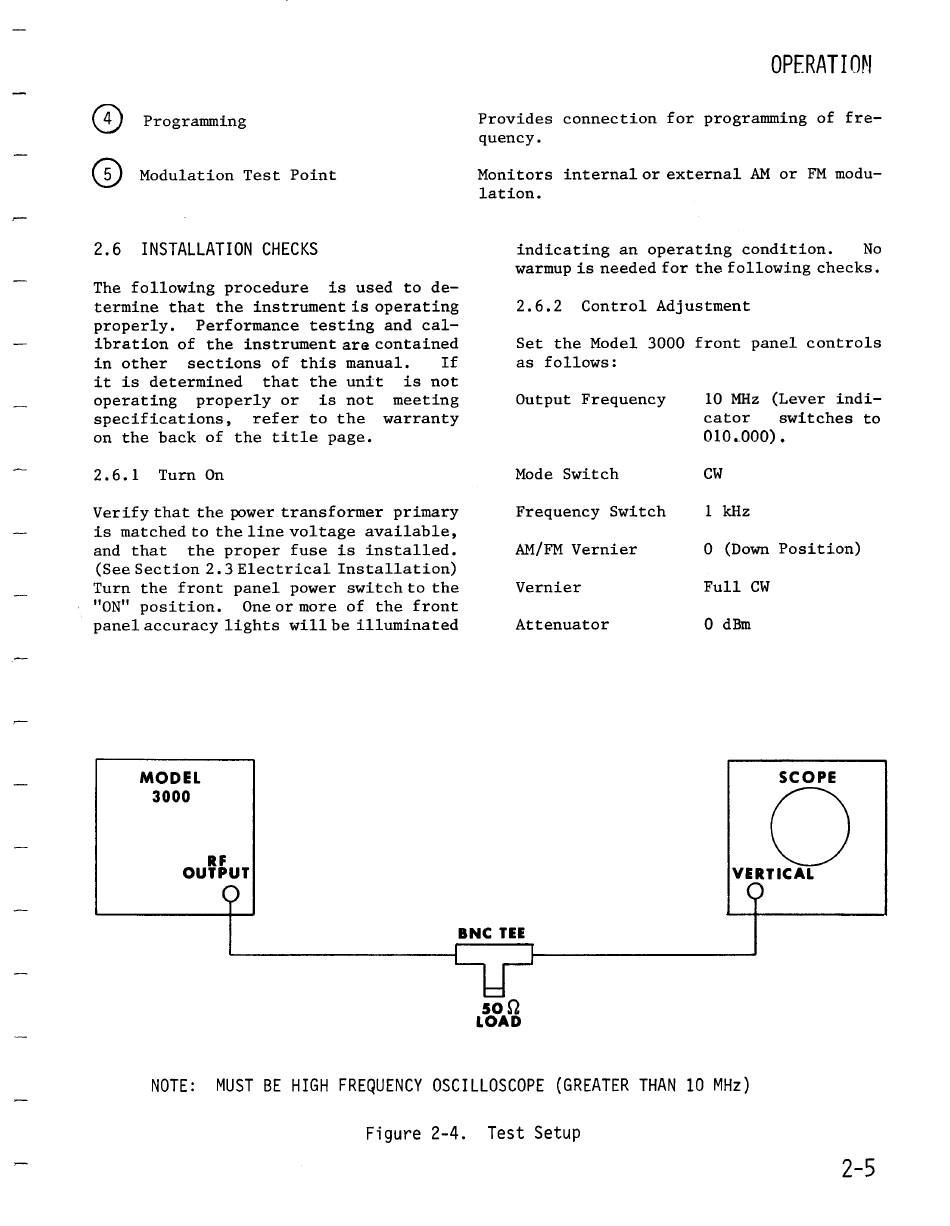

Figure 2-4 . Test Setup
OPFRATION
indicating an operating condition . No
warmup is needed for the following checks .
2 .6 .2 Control Adjustment
Set the Model 3000 front panel controls
as follows :
Output Frequency 10 MHz (Lever indi
cator switches to
010 ..000) .
Mode Switch CW
Frequency Switch 1 kHz
AM/FM Vernier
0 (Down Position)
Vernier Full CW
Attenuator 0 dBm
NOTE :
MUST BE HIGH FREQUENCY OSCILLOSCOPE (GREATER THAN 10 MHz)
SCOPE
VERTICAL
2-5
