"K HZ'
SWITCHES
phase or frequency
in the signals
applied to the
phase detector inputs
produces an error
voltage at the phase
detector
output, which controls the
VCO . The system is stable only when
the phase and frequency error is zero,
so that the output frequency is
phase
locked to the 1 kHz reference signal .
3 .12 .3 PROGRAMMABLE DIVIDER
In order for the M31A to perform prop-
erly, the divider is designed to divide
the VCOfrequency by (10,000-Sk) where
S
k
is the number set on the "kHz" switches .
The divider counts the number of cycles
at its input and puts
out a pulse when
the count reaches 10,000 . The starting
count is the number shown on the
"kHz"
switches . For example, if the instrument
is set for 222 .500 MHz, this circuit would
divide by 9,500 (count from
500 to
10,000) . Therefore, the variable input
to the phase detector would be correct
(1 kHz) only if the VCO output were 9 0 500
MHz .
1 KHZ REF
S K = SETTING OF 'KHZ ° SWITCHES

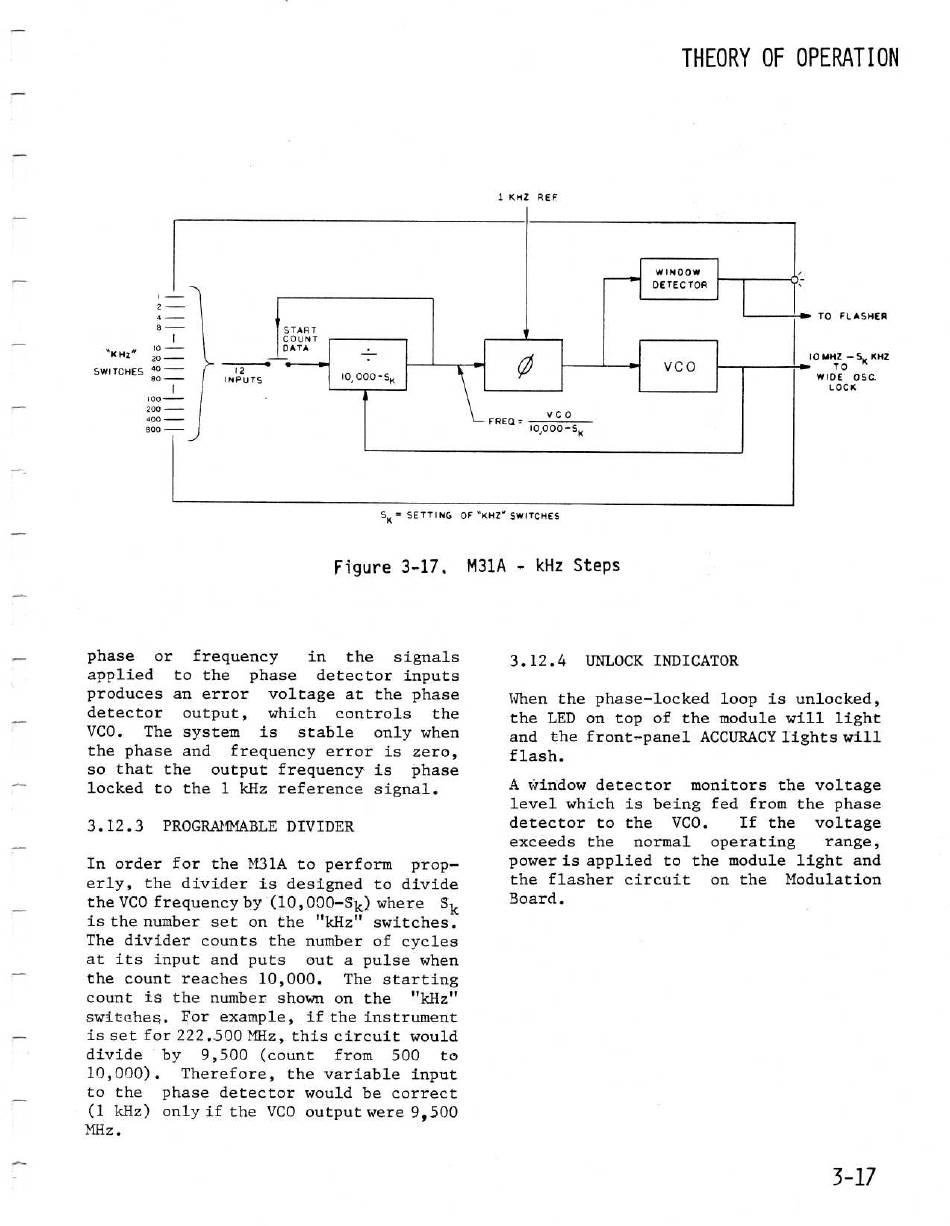

Figure 3-17,
M31A - kHz Steps
3 .12 .4 UNLOCK INDICATOR
THEORY OF OPERATION
When the phase-locked loop is unlocked,
the LED on top of the module will light
and the front-panel ACCURACY lights will
flash .
A window detector monitors the voltage
level which is being fed from the phase
detector to the
VCO . If the
voltage
exceeds the normal operating range,
power is applied to the module light and
the flasher circuit on the Modulation
Board .
3-17
