364xS User's Manual

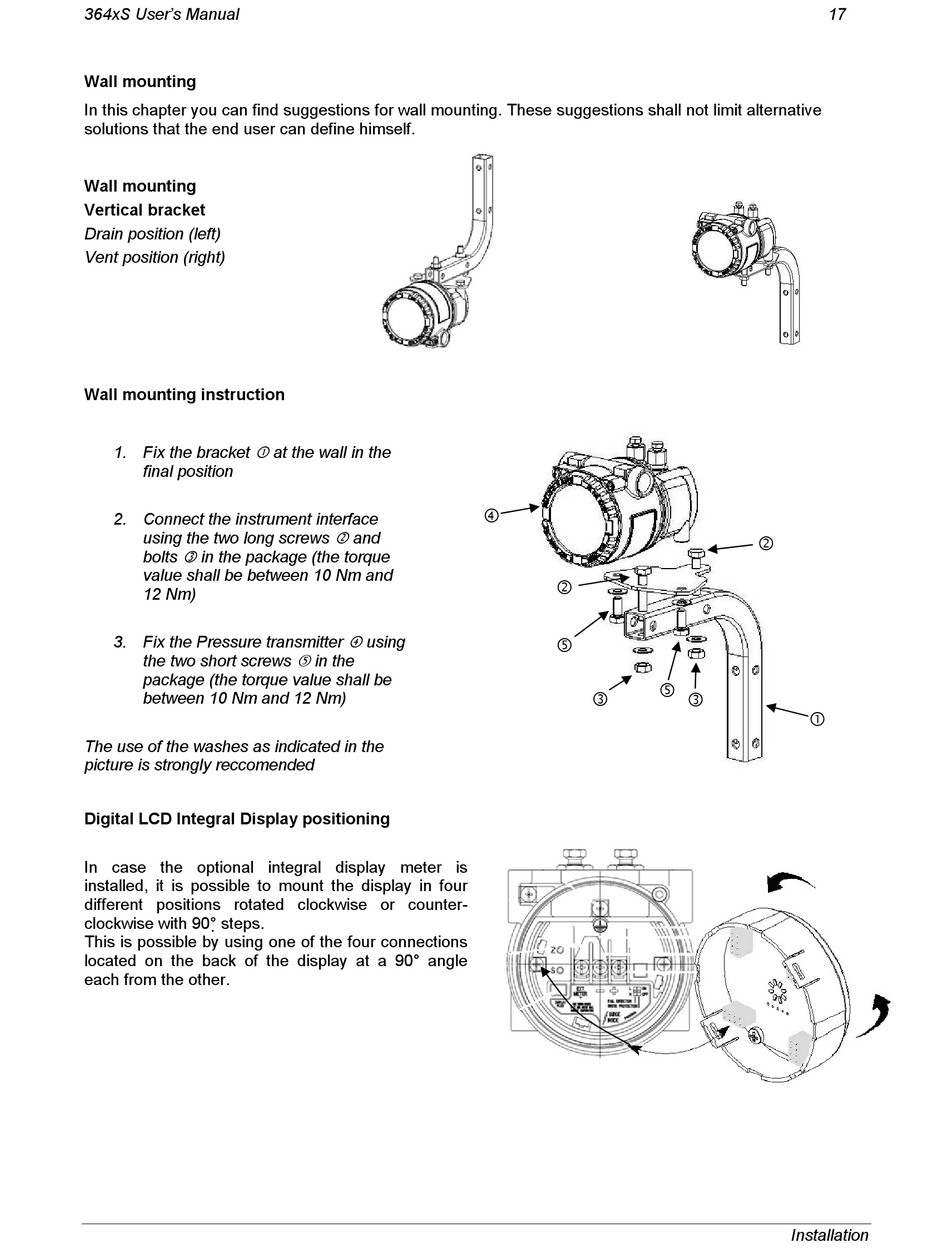

Wall mounting

In this chapter you can find suggestions for wall mounting. These suggestions shall not limit alternative
solutions that the end user can define himself.
Wall mounting
Vertical bracket
Drain position (left)
Vent position (right)

Wall mounting instruction

1. Fix the bracket
final position
2. Connect the instrument interface
using the two long screws
bolts in the package (the torque
value shall be between 10 Nm and
12 Nm)
3. Fix the Pressure transmitter
the two short screws
package (the torque value shall be
between 10 Nm and 12 Nm)
The use of the washes as indicated in the
picture is strongly reccomended

Digital LCD Integral Display positioning

In case the optional integral display meter is
installed, it is possible to mount the display in four
different positions rotated clockwise or counter-
clockwise with 90°  s teps.
This is possible by using one of the four connections
located on the back of the display at a 90° angle
each from the other.
at the wall in the
and
using
in the
17
Installation
