364xS User's Manual

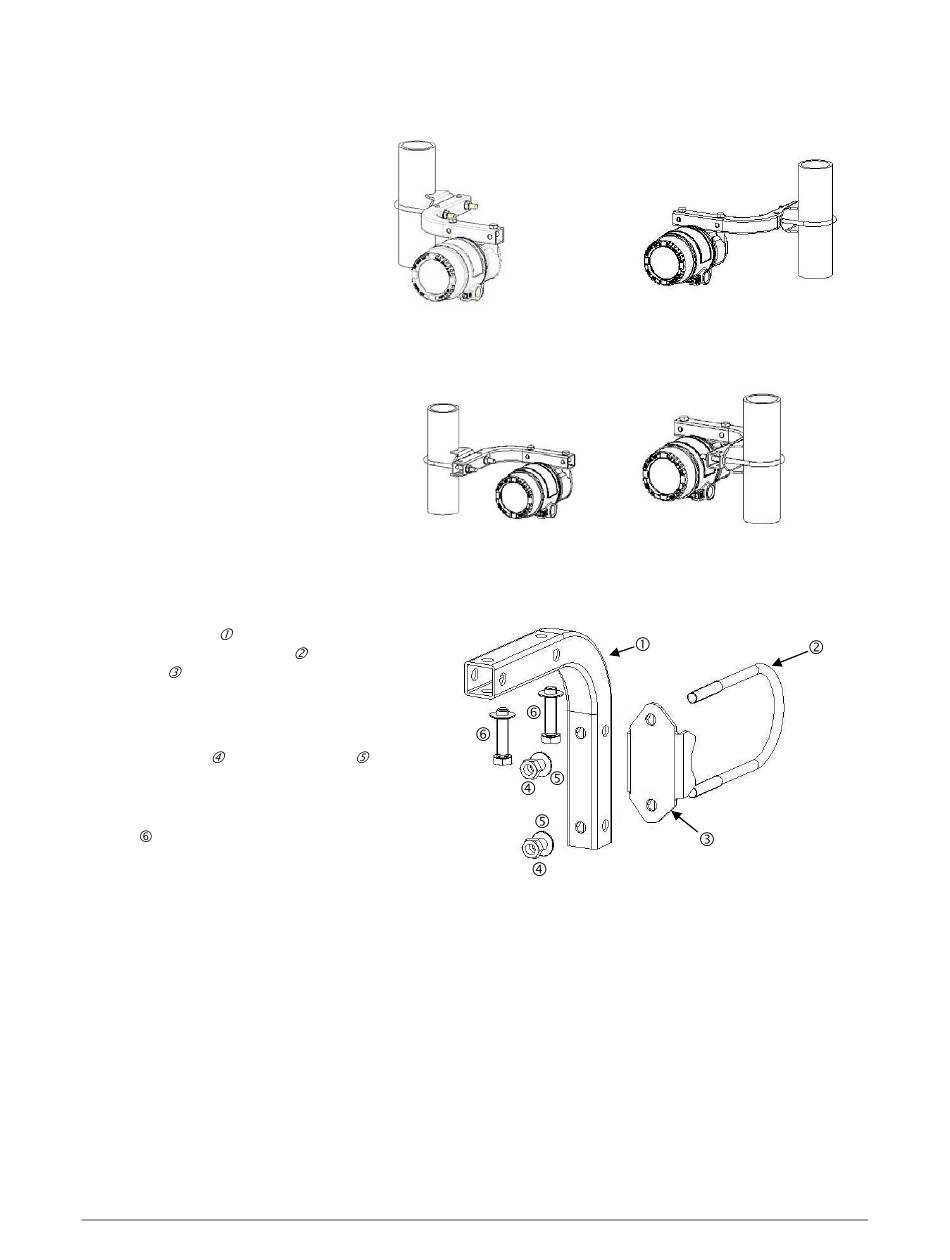

Vertical pipe
Perpendicular bracket
Transmitter on the front
Drain position
Vertical pipe
Perpendicular bracket
Transmitter on the back
Drain position

Pipe mounting instruction

1. Fix the bracket in the defined position
on the pipe using the tool
adapter to guarantee the best
mechanical performances of the
assembly
2. Tight the nuts with the washers
below them in order to fix the bracket (the
torque value shall be 10 Nm - 12 Nm)
Fix the Pressure transmitter using the two
screws in the package; (the torque value
shall be 1 Nm ± 0.2 Nm)
and the
16
Installation
