In addition, consider the need for a testing or calibration input, and provide space for the housing cover to be
removed for electrical wiring and maintenance.
Process leaks may cause harm or result in death. Install and tighten process connectors and all accessories
In case of toxic or other dangerous process fluid, take all precautions as recommended in the relevant
Use only a 12 mm (15/32 ") hexagonal spanner to tighten the bracket bolts

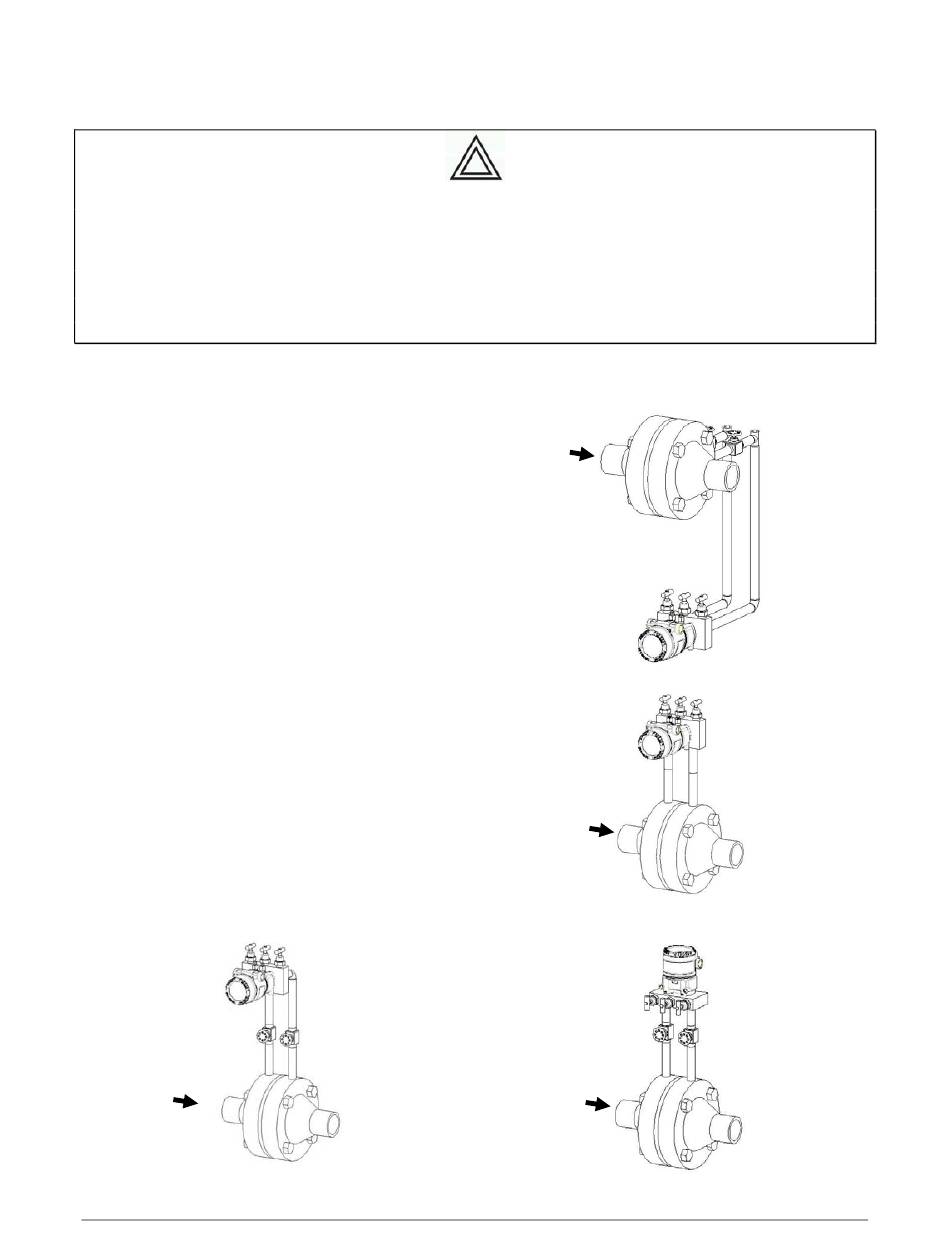

Application related recommendation

Flow measurement with clean liquids or steam
(condensable vapor)
1. Place taps to the side of the line.
2. Mount the drain/vent valve upward.
3. In case of steam application fill the vertical section
of the connecting lines with a compatible fluid
through the dedicated filling tees.
Flow measurement with gas or liquids with solids
in suspension
1. Place taps in the top of the line
2. Mount the transmitter above the taps
Flow
WARNING !
(including manifolds) before applying pressure.
Material Safety Data Sheet when draining or venting.
3-valve manifold
line from the
back of the
manifold
gate
valves
Flow
3-valve manifold
3-valve manifold
Flow
3-valve manifold
line from the
bottom of the
manifold
Flow
12
filling
tees
line from the
bottom of the
manifold
Installation
