364xS User's Manual
mbar millibar
2
g/cm grams per square centimeter
2
Kg/cm kilo grams per square centimeter
Pa pascal
kPa kilopascal
torr torr
atm atmosphere
MPa Megapascal
inH2O°C inches of water at 4 degrees Celsius
Digital LCD Integral Display Keys sequence to change the unit in the Transmitter: 2 – 1 – 2 – 1 – Edit

Set the Unit by CoMeter/ProMeter

Unit configuration by CoMeter/ProMeter is available with the 695 Field Indicator. Please refer to the device
manual for the appropriate operations.

Set the Unit configuration by HHT

Unit configuration by Hand Held Terminal is available. Please refer to the device manual for the appropriate
operations.

Set the Unit configuration by PC

Unit configuration by PC is available using dedicated Software. ABB can provide the references and the
Software. Please refer to the Software instructions for the appropriate operations.

Set the LRV

When a LRV different from the selected is needed it is possible to change it following one of the methods
described in the next paragraphs.

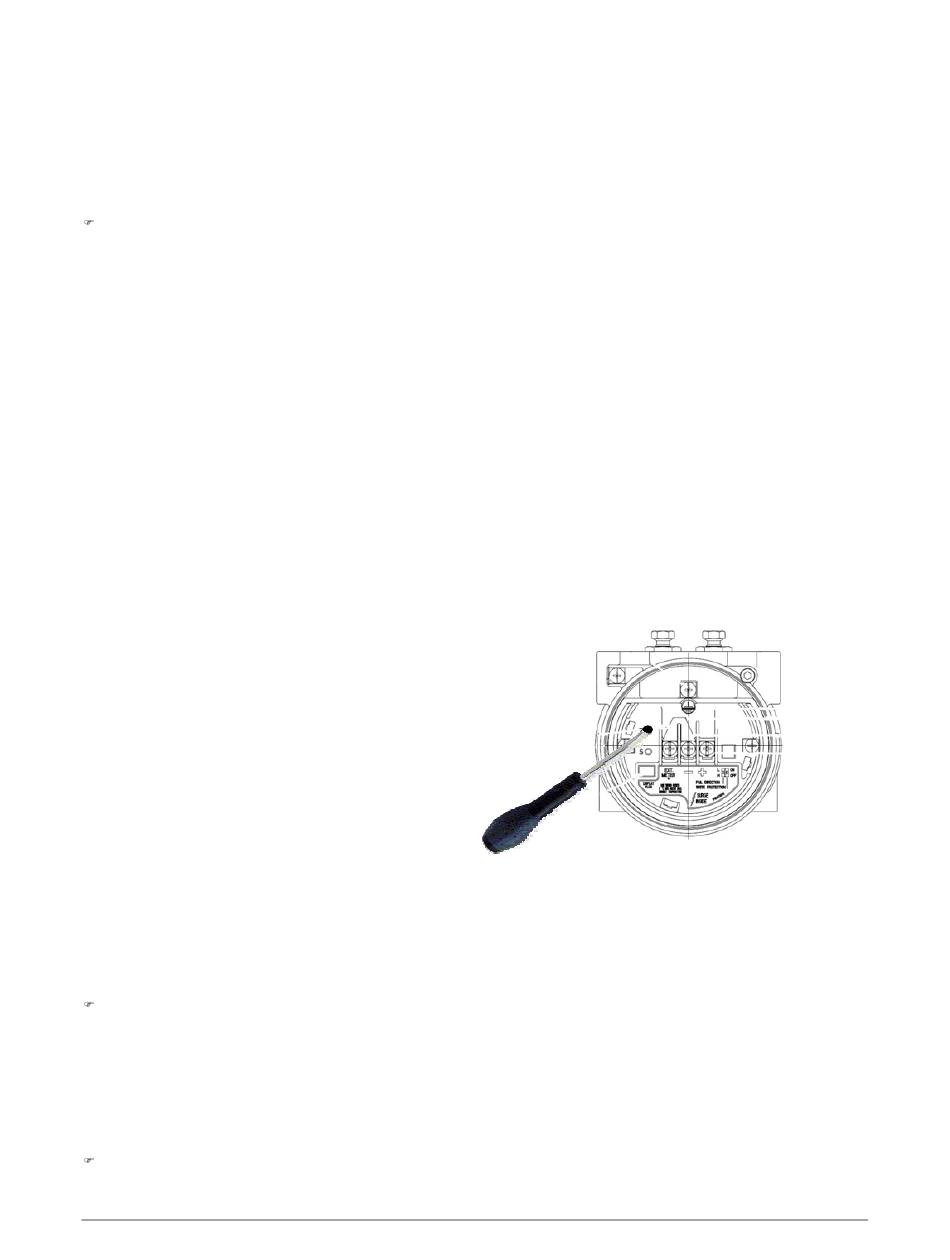

Set the LRV by Local Keys

Set the transmitter applied pressure as for Lower
Range Value (LRV). When the applied pressure
is stable push the Zero local adjustment key (Z)
located on the terminal block and release. After
this operation the reading shall move to 4 mA. If
no changes occur repeat the operation.

Set the LRV by Digital LCD Integral Display

To set the LRV reading of the Digital LCD Integral Display (the engineering units have to be selected):
Navigate the Digital LCD Integral Display menu, select
the Zero values will be available.
Select the desired value and confirm.
Digital LCD Integral Display Keys sequence to set the Display LRV : 3 – 7 – 2 - Edit
To set the Transmitter LRV without reference pressure:
Navigate the Digital LCD Integral Display menu, select
Set LRV, and the LRV values will be available. To modify select
in reverse color with the up and down keys and confirm with
and confirm with OK.
Note: the minimum and the maximum values to select are indicated on the display.
Digital LCD Integral Display Keys sequence to set the LRV wihout pressure: 2 – 1 – 2 – 2 – Edit
mmH2O°C millimeter of water at 4 degrees Celsius
inH2O°F inches of water at 68 degrees Fahrenheit (20°C)
inHg°C inches of mercury at 0 degrees Celsius
ftH2O°F feet of water at 68 degrees Fahrenheit (20°C)
mmH2O°F millimeter of water at 68 degrees Fahrenheit (20°C)
mmHg°C millimeter of mercury at 0 degrees Celsius
psi pounds per square inch
bar bars
Display > Display settings
Device Config > Rerange
Edit then scroll the desired value for the digit
Next. Repeat the operation for the seven digits
27
> Display LRV (0%), and
> Rerange no pressure >
Configuration
