OPTIONAL ACCESSORIES

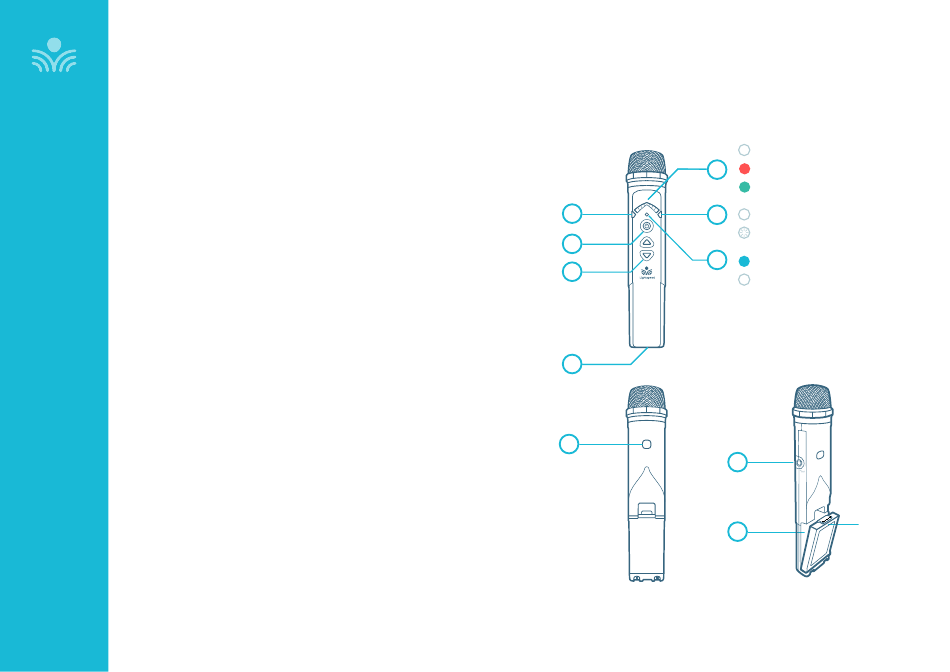

Sharemike Controls and Connections

POWER BUTTON
1.
POWER STATUS LIGHT
Solid red: During operation, turns red to indicate low battery
Solid white: Normal operation
When charging in Cradle Charger:
Solid red: Charging
Solid green: Charging complete
MIC 1 STATUS: Lighted to indicate microphone is registered as MIC 1
2.
Solid white: Normal operation
Flashing white: Linking in process
MIC 2 STATUS: Lighted to indicate microphone is registered as MIC 2
3.
Solid white: Normal operation
Flashing white: Linking in process
MUTE/TALK STATUS LIGHT
Solid blue: Talk
Solid white: Mute
MICROPHONE VOLUME UP/DOWN
4.
USB INPUT: Connect audio source to send to Topcat. USB input can
5.
also be used for charging.
IR TRANSMITTER: For pairing to base unit
6.
AUDIO INPUT: Plug a laptop or other audio device into this jack to
7.
wirelessly transmit the audio signal to be played through the system.
VOLUME LOCK: Disables volume controls.
8.
22
2
3
4
1
5
6
7
8
9
10
UNDER
BATTERY
PACK
NORMAL OPERATION
CHARGING IN PROGRESS
CHARGING COMPLETE
NORMAL OPERATION
LINKING IN PROGRESS (FLASHING)
TALK
MUTE
BATTERY
REMOVAL
LATCH
